Inspire FT2 - Step 8: Lat Beam

65
65
21
20

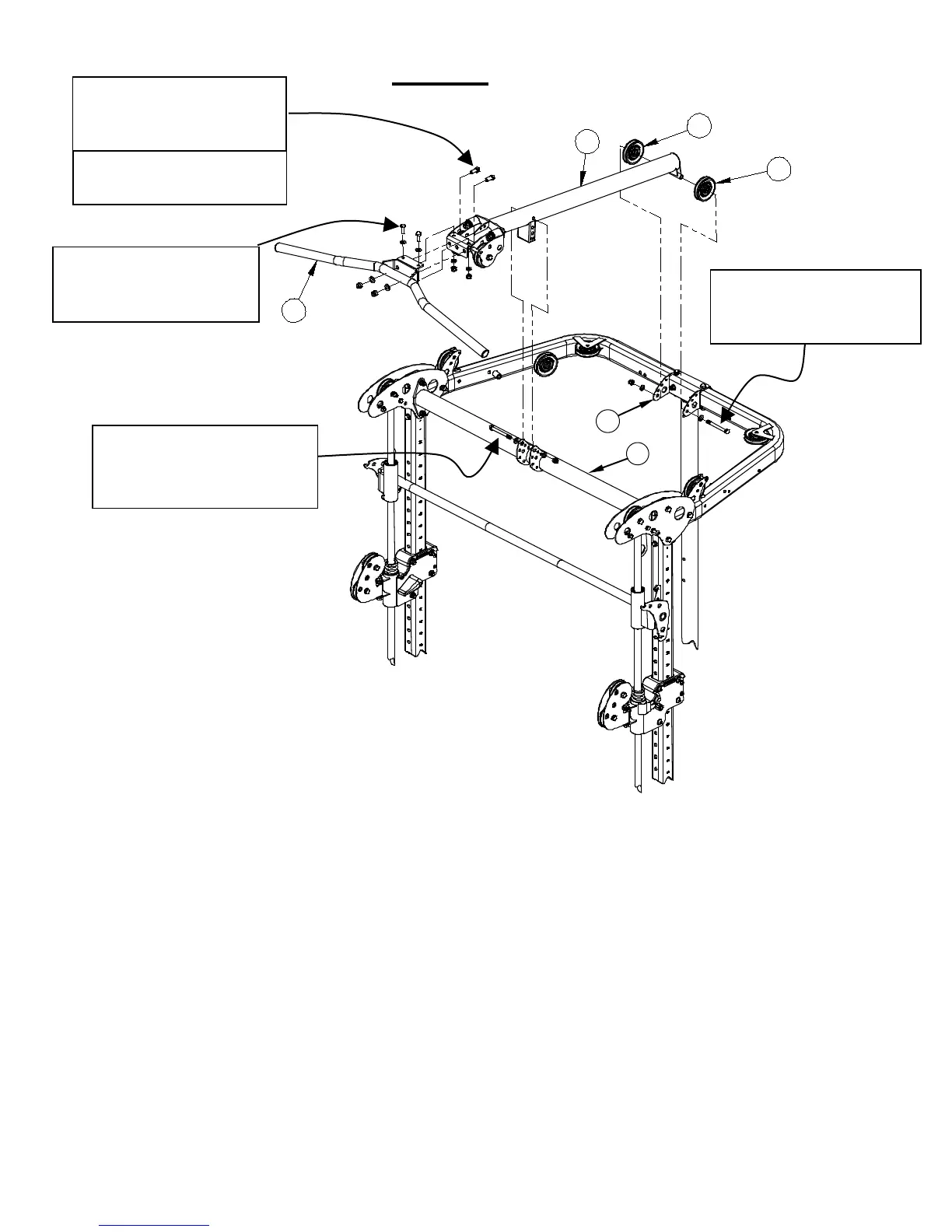

STEP 8
A) Attach the Lat Beam (20) to the Lat Beam Pivot (17) and 2 Pulleys (65) using 1-
M10x175 Hex bolt (87), 2- M10 Washers (97) and 1- M10 Lock nut (98).
B) Attach the Lat Beam (20) to the Front Cross Brace (14) using 1- M10x85 Hex bolt
(89), 2- M10 Washers (97) and 1- M10 Lock nut (98). Use the top slot hole in the
flanges and choose a hole in the Lat Beam tube that sets your preferred height of
the Pull-Up Bar (21).
C) Attach the Pull-Up Bar (21) to the Lat Beam (20) using 2- M12x30 Hex bolts (88)
inserted horizontally from the back, 2- M12 Washers (74) and 2- M12 Lock nuts
(93). Then use 2- M10x25 Hex bolts (86) inserted vertically from the top, 4- M10
Washers (97) and 2- M10 Lock nuts (98).
Tighten all the hardware at this time.
PAGE 13
2 – M10*25 Hex Bolt (86)
4 – M10 Flat Washers (97)
2 – M10 Locknuts (98)
2 – M12*30 Hex Bolt (88)
2 – M12 Flat Washers (74)
2 – M12 Locknuts (93)
1 – M10*175 Hex Bolt (87)
2 – M10 Flat Washers (97)
1 – M10 Locknut (98)
1 – M10*85 Hex Bolt (89)
2 – M10 Flat Washers (97)
1 – M10 Locknut (98)
Must install these M12
bolts from back to front
17
14
