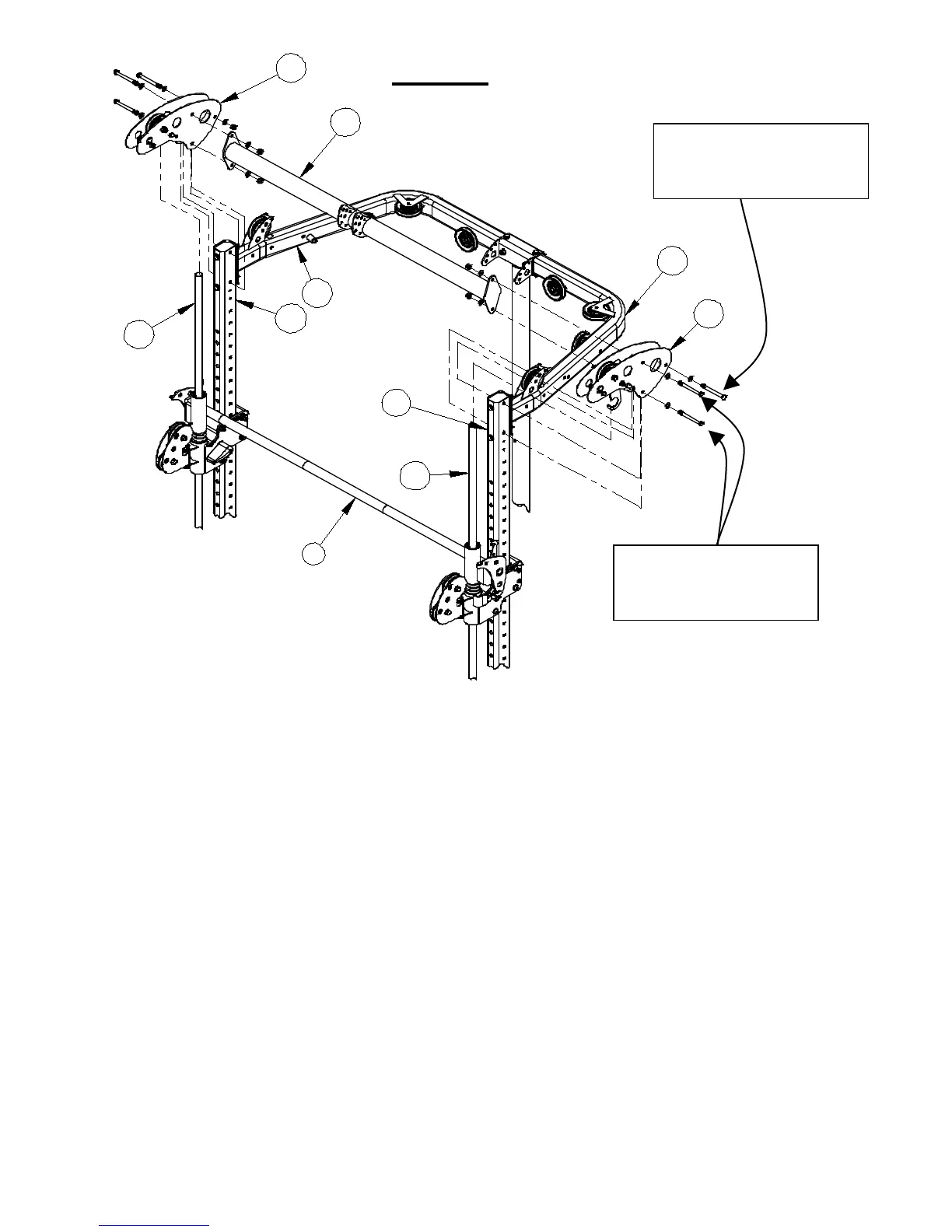

STEP 7 Top Beam Plate Assemblies
Note: The Left Top Beam Plate Assembly (18) (as in using the machine with your back
to it) has a Yellow Safety Latch preassembled to it.
A) Attach the Right and Left Top Beam Plate Assemblies (19 & 18) and the Front Cross Brace
(14) to the Front Uprights (4R & 4L) using 4- M10x75 Hex bolts (82), 8- M10 Washers (97)
and 4- M10 Lock nuts (98). Make sure the Yellow Safety Latch is inside and the 2
preassembled latch bolts stick to the outside on the Top Beam Plate Assemblies (19
& 18). Next attach the Top Beam Plate Assemblies to the Right and Left Top Beams (15 &
16) using 2- M10x70 Hex bolts (81), 4- M10 Washers (97) and 2- M10 Lock nuts (98).
B) Next, lower the Weight Bar (7) to the lowest position by twisting the Weight Bar (7)
and unlatching the Sliders to go down. Twist the Weight Bar (7) to make sure it
rotates freely. If it does not rotate freely, adjust the bottom of the Front Uprights
(4R & 4L) in or out on each Main Base (1 & 2) until it rotates freely. Step on the
Main Base tube and tap the lowest part of the Front Upright with a rubber mallet to
adjust it. Tighten the lower Front Upright (4R & 4L) bolts from Step 2.
C) Now, raise the Weight bar (7) to the top latch bolts on the outside Top Beam Plate
Assemblies (19 & 18) and lock it in place by twisting the Weight Bar hook onto the
latch bolts. Swivel the Yellow Safety Latch around the Weight Bar (7). Tighten the
bolts from Step 6 and 7 now.
PAGE 12
4 – M10*75 Hex Bolt (82)
8 – M10 Flat Washer (97)
4 – M10 Locknut (98)
2 – M10*70 Hex Bolt (81)
4 – M10 Flat Washer (97)
2 – M10 Locknut (98)
