STEP 11 Lower Cable

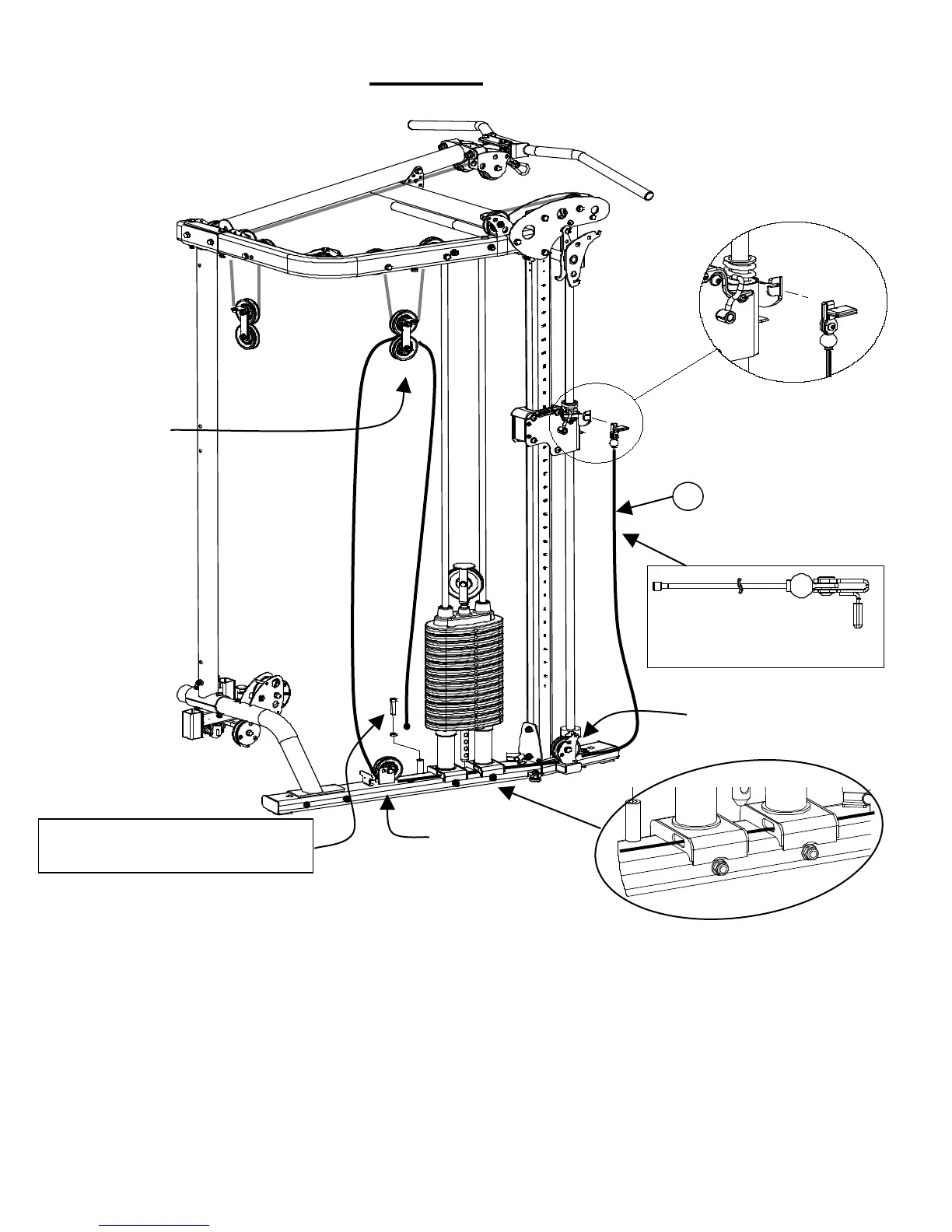

A) Route the Lower Cable (32) starting with the small swage end without the red tab. Slide
cable under Pulley 14 from front to back and under the Weight Stack Riser slots as shown, to
Pulley 15, go under and up over floating Pulley 16 (Make sure the tab on the floating
pulley bracket is sticking towards the outside of the machine), then down to the
threaded riser in the base. Slide the cable into the slot of the Slotted Cable Adjustment Bolt
(37) so that the swage is at the bottom of the bolt. Thread the Flange Nut (45) onto the
Slotted Cable Adjustment Bolt (37) and thread the bolt into the threaded riser on the base at
least 5 full turns. Tighten the Jam nut down to the threaded riser at this time. This
Cable end is used to adjust the cable assembly in step 12.
B) Place the opposite cable end with the red tab over the hook on the carriage as shown.
C) Repeat this step on the other side of the machine.
PAGE 17
Pulley 14
Pulley 15
Pulley 16
1 - M12 Cable Adjustment Bolt (37)
1 - M12 Flange Nut (45)
Lower Cable # 695-500-001
32
