Inspire LEG PRESS 2 OPTION User Manual

1 – 3 ½” Pulley 1 – 3 ½” Pulley
1 – 2” Hex Bolt 1 – 2” Hex Bolt
2 – 3/8” Flat Washers 2 – 3/8” Flat Washers
1 – 3/8” Lock Nut 1 – 3/8” Lock Nut
1 – 2” Hex Bolt
2 – 3/8” Flat Washers
1 – 3/8” Lock Nut
1 – 2” Hex Bolt
2 – 3/8” Flat Washers
1 – 3/8” Lock Nut
Step 4: Attach Pulley 8 to Attachment Arm using:
One (3 ½” Pulley)
One (3/8” x 2” Hex Bolt)
Two (3/8” Flat Washers) One (3/8” Lock Nut)
Step 5: Attach Pulley 9 to Floating Dual Pulley Bracket using:
One (3 ½” Pulley)
One (3/8” x 2” Hex Bolt)
Two (3/8” Flat Washers) One (3/8” Lock Nut)
Step 6: Thread Home Gym Lower Cable around Pulleys 8 & 9 and attach cable eyelet end to
Attachment Arm (bottom hole) using:
One (3/8” x 2” Hex Bolt) Two (3/8” Flat Washers)
One (3/8” Lock Nut)
Step 7: Attach Retainer Bolt to Attachment Arm using:
One (3/8” x 2” Hex Bolt) Two (3/8” Flat Washers)
One (3/8” Lock Nut)
(Wrench Tighten Bolts in Steps 4-7 Now)
(Make sure that the cable is routed between pulley 8 and the cable retainer bolt.)
Assembly Steps are continued on page 15
Page 8

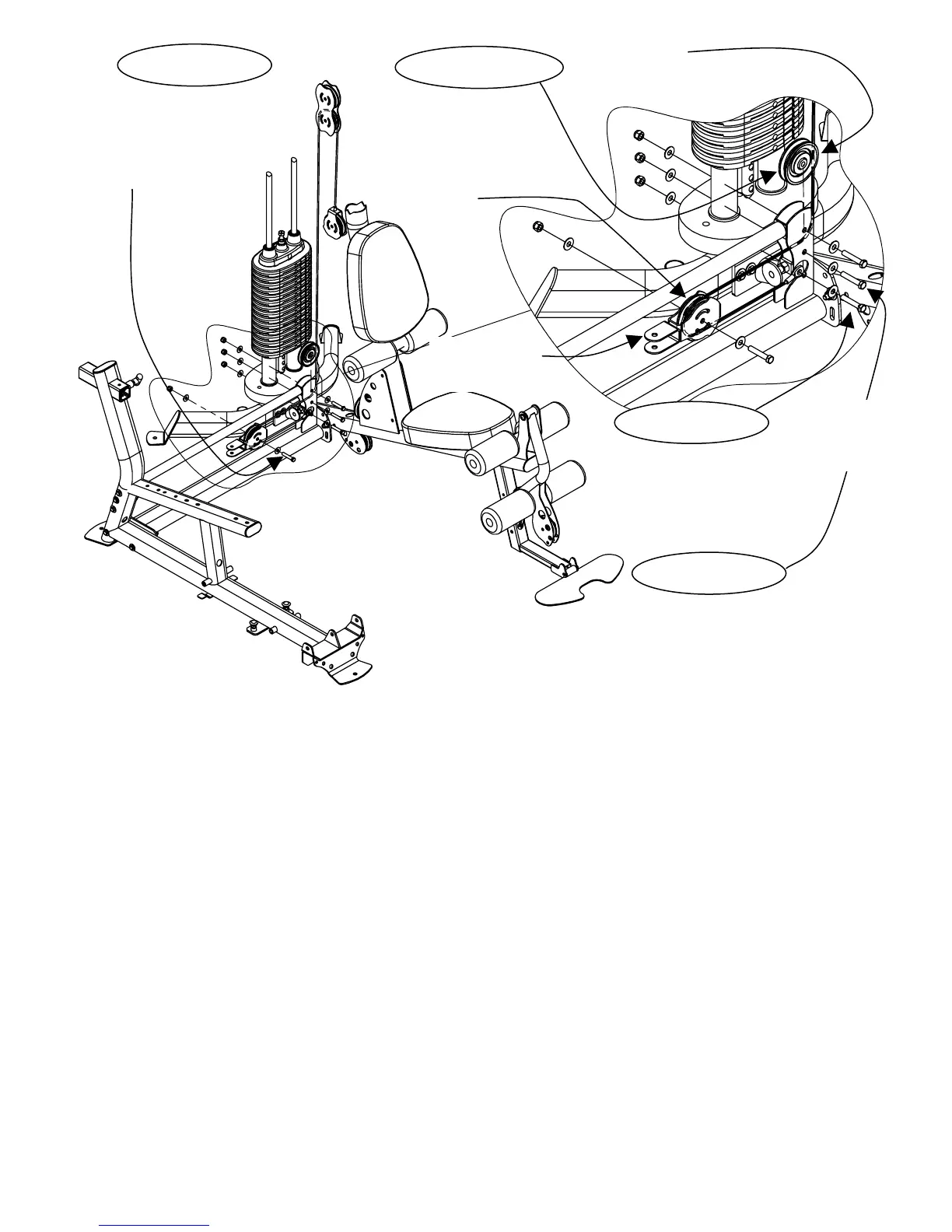

STEP 5
STEP 4
Pulley-9
Pulley-8
STEP 7
STEP 6
Cable
Retainer
Bolt
Floating Dual
Pulley Bracket
