Inspire LEG PRESS OPTION User Manual

Home Gym Lower Cable
1 – 3 ½” Pulley
1 – 2” Hex Bolt
2 – 3/8” Flat Washers
1 – 3/8” Lock Nut
Pulley 4
1 – 3 ½” Pulley
1 – 2” Hex Bolts
2 – 3/8” Flat Washers
1 – 3/8” Lock Nuts
Pulley 5 1 – 2” Hex Bolt
2 – 3/8” Washers
1 – 3/8” Lock Nut
1 – 2” Hex Bolt
2 – 3/8” Flat Washers
1 – 3/8” Lock Nut
Step 11: Attach Pulley 4 to Attachment Arm using: One (3 ½” Pulley)
(Wrench Tighten Bolt) One (2” Hex Bolt)
Two (3/8” Flat Washers)
One (3/8” Lock Nut)
Step 12: Attach Pulley 5 to Floating Pulley Bracket Assy using:
(Wrench Tighten Bolt) One (3 ½” Pulley)
One (2” Hex Bolt)
Two (3/8” Flat Washers)
One (3/8” Lock Nut)
Step 13: Thread Home Gym Lower Cable around Pulleys 4 & 5 as
shown in diagram and attach to Leg Press using: One (2” Hex Bolt)
(Wrench Tighten Bolt) Two (3/8” Flat Washers)
One (3/8” Lock Nut)
Step 14: Attach Retainer Bolt to Attachment Arm using: One (2” Hex Bolt)
(Wrench Tighten Bolt) Two (3/8” Flat Washers)
(Make sure that the cable is routed between pulley 4 and the One (3/8” Lock Nut)
cable retainer bolt.)
Page 8

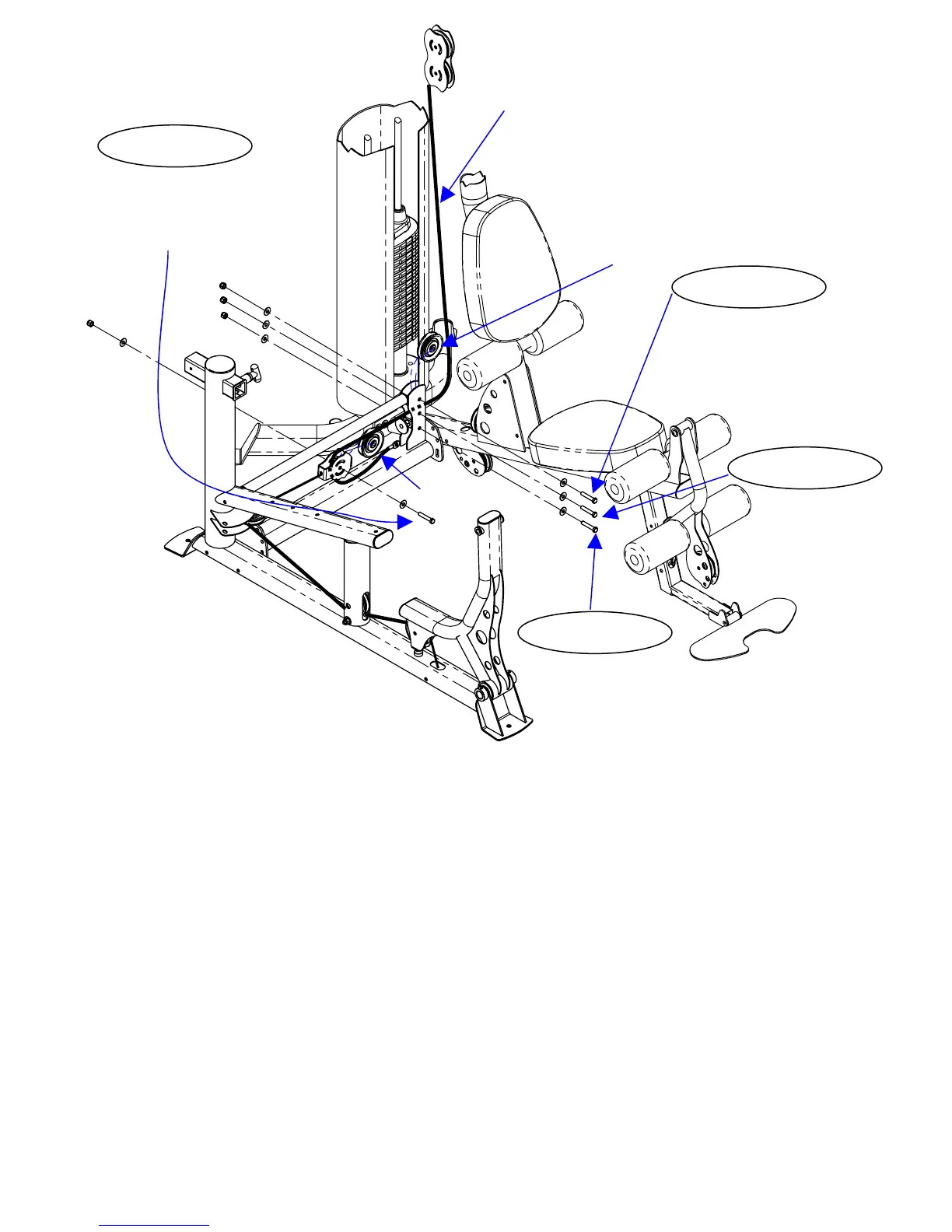

STEP 11
STEP 12
STEP 13
STEP 14
