STEP 1
STEP 2
STEP 3

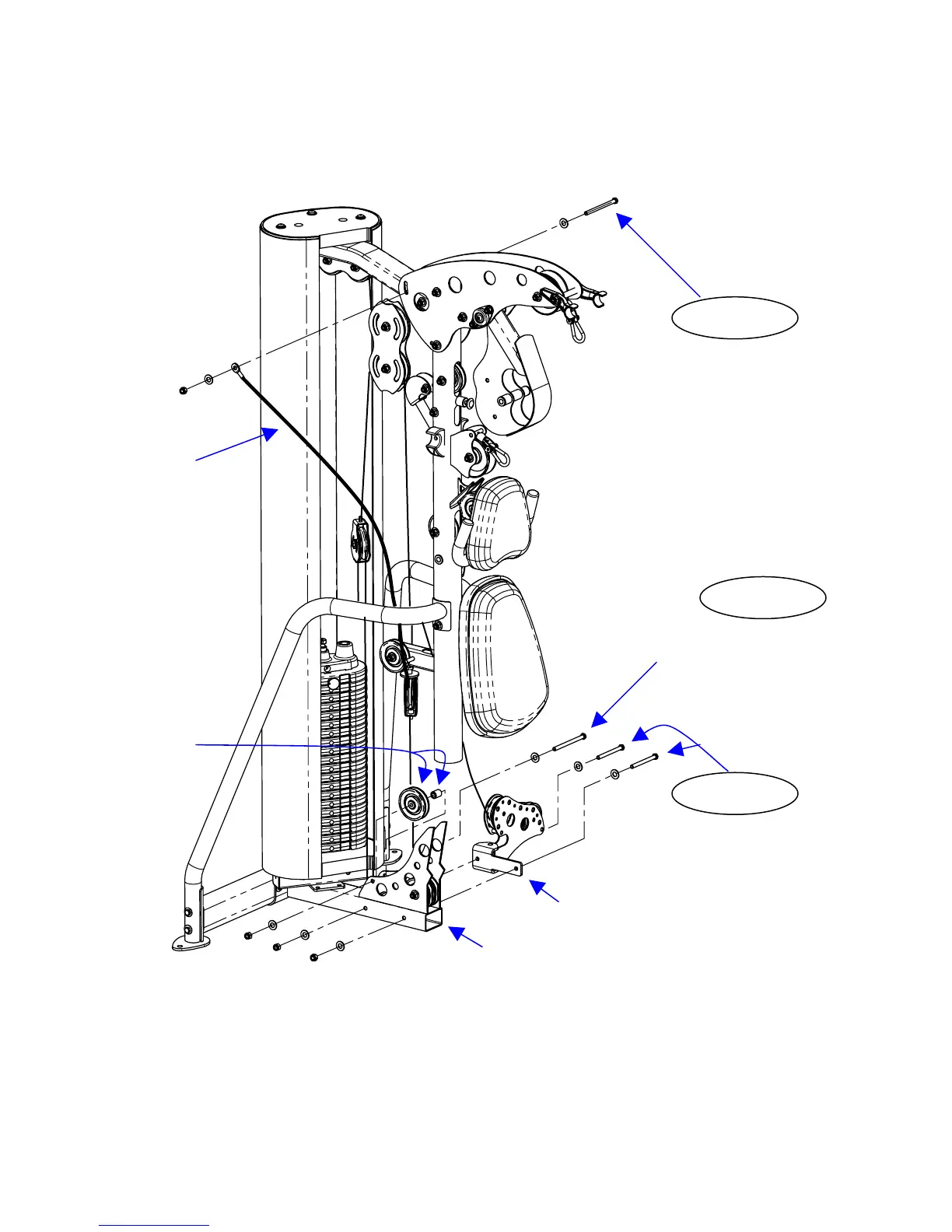

Assembly Procedure for Attaching Leg Press to M3
NOTE: The Leg Press may be attached to either side of the machine.
The picture shows only one side.
Disconnect Middle Cable
Middle Cable
Remove Pulley 1 & 1” Barrel Spacer
From M3 Base Frame
Pulley 1 &
1” Barrel Spacer
Remove the Swivel Pulley
Bracket from M3 Base Frame
Swivel Pulley Bracket
M3 Main Upright
Step 1: Remove the Swivel Pulley Bracket from the M3 Main Upright. Leave the cable
connected to the Swivel Pulley. Save Washers and Locknuts for later use.
Step 2: Remove Pulley 1 and 1” Long Barrel Spacer from M3 Main Upright.
Save Parts for later use.
Step 3: Disconnect the Middle Cable from the Main Upright. Re-install Bolt, Washers, and
Locknut. Wrench tighten bolt.
Page 11
