Orthopedic Pad
Seat Base
Assembled
Back & Seat Pad

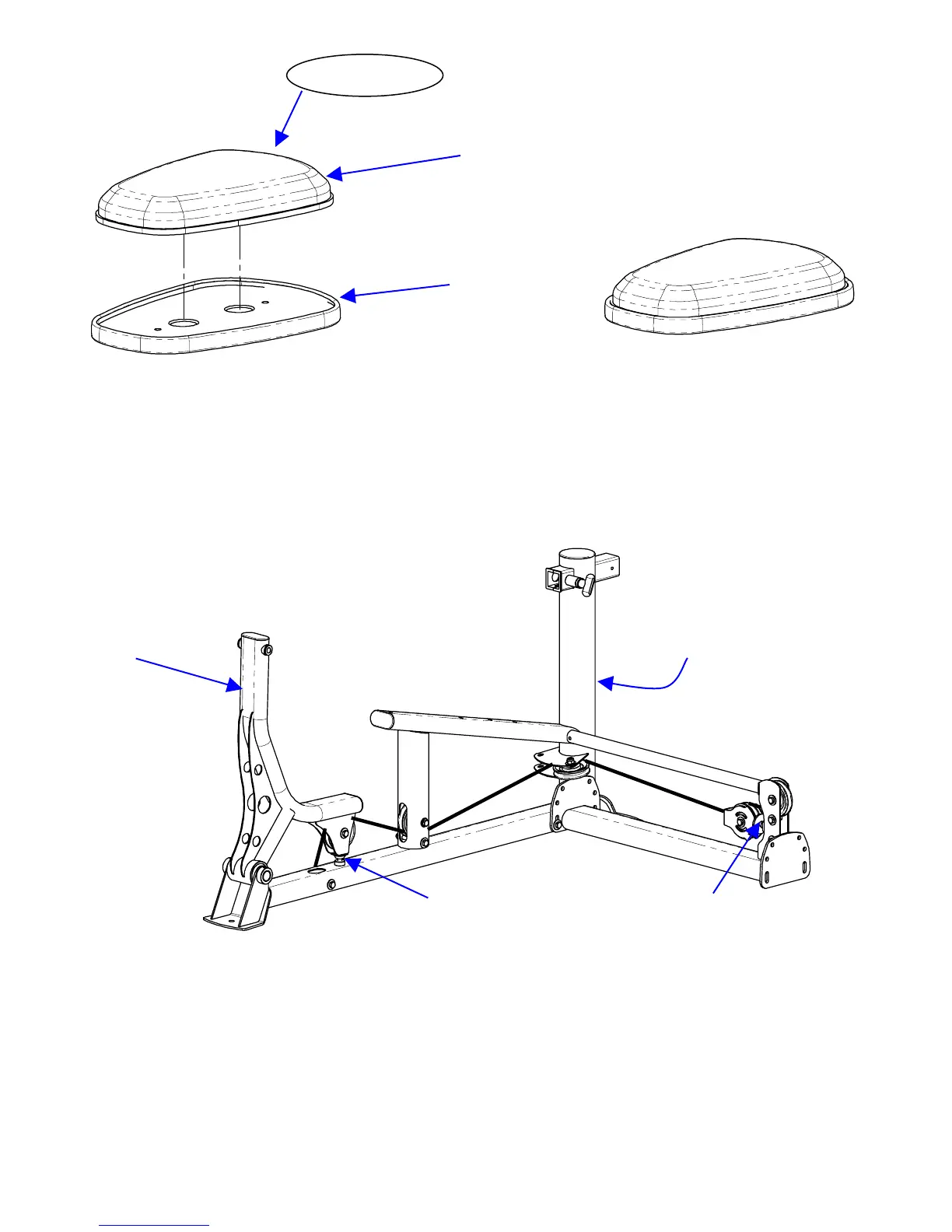

Step 15: Place Orthopedic Pad on Seat Base. Work the edge of pad into the groove
of the Seat Base on all sides. Do not use sharp objects during
installation.
Press Arm Leg Press Base
Press Arm Floating Pulley
Jam Nut Jam Nut
Step 16:
Cable Adjustment
Thread the press arm stop so that there is one inch between the Press Arm and the Leg
Press Base, as shown in the diagram. Tighten the Jam Nut. Next thread the floating
pulley stop out until it contacts the floating pulley as shown in the diagram. Tighten jam
nuts on the floating pulley stop. After first weeks use and as needed, adjust cable slack
by alternately adjusting the floating pulley stop and press arm stop.
Page 9
STEP 15
To Next Page
