Middle Cable
Pulley 5
1 – 3 ½” Pulley
1 – 2” Hex Bolt
2 – 3/8” Flat Washers
1 – 3/8” Lock Nuts
Pulley 6
1 – 3 ½” Pulley
1 – 2” Hex Bolt 1 – 2” Hex Bolt 1 – 2” Hex Bolt
2 – 3/8” Flat Washers 2 – 3/8” Flat Washers 2 – 3/8” Flat Washers
1 – 3/8” Lock Nut 1 – 3/8” Lock Nut 1 – 3/8” Lock Nut
Step 14: Attach Pulley 5 to Attachment Arm using: One (3 ½” Pulley)
(Wrench Tighten Bolt) One (2” Hex Bolt)
Two (3/8” Flat Washers)
One (3/8” Lock Nut)
Step 15: Attach Pulley 6 to Floating Pulley Bracket Assy using: One (3 ½” Pulley)
(Wrench Tighten Bolt) One (2” Hex Bolt)
Two (3/8” Flat Washers)
One (3/8” Lock Nut)
Step 16: Thread Middle Cable around Pulleys 5 & 6 as shown in
Diagram and attach to Leg Press using: One (2” Hex Bolt)
(Wrench Tighten Bolt) Two (3/8” Flat Washers)
One (3/8” Lock Nut)
Step 17: Attach Retainer Bolt to Attachment Arm using: One (2” Hex Bolt)
(Wrench Tighten Bolt) Two (3/8” Flat Washers)
One (3/8” Lock Nut)
(Make sure that the cable is routed between pulley 5 and the cable retainer bolt.)
Page 14

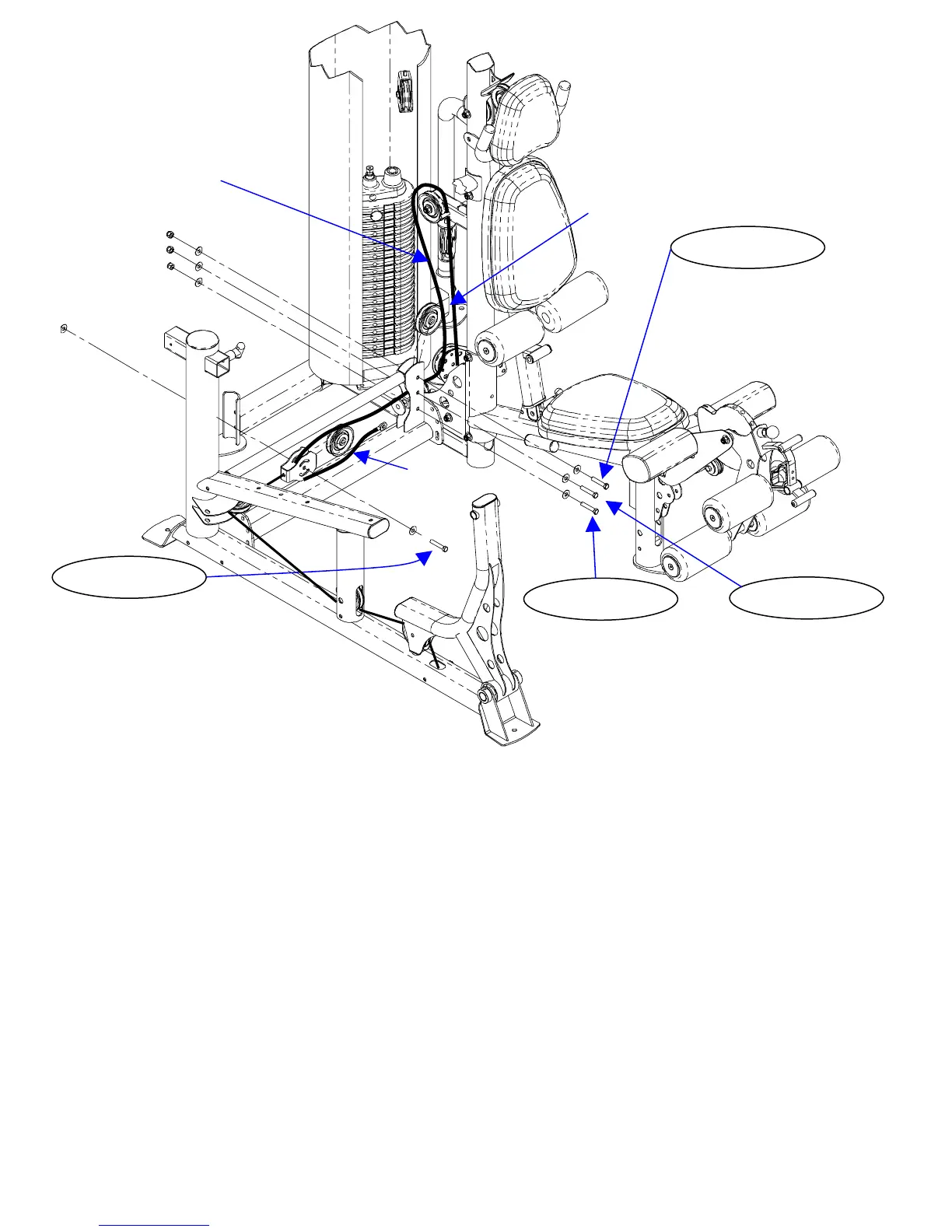

STEP 14
STEP 15
STEP 16
STEP 17
To Next Page
