Orthopedic Pad
Seat Base
Assembled
Back & Seat Pad

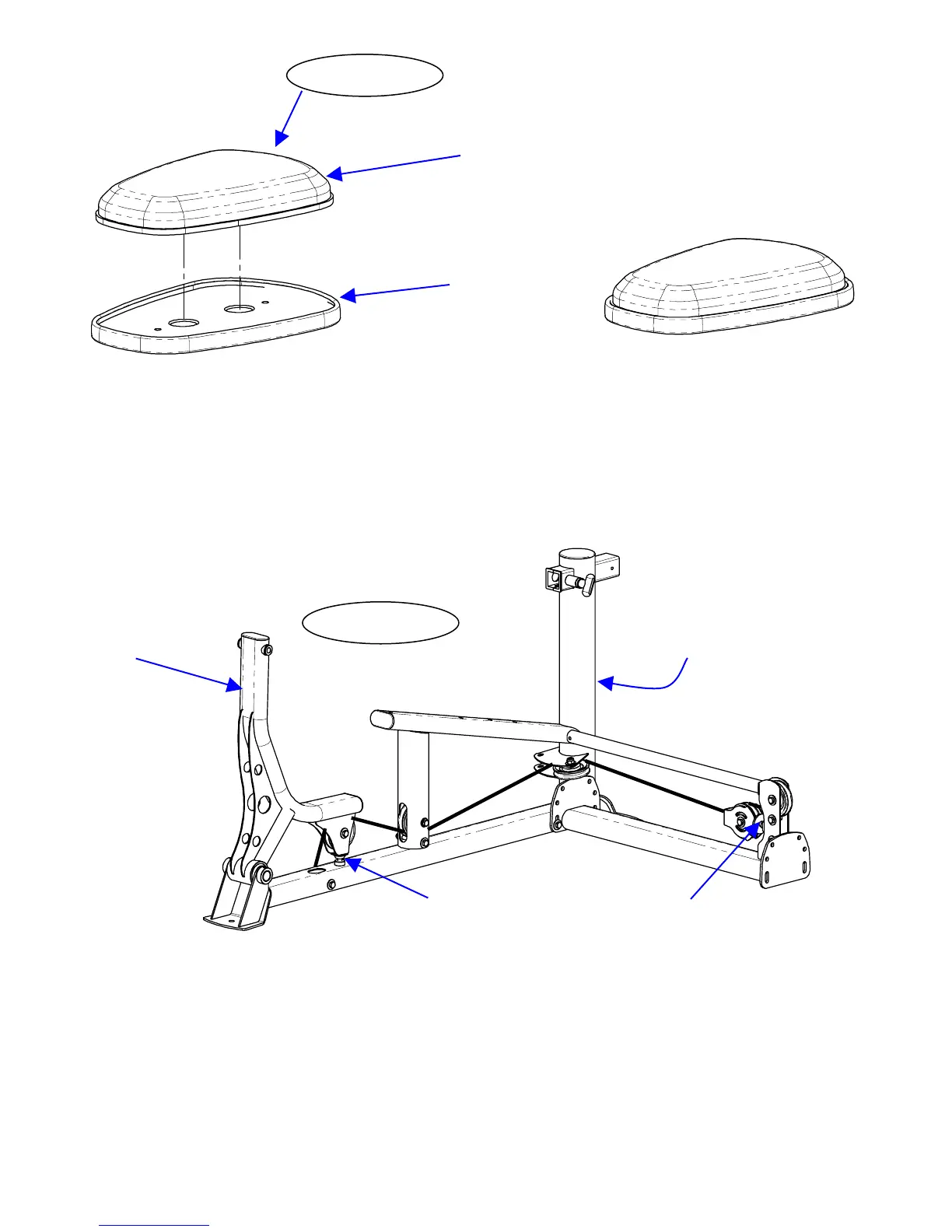

Step 18: Place Orthopedic Pad on Seat Base. Work the edge of pad into the groove
of the Seat Base on all sides. Do not use sharp objects during
installation.
Press Arm Leg Press Base
Press Arm Floating Pulley
Stop Stop
Step 19:
Cable Adjustment
Thread the press arm stop outward until cable is taut. Tighten the Jam Nut. Next thread
the floating pulley stop outward until it contacts the floating pulley as shown in the
diagram. Tighten jam nut on the floating pulley stop. After first weeks use and as
needed, adjust cable slack by alternately adjusting the floating pulley stop and press arm
stop.
Page 15
STEP 18
STEP 19
To Next Page
