Inspire LEG PRESS OPTION User Manual

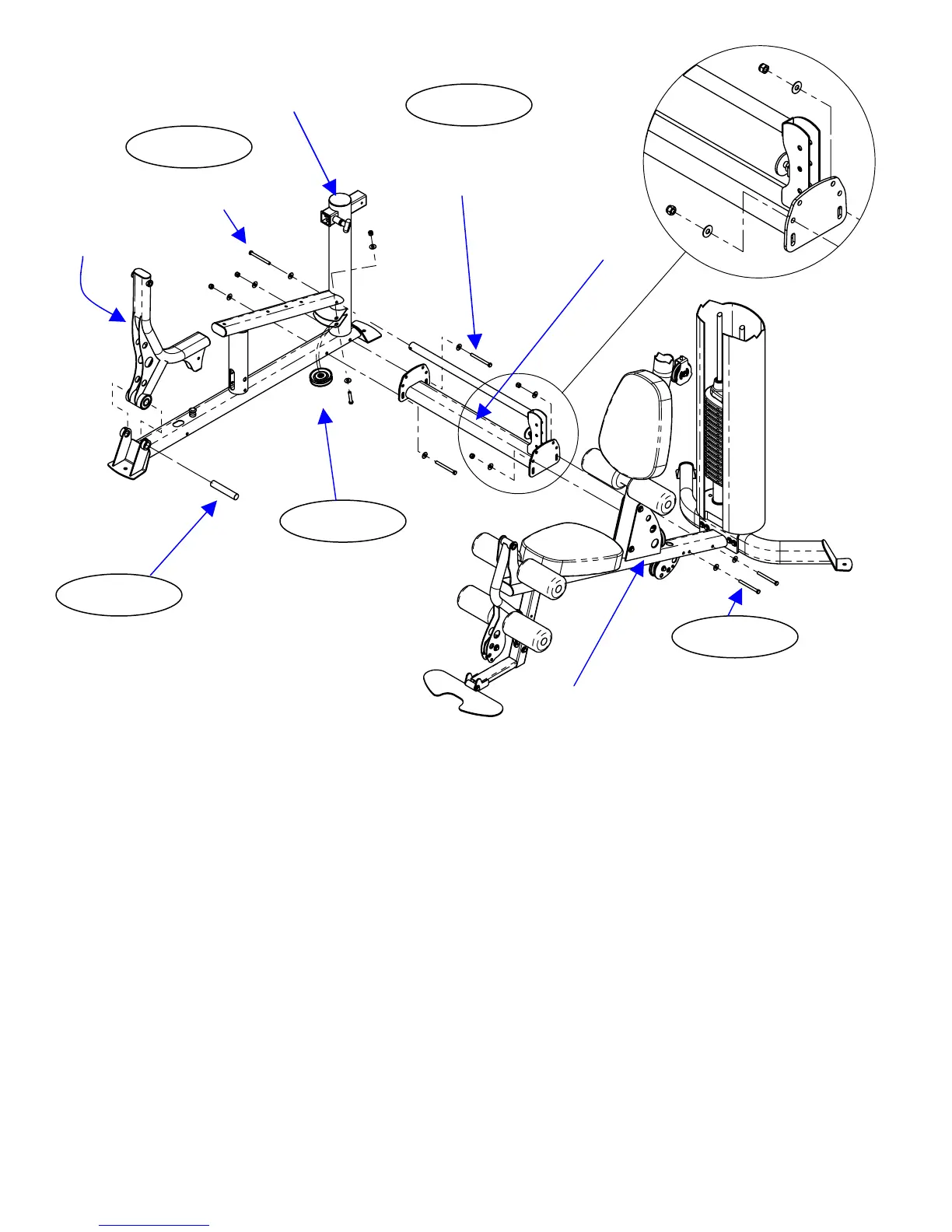

STEP 5
Leg Press Base
2 – 5” Hex Bolts
4 – 3/8” Flat Washers
1 – 4 ¼” Hex Bolt 2 – 3/8” Lock Nuts
1 – 3/8” Flat Washer
Press Arm Attachment Arm
Pulley 1
1 – 3 ½” Pulley
1 – 2” Hex Bolt
2 – 3/8” Flat Washers
1 – Pivot Shaft 1 – 3/8” Lock Nut
2 – 5” Hex Bolts
Home Gym 4 – 3/8” Flat Washers
2 – 3/8” Lock Nuts
Step 2: Attach Pulley 1 to Leg Press Base using: One (3 ½” Pulley)
(Wrench Tighten) One (2” Hex Bolt)
Two (3/8” Flat Washers)
One (3/8” Lock Nut)
Step 3: Secure Attachment Arm to Home Gym using: Two (5” Hex Bolts)
(Finger Tighten Only) Four (3/8” Flat Washers)
Two (3/8” Lock Nuts)
Step 4: Secure Attachment Arm to Leg Press Base using: Two (5” Hex Bolts)
(Finger Tighten Only) Four (3/8” Flat Washers)
Two (3/8” Lock Nuts)
Step 5: Secure tubular portion of Attachment Arm to
Leg Press Base using: One (4 ¼” Hex Bolt)
(Wrench Tighten bolts in steps, 3, 4, & 5 Now) One (3/8” Flat Washer)
Step 6: Attach Press Arm to Leg Press Base using: One (Pivot Shaft)
(Tighten Allen Screws using 4mm Allen Wrench Included)
Page 6
STEP 3
STEP 4
STEP 2
STEP 6
