Inspire M2 - Page 14

Press Arm Bearings
Use Small OD Washers on the
Outside of the Press Arm Bearings
4 – 1” Hex Bolts
4 – 3/8” Small OD
Washers
4 – 3/8” Flat Washers
4 – 3/8” Lock Nuts
2 – ½” Button Head Bolts
2 – 3/8” Flat Washers
Press Arm Mount

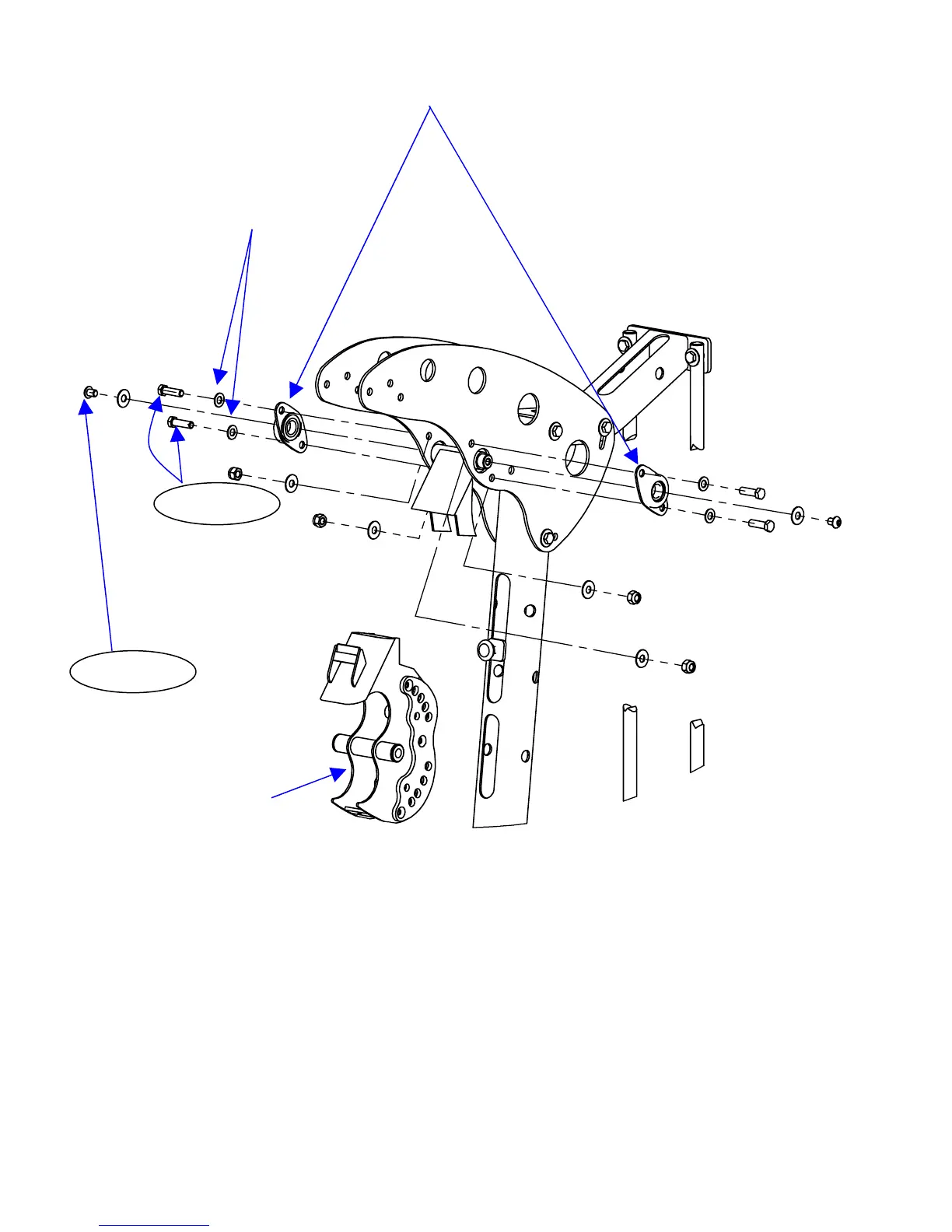

Step 8: Attach Press Arm Bearings to Top Beam Plates using:
Note: Finger Tighten Only Four (1" Hex Bolts)
Four (3/8” Small OD Washers)
Four (3/8” Flat Washers)
Four (3/8” Lock Nuts)
Step 9: Attach Press Arm Mount to Press Arm Bearings Using:
Note: Finger Tighten Only Two (1/2” Button Head Bolts)
Two (3/8” Flat Washers)
Page 11
STEP 8
STEP 9
