Inspire M2 - Page 15

Install Four Pulleys
PULLEY 1
1 - 3 ¾” Hex Bolt
2 - 1” Step Spacers
1 - 3/8” Lock Nut 4 ½” Pulley
1 - 2” Hex Bolt
2 - 3/8” Flat Washers
1 - 3/8” Lock Nut
PULLEY 2
3 ½” Pulleys
PULLEY 3
PULLEY 4
2 - 3 ¾” Hex Bolts
4 - 1” Step Spacers
2 - 3/8” Lock Nuts

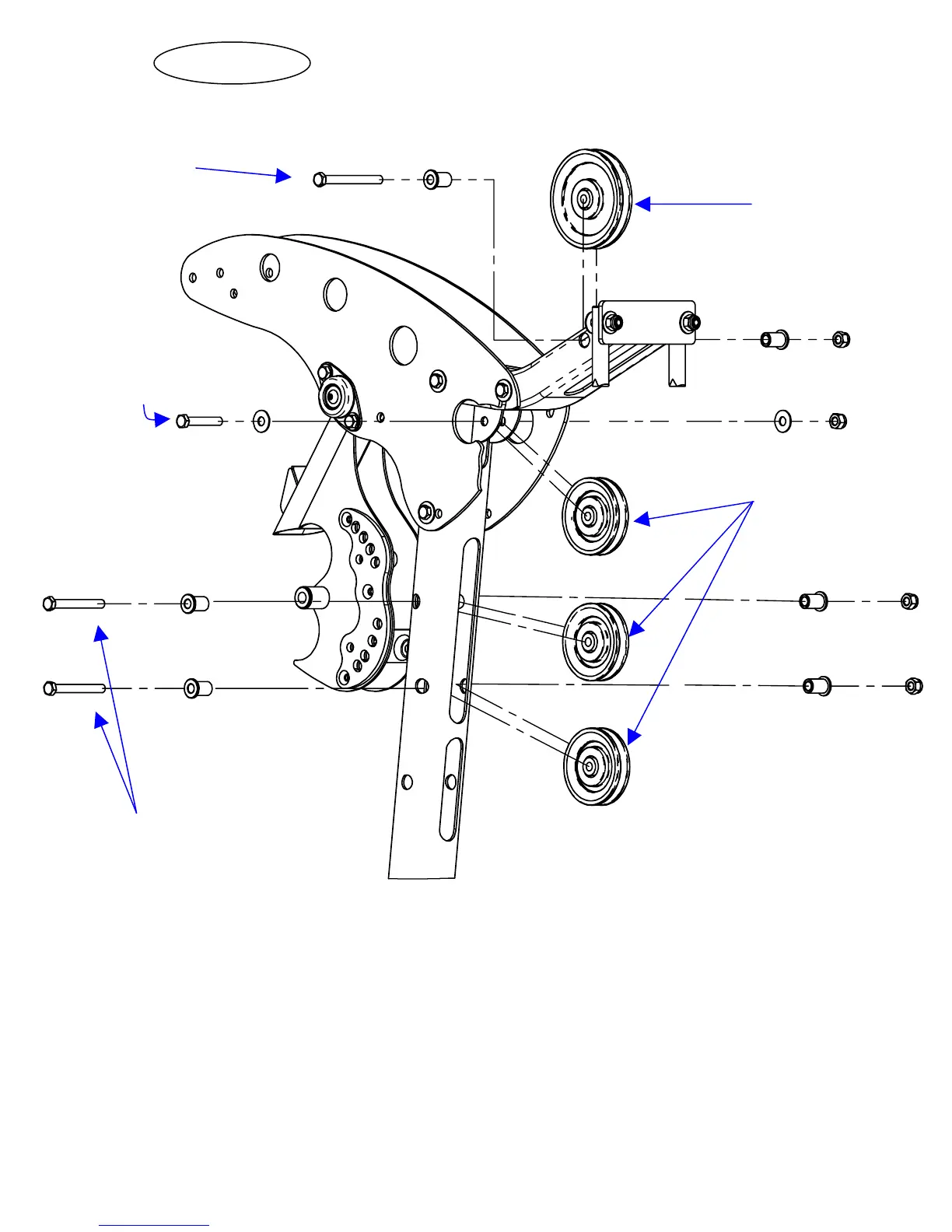

Step 10: Attach Pulley 1 to Main Upright using: One (4 ½” Pulley)
One (3 ¾” Hex Bolt)
Two (1” Step Spacers)
One (3/8” Lock Nut)
Attach Pulley 2 to Main Upright using: One (3 ½” Pulley)
One (2” Hex Bolt)
Two (3/8” Flat Washers)
One (3/8” Lock Nut)
Attach Pulleys 3 & 4 to Main Upright using: Two (3 ½” Pulleys)
Two (3 ¾” Hex Bolts)
Four (1” Step Spacers)
Page 12 Two (3/8” Lock Nuts)
STEP 10
