Inspire M2 - Page 17

Install Six Pulleys &
One Cable Retaining Bolt
TIGHTEN THESE BOLTS NOW
1 – 4 ½” Pulley
1 – 3 ¾” Hex Bolt
PULLEY 7 2 – 1” Step Spacers
1 – 3/8” Lock Nut
1 – 3 ½” Pulley
1 – 2” Hex Bolt
2 – 3/8” Flat Washers
1 – 3/8” Lock Nut 1 – 3 ½” Pulley
1 – 1 ¾” Hex Bolt
2 – 3/8” Flat Washers
1 – 3/8” Lock Nut
PULLEY 12
PULLEY 8
PULLEY 9
PULLEY 10
NOTE: If you purchased leg press option,
refer to leg press owners
PULLEY 11 manual before attaching pulley 11
CABLE RETAINING BOLT
1 – 2 ¾” Hex Bolt 1 – 3 ½” Pulley 1 – 3 ½” Pulley 1 – 3 ½” Pulley
2 – 3/8” Flat Washers 1 – 2 ¾” Hex Bolt 1 – 2” Hex Bolt 1 – 5 ¾” Hex Bolt
1 – 3/8” Lock Nut 2 – ½” Step Spacers 2 – 3/8” Flat Washers 2 – 3/8” Flat Washers
1 – 3/8” Lock Nut 1 – 3/8” Lock Nut 1 – 3/8” Lock Nut

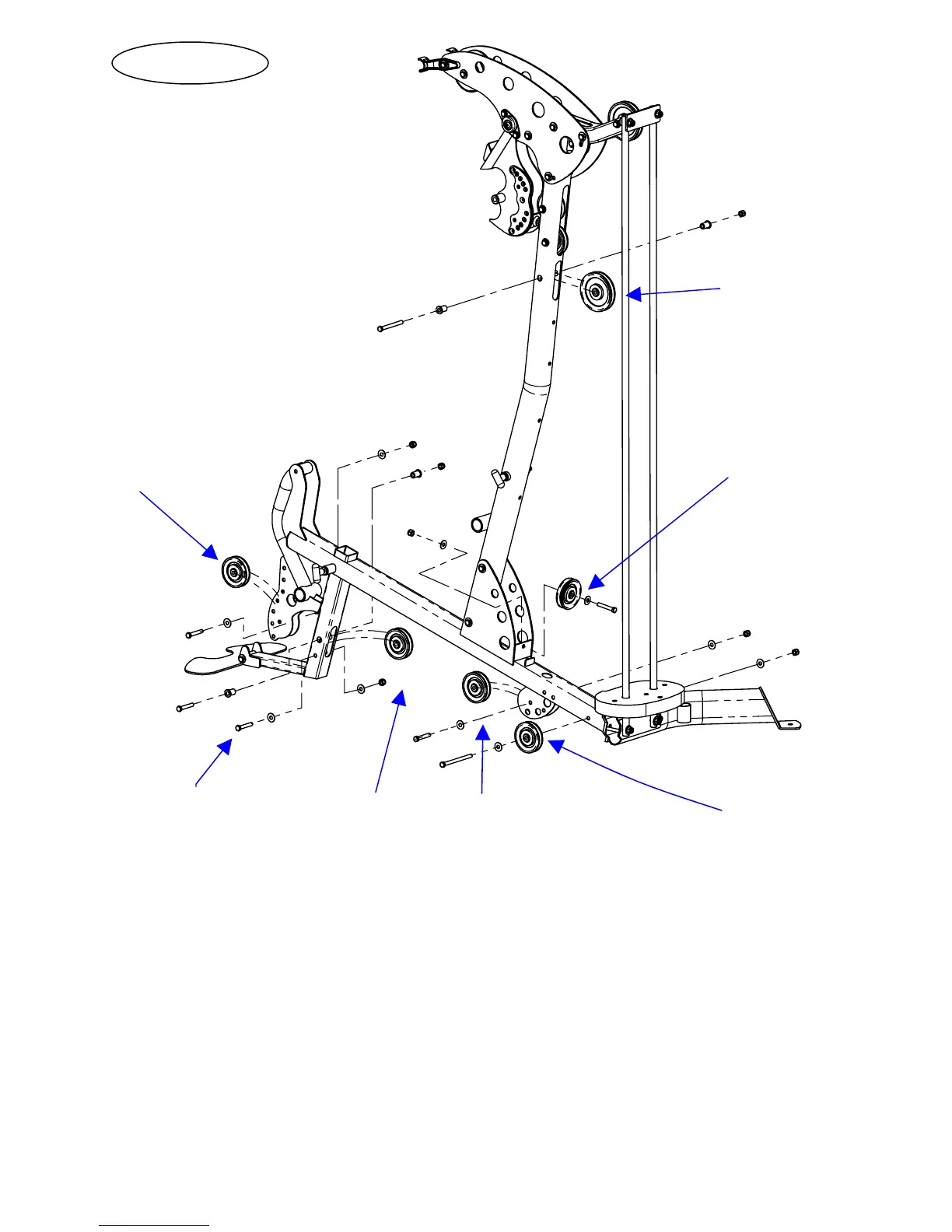

Step 14:
Attach Pulley 7 using: One (3 ¾” Hex Bolt) Attach Pulley 10 using: One (2” Hex Bolt)
Two (1” Step Spacers) Two (3/8” Flat Washers)
One (3/8” Lock Nut) One (3/8” Lock Nut)
Attach Pulley 8 using: One (2” Hex Bolt) Attach Pulley 11 using: One (5 ¾” Hex Bolt)
Two (3/8” Flat Washers) Two (3/8” Flat Washers)
One (3/8” Lock Nut) One (3/8” Lock Nut)
Attach Pulley 9 using: One (2 ¾” Hex Bolt) Attach Pulley 12 using: One (1 ¾” Hex Bolt)
Two (½” Step Spacers) Two (3/8” Flat Washers)
One (3/8” Lock Nut) One (3/8” Lock Nut)
Attach Cable Retaining Bolt using: One (2 ¾” Hex Bolt)
Two (3/8” Flat Washers)
Page 14 One (3/8” Lock Nut)
STEP 14
