NOTE: Once Assembled, slide rubber
washer against plastic ball
1 – Plastic Ball
1 – Cable “U” Bracket
1 – 1 ¼ “ Shoulder Bolt
1 – Spring Clip
1 – 5/16” Lock Nut
Pulley 13 NOTE: CABLE GOES INSIDE FRAME TUBE
Press Arm Mount
2 – 3 ½” Pulleys Pulley 14
2 – 3” Hex Bolts
4 – 3/8” Flat Washers
2 – 3/8” Lock Nuts
Step 15:

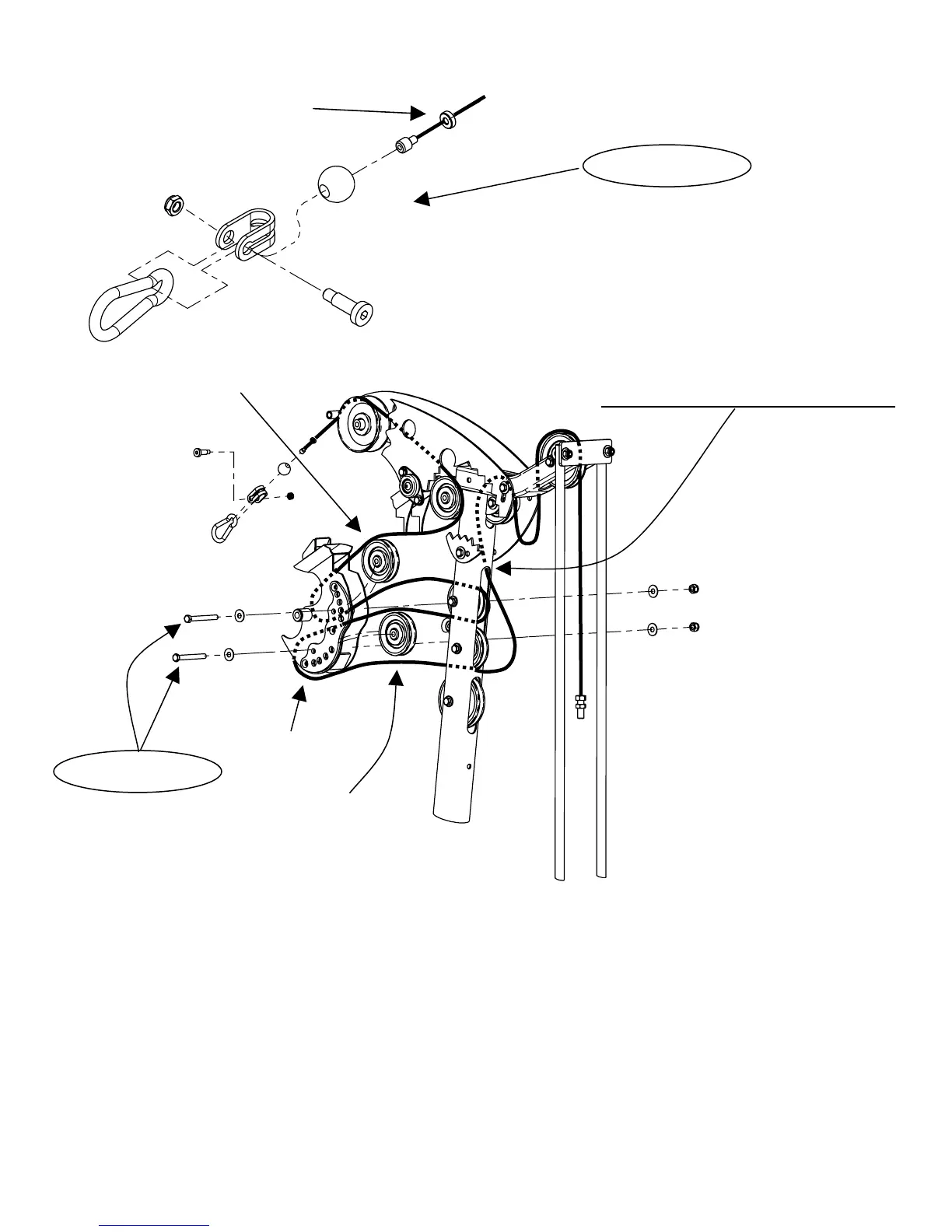

Begin by running upper cable from back of machine to front
as shown in the diagram. Next, slide pulleys 13 & 14 into the
Press Arm Mount as cable is routed. Secure Press Arm Pulleys using:
Two (3” Hex Bolts)
Wrench Tighten Now. Four (3/8” Flat Washers)
Two (3/8” Lock Nuts)
Step 16: Assemble Cable End by sliding one plastic ball onto the end of the cable. Next slide the
cable end into the side of the cable “U” bracket. Finally, attach spring clip to “U” bracket using a
1 ¼” shoulder bolt and 5/16” lock nut. Wrench Tighten Now.
Page 15
STEP 16
STEP 15
