Inspire M2 - Page 19

1 – Floating Pulley Bracket
1 – 3 ½” Pulley 2 – Floating Pulley Plates
1 – Cable Adapter 2 – 3 ½” Pulleys
1 – 2” Hex Bolt 2 – 1 3/4” Hex Bolts
2 – 3/8” Flat Washers 4 – 3/8” Washers
1 – 3/8” Lock Nut 2 – 3/8” Lock Nuts
Pulley 16
Pulley 15
Pulley Plate
Pulley 17
Pulley 11
1 – 5” Hex Bolt
3 – 3/8” Flat Washers
1 – 3/8” Lock Nut

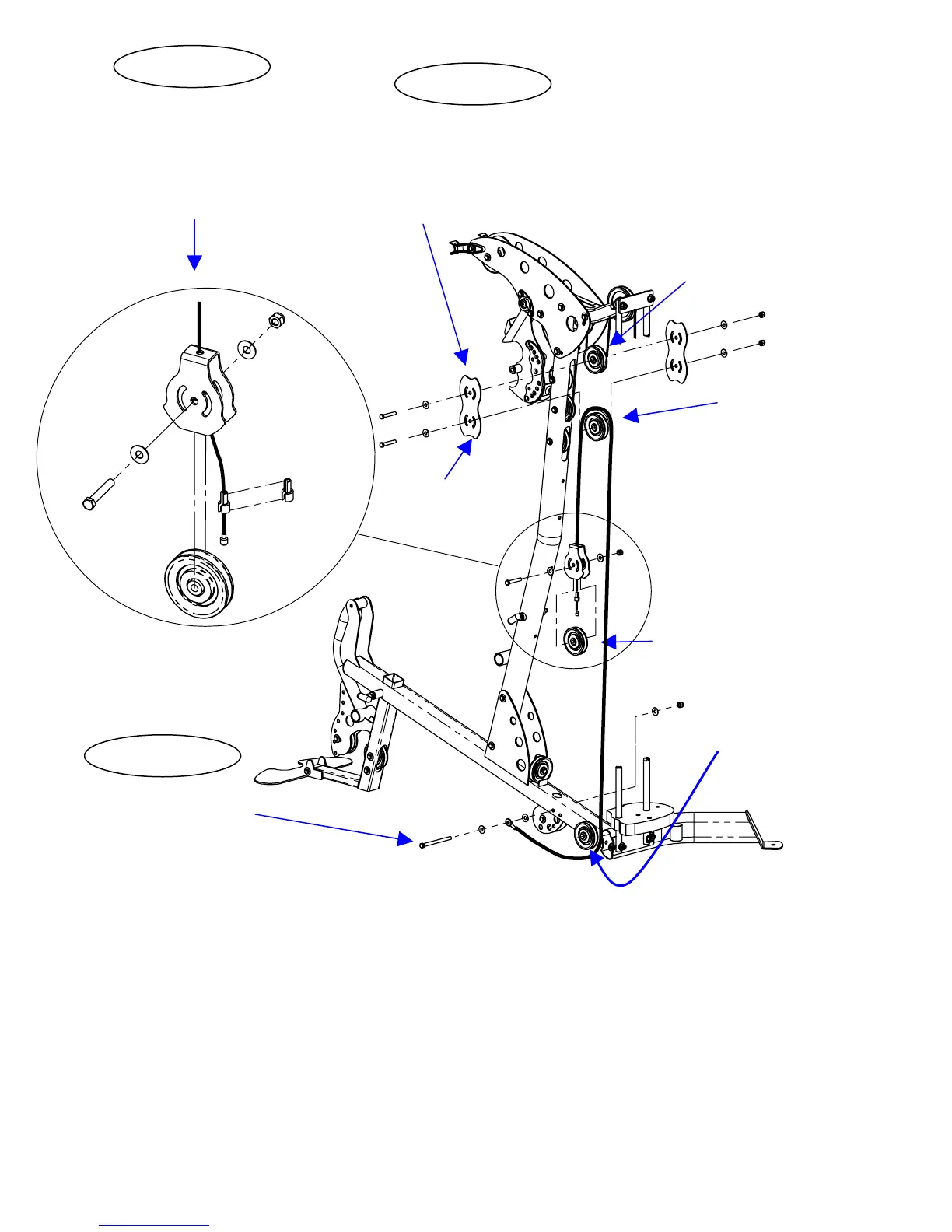

Step 17: Attach the Middle Cable to the Main Base using: One (3/8” x 5” Hex Bolt)
Finger Tighten Only Three (3/8” Flat Washers)
One (3/8” Lock Nut)
Step 18: Assemble the Pulley Plates using: Two (Floating Pulley Plates)
Wrench Tighten Now Two (3 ½” Pulleys)
Two (1 ¾” Hex Bolts)
Four (3/8” Flat Washers)
Two (3/8” Lock Nuts)
Step 19: Attach Middle Cable to Floating Pulley Bracket using: One (Cable Adapter)
Wrench Tighten Now One (3 ½” Pulley)
One (3/8” x 2” Hex Bolt)
Two (3/8” Flat Washers)
Page 16 One (3/8” Lock Nut)
STEP 17
STEP 18
STEP 19
