Note: Be sure guide rods are positioned
in front of plate.
2 – 1 ¾” Hex Bolts
4 – 3/8” Flat Washers
2 – 3/8” Lock Nuts
Shroud Plate Assembly
1 – 2 ½” Hex Bolt
2 – 3/8” Flat Washers
1 – 3/8” Lock Nut

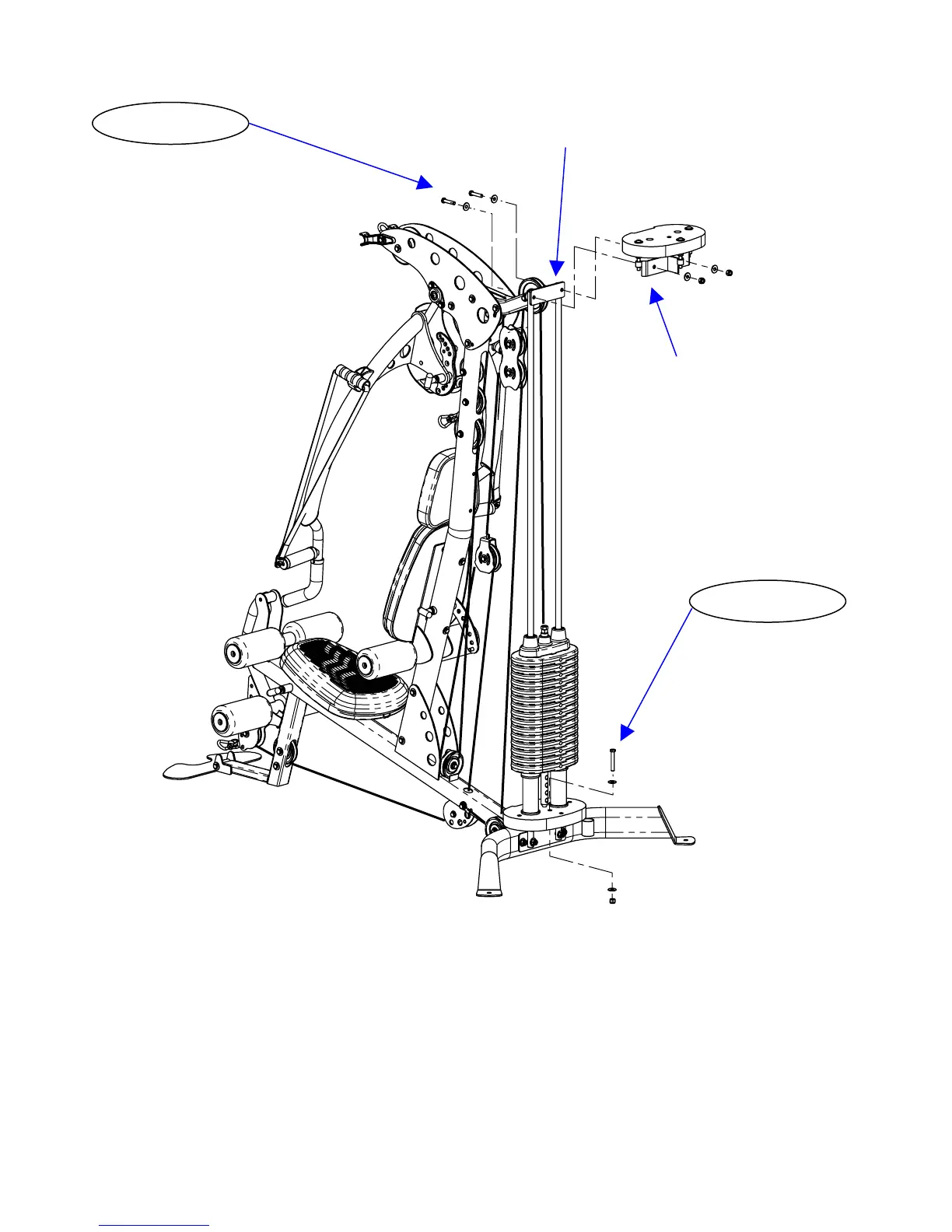

Step 34: Secure Guide Rods and Shroud Plate Assembly Two (3/8”x1 ¾” Hex Bolts)
to Main Upright using: Four (3/8” Flat Washers)
Two (3/8” Lock Nuts)
Step 35: Secure Bottom Shroud Plate to Rear Base using: One (3/8”x2 ½” Hex Bolt)
Two (3/8” Flat Washers)
Note: If heavy stack has been installed, bolt in step One (3/8” Lock Nut)
35 must be installed from the bottom.
Note: Tighten bolts in Steps 34, 35 and Steps 3, 5, 7, and 17 now.
Page 22
STEP 34
STEP 35
To Next Page
