Step 19
1 - Lower Cable
1 - M10 x 35 Hex Bolt
1 - M10 x 50 Hex Bolt
1 - M10 x 55 Hex Bolt (Blue Dot)
4 - M10 Flat Washers
2 - M10 Locknuts
1 - 1/2” Step Spacer
1 - Plastic Ball
1 - “U” Bracket
1 - Spring Clip
1 - M6 x 20 Button Head Bolt
1 - M6 Flat Head Nut
Cable inside tube

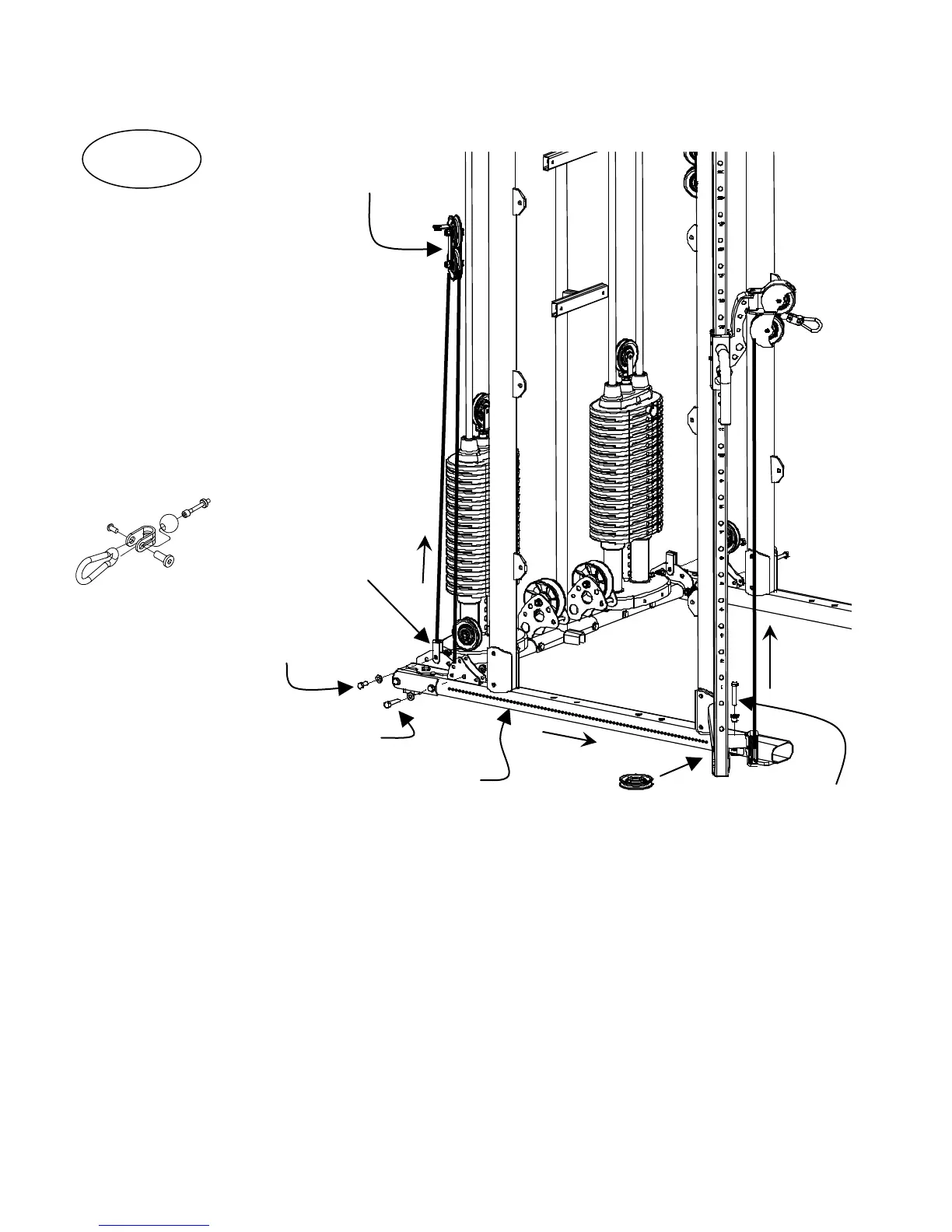

Step 19: Repeat instructions from Step 18 to install the right side Lower Cable.
One (M10 x 35 Hex Bolt) One (Plastic Ball)
One (M10 x 50 Hex Bolt) One (“U” Bracket)
One (M10 x 55 Bolt (Blue Dot) One (Spring Clip)
Four (M10 Flat Washers) One (M6 x 20 Button Head Bolt)
Two (M10 Locknuts) One (M6 Lock Nut)
One (1/2” Step Spacer)
(Wrench Tighten Now)
Page 19
Start cable here,
“U” Bracket and
Cable Anchor
Floating Pulley Assy
With Guide Bushing
Front Pulley
Cable End Detail
M10 x 35 Hex Bolt
M10 x 50 Hex Bolt
M10 x 55 Hex Bolt
1/2" Step Spacer
