Step 20
1 – Row Cable
1 - Plastic Ball
1 - “U” Bracket
1 - Spring Clip
1 - M6 x 20 Button Head Bolt
1 - M6 Flat Head Nut
Start Left Row Cable here

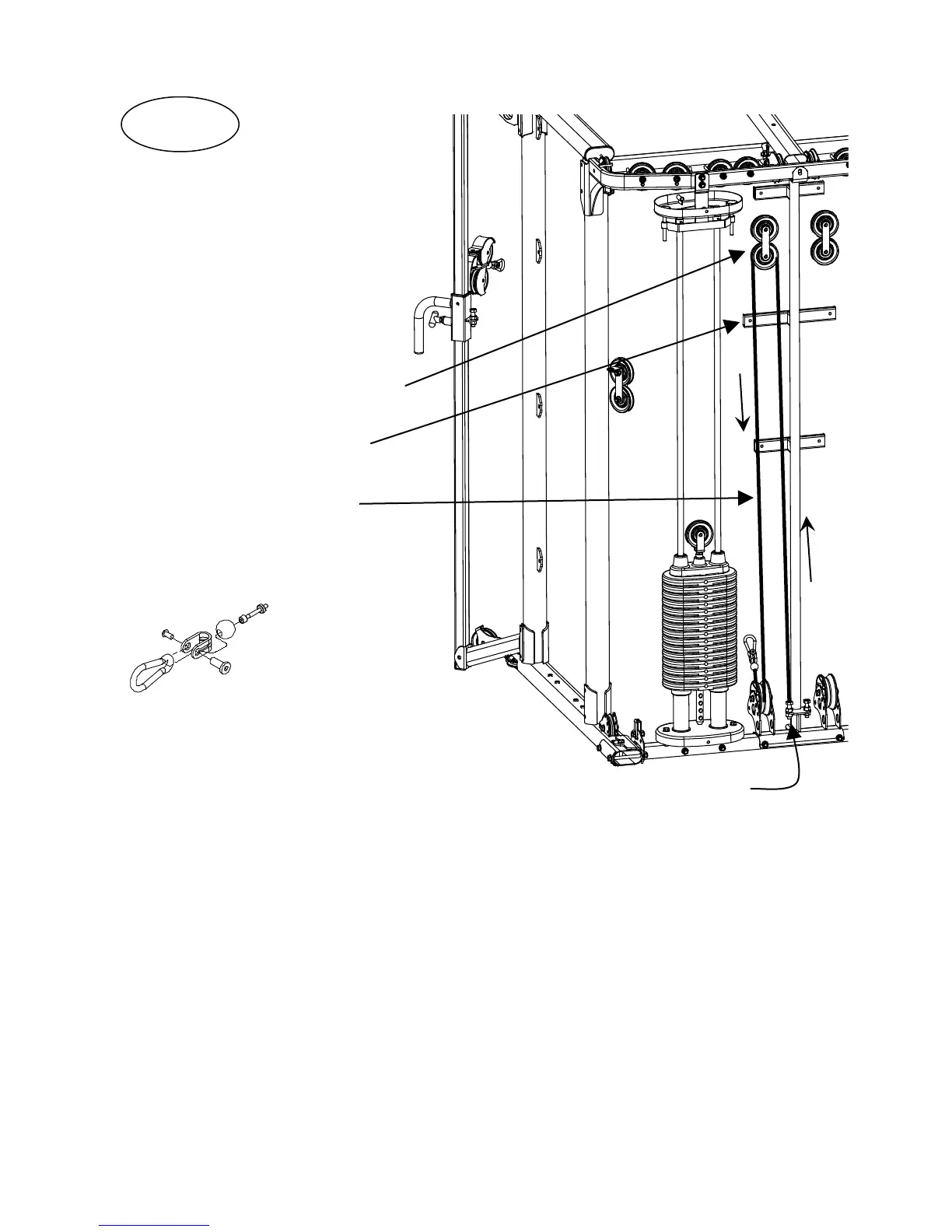

Step 20: Select the two Row Cables and lay them out straight assuring they are not kinked. Remove one
Jam Nut from the cable end bolt. Insert the bolt into the bracket at the bottom of the Row Pulley
Mount. Reattach the Jam nut. Route the cable up through the Floating Pulley Assembly and back
down around the back side of the Wide Pulley and out the front at the bottom of the Row Pulley
Mount. Be sure the cable goes between the Wide Pulley and cable retainer pin. Complete the
cable end by sliding a Plastic Ball onto the end of the cable. Next slide the cable end into the side
of the Cable “U” Bracket. Finally, attach the Spring Clip to the “U” Bracket using a M6 x 20 Button
Head Bolt and M6 Flat Head Nut. Slide the retainer “O” Ring tight against the Plastic Ball to
complete using:
One (Row Cable)
One (Plastic Ball)
One (“U” Bracket)
One (Spring Clip)
One (M6 x 20 Button Head Bolt)
One (M6 Flat Head Nut)
(Wrench Tighten Now)
Page 20
