Step 1
2 – M10 x 25 Hex Bolts (Blue Dot)
4 - M10 x 125 Hex Bolts
10 – M10 Flat Washers
4 – M10 Locknuts
Right Base Beam
Weight Stack Mount
Cable Anchor Plate
Left Base Beam
Base Beam Bracket

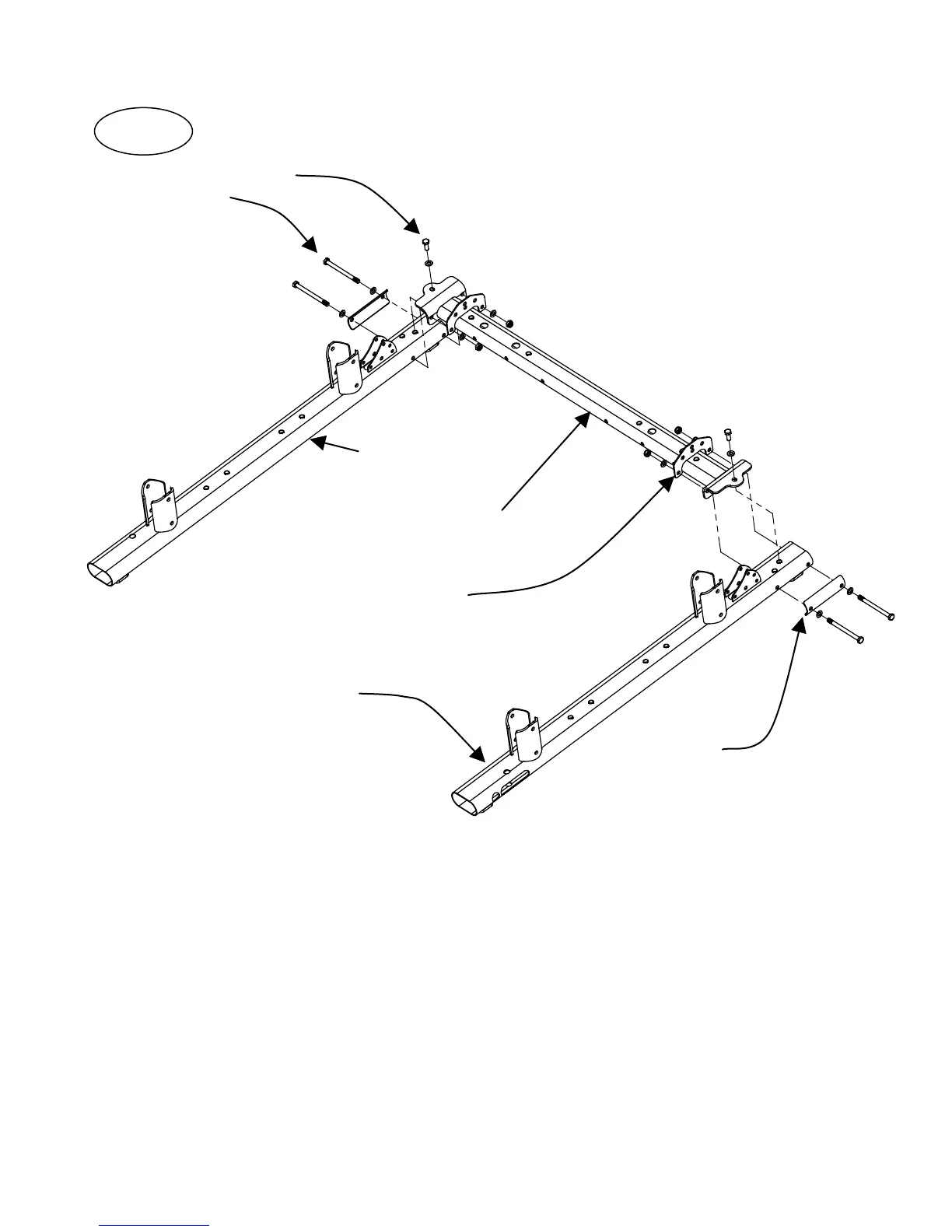

Step 1: Attach the Right Base Beam, Left Base Beam,
Two (M10 x 25 Hex Bolts (Blue Dot)
Weight Stack Mount, two Cable Anchor Plates,
Four (M10 x 125 Hex Bolts)
And two Base Beam Brackets using:
Ten (M10 Flat Washers)
Four (M10 Locknuts)
Note: “(Blue Dot)” means there is a blue dot of thread locking compound on the bolt
thread.
(Finger Tighten Only)
Page 5
