ASSEMBLY AND OPERATING INSTRUCTIONS

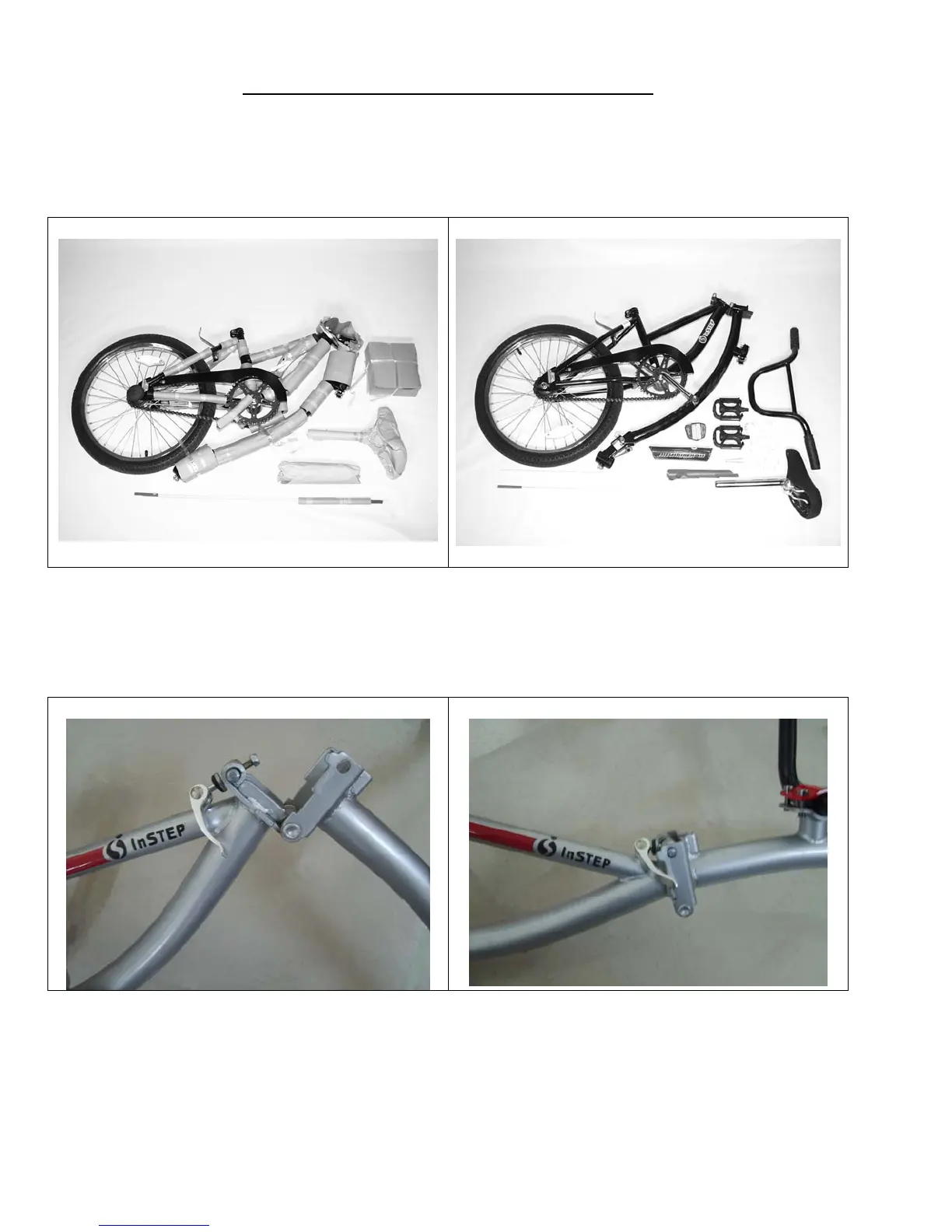

STEP 1 Open carton, remove contents, and compare contents with parts list
Note: To prevent scratching of the frame, it is recommended that you lay the parts out on top
of a flattened cardboard box, or other soft surface.
1A
1B
1A. Remove all contents from the carton. Check to make sure nothing is left in the box.
1B. Unwrap all parts and compare them with the Parts List. Make sure nothing is missing.
STEP 2 Extend the folding trailer arm
2A
2B
2A. Extend the trailer arm until the flat plates meet and are flush. If necessary, flip the quick
release tightening bolt out of the way.
2B. Rotate the shaft of the tightening bolt into the slot in the two plates and tighten the Quick
release lever down as shown.
