Chapter: Operation
3-2 M26-16269-EN
Gauge Length Setting (Vertical Adjustment)
2603-080 - The calibration bar supplied provides gauge length settings of 10, 20, 25, 50, 100
and 200 mm, and 0.5, 1.0, 2.0, and 5.0 inch.
2603-084 - The calibration bar supplied provides gauge length settings of 10, 20, 25, 50, and
100 mm, and 0.5, 1.0, and 2.0 inch.
2603-085 - The calibration bar supplied provides gauge length settings of 10, 20, 25, 50 and
100 mm, and 0.5, 1.0 and 2.0 inch.
2603-086 - The calibration bar supplied provides gauge length settings of 10, 20, 25, 50 and
100 mm, and 0.5, 1.0 and 2.0 inch.
1. Mount the calibration bar in the lower grip only.
2. Locate the lower knife edge in the lower gauge length notch in the calibration bar.

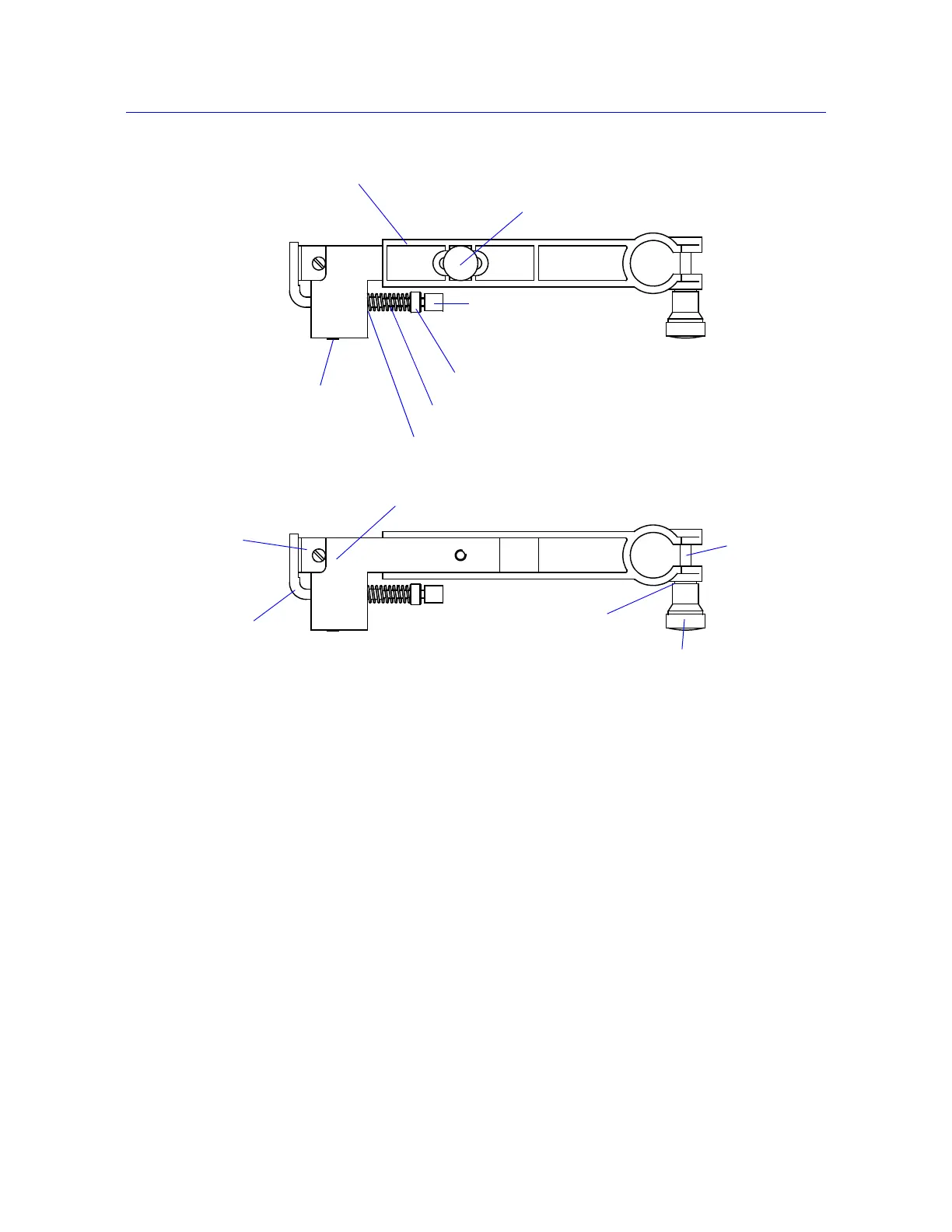

Figure 3-1. Specimen Clamp Assemblies
Adjusting Nut
(gripping force)
Compression Spring
Spring Loaded
Roller
Upper Specimen
Clamp Assembly
Arm
Thumbscrew & Washer
(horizontal adjustment)
Special Washer
Lower Specimen
Clamp Assembly
Cap
Clamp Block
Bolt
Thumb Nut
(vertical adjustment)
Clamp Rod
Knife Edge
Washer
To Next Page
