INTARCON BCV-I - Page 24

24

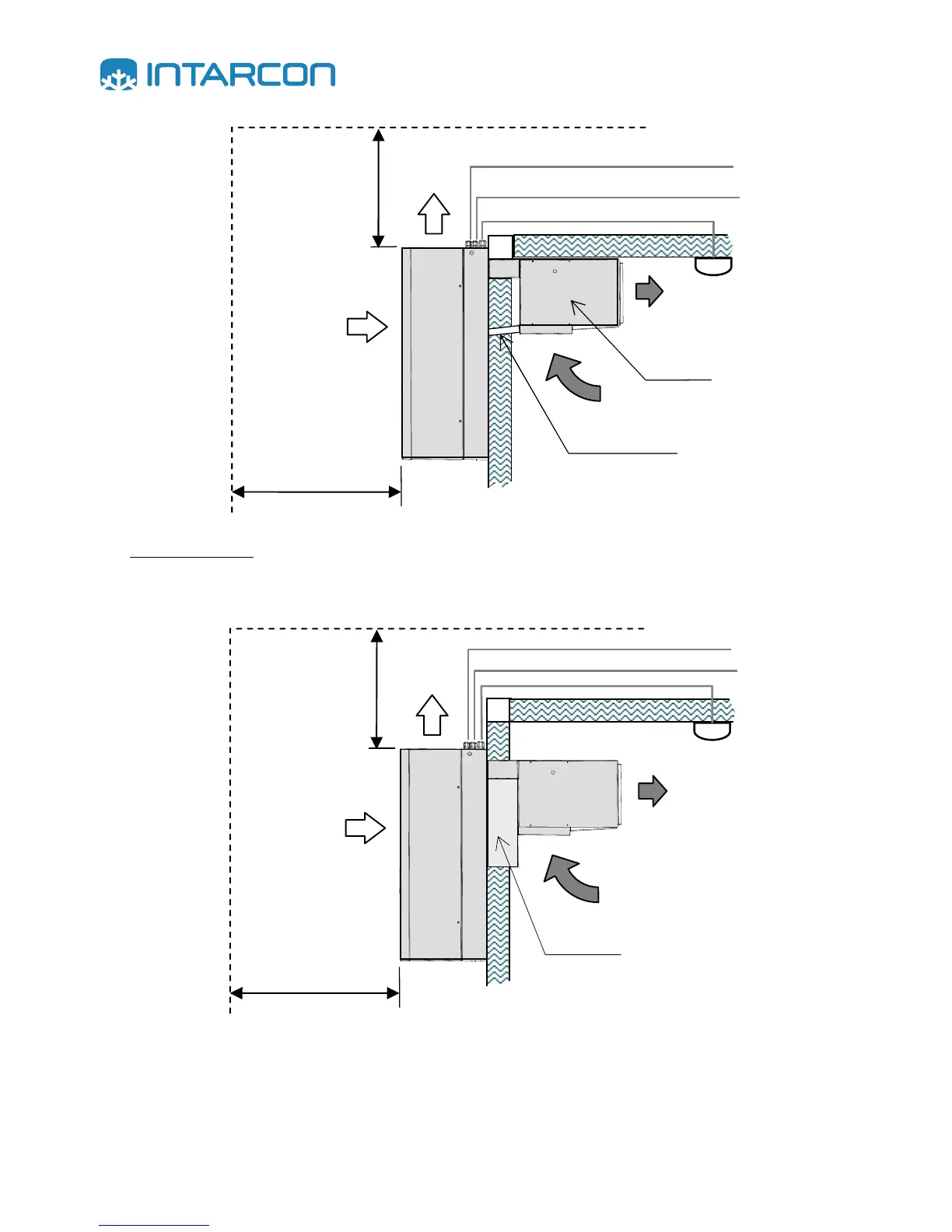

§ Plug in mounting.- on an existing cold room or new one:
1. Cut out the indicated frame on the wall panel.
2. Place the unit into the wall frame with the supplied isolating block.
§ Fix the unit to the wall panel by mean of 6 through screws of Ø 6 mm metric as indicated on the
drawing. For the drop mounting, two hang-in holes are available for Ø 8 mm metric.
INSULATING
PAD
RECOMMENDED
SEPARATION
1 000 mm
RECOMMENDED
SEPARATION
> 500 mm
COLD
ROOM
LIGHT
DOOR MICROSWITCH
DRAIN PIPE
RECOMMENDED
SEPARATION
1 000 mm
RECOMMENDED
SEPARATION
> 500 mm
COLD
ROOM
LIGHT
DOOR MICROSWITCH
SIDE
COVER
DOOR HEATER (Only BCV)
DOOR HEATER (Only BCV)
