Intec FORCE/2 - Electrical Drawings

MECHANICAL DRAWINGS
33

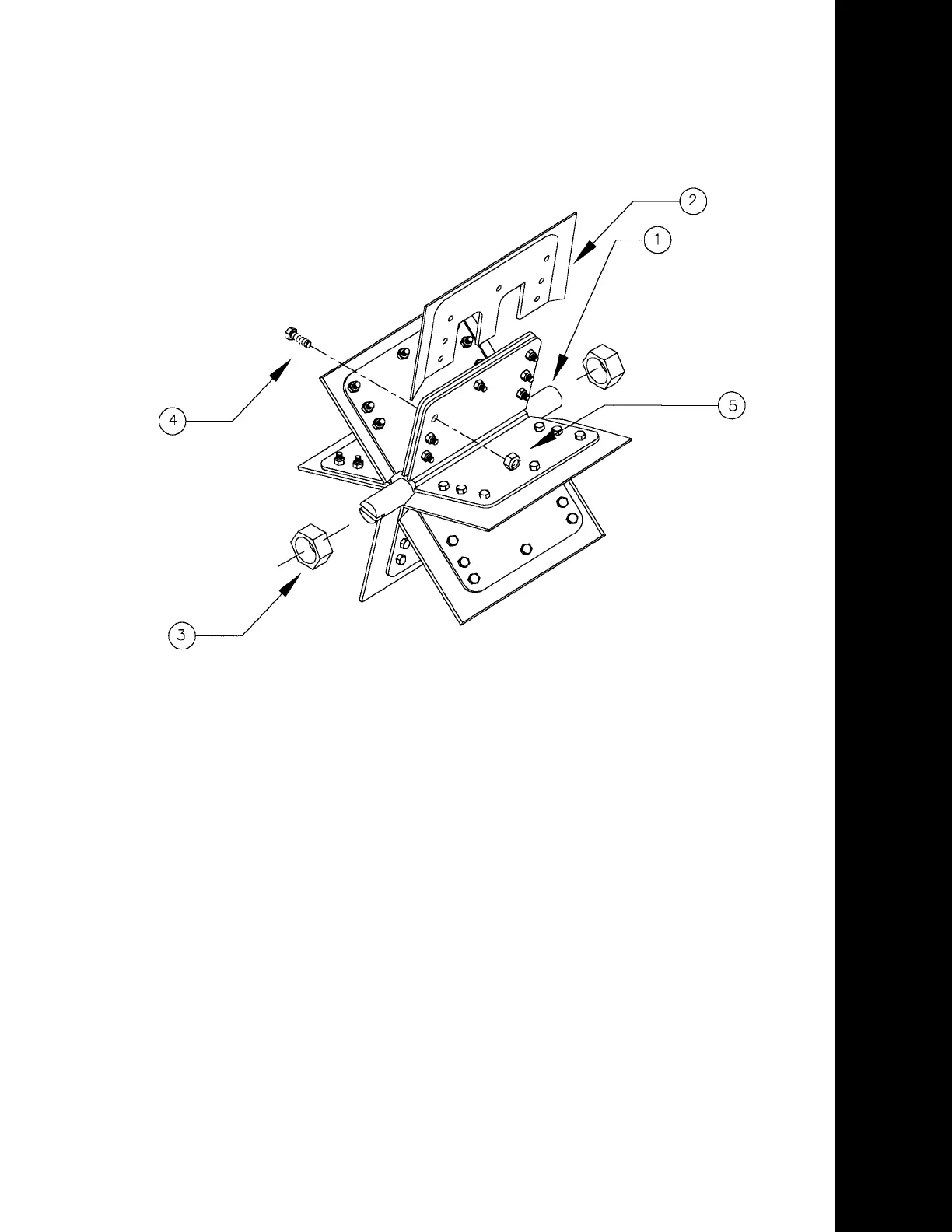

Item # PART NUMBER DESCRIPTION
1 ........22008 ..........AIRLOCK ROTOR ASSM. W/O SEALS
2 ........22013............AIRLOCK SEAL
3
........
22116 ............WEAR WASHER NYLON 5/8"
4
........
F1
1
2
..............1/4*20x7/8 GRADE 5 HEX HEAD ZN
5
........
F1
1
4
..............
1/4*20 NYL
ON LOCKNUT ZN
Airlock Rotor
