MECHANICAL DRAWINGS
32
Item # PART NUMBER DESCRIPTION
1 ..........22005-02 ............AIRLOCK INLET PLATE ASSM. 2 1/2"
2 ..........22005-09 ............AIRLOCK TUBE 12" (CRS)
3 ..........22005-01 ............AIRLOCK OUTLET PLATE ASSM. 3"
4 ..........22021 ................AIRLOCK BEARING FLANGE 4 HOLE
5
..........
22008 ................AIRLOCK ROTOR ASSEMBLY W/O SEAL
6 ..........22013 ................AIRLOCK SEAL
7 ..........22116 ..................AIRLOCK WEAR WASHER
8 ..........F221....................CAGE NUT ZN
9 ..........F353 ..................3/8" INTERNAL LOCK WASHER ZN
10..........F108....................3/8" FLAT WASHER SAE
11..........F159....................1/4" SAE FLAT WASHER
12..........F114 ....................1/4*20 NYLON LOCKNUT ZN
1
3..........F112 ....................1/4*20 x 7/8" GRADE 5 HEX HEAD ZN
1
4
..........
F1
1
0....................1/4*20 x 1 #9 HEX YELL. ZN
1
5
..........
F1
05
....................
3/8–2
4 x 7/8" GRADE 5 HEX HEAD ZN
16..........F115 ....................1/4" SPLIT LOCK WASHER ZN
1
7
........22005-03 ............OUTLET SS INSERT 3"
1
8
..........
22005-04 ............INLET SS INSERT 2-1/2"

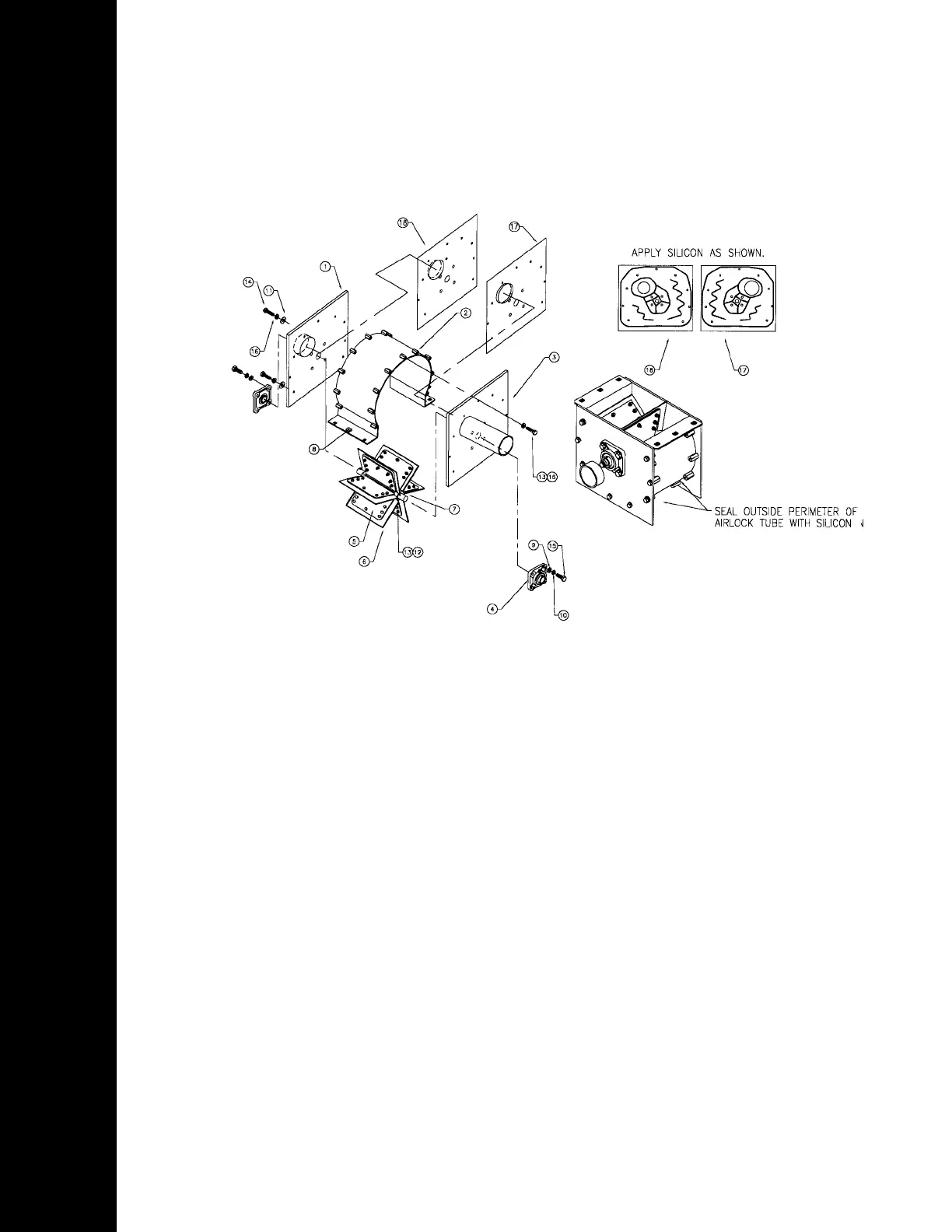

Airlock Assembly
