Intec FORCE/2 - Page 33

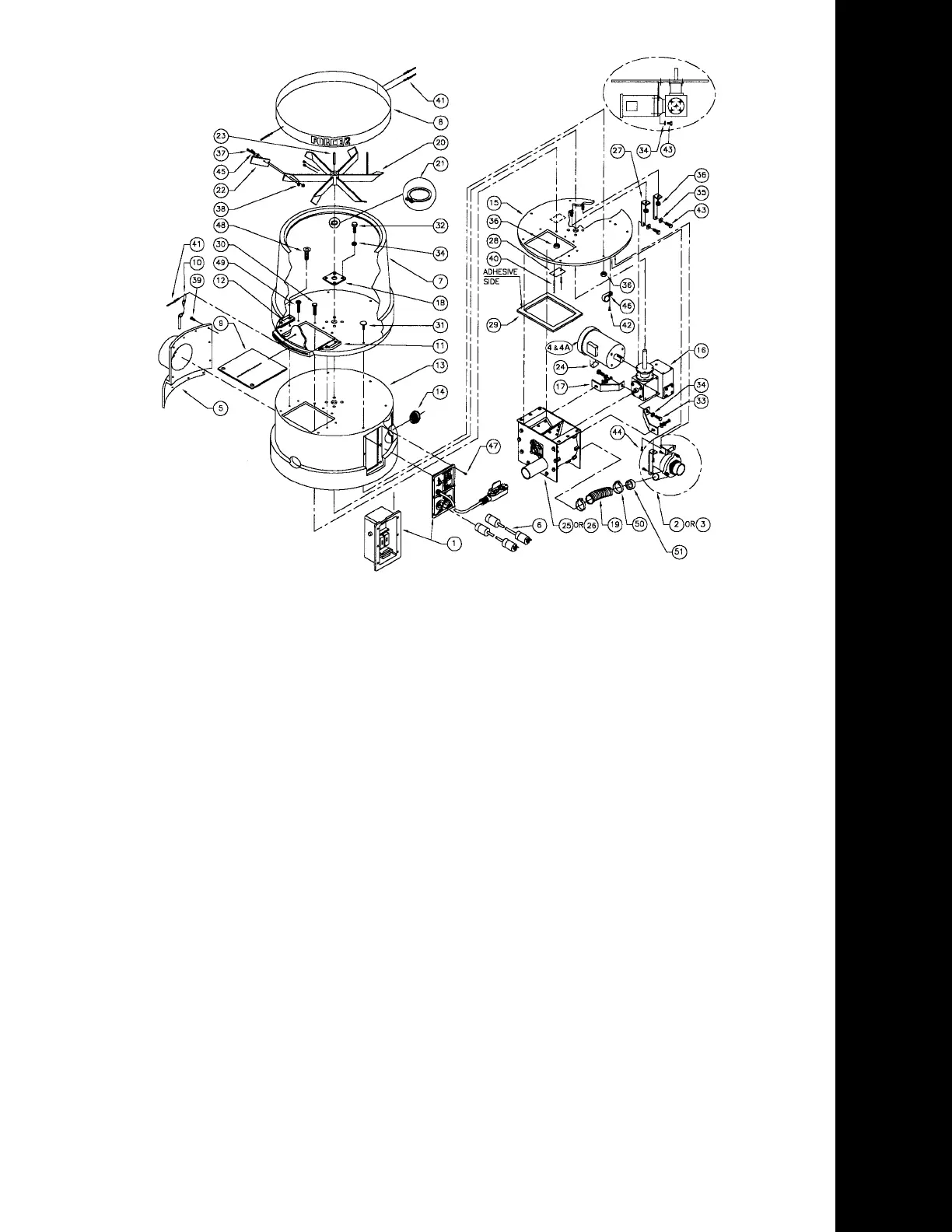

MECHANICAL DRAWINGS
25..22042-S....AIRLOCK ASSM. W/BEARINGS. STD
26..
22042-01-S AIRLOCK ASSM. W/BEARINGS
& SS INSERTS
27..22053-01..AGITATOR MOTOR
SUPPORT BRACE
28..22106 ......SERIAL TAG FORCE/2
29..22131 ......AIRLOCK GASKET
30..F101 ........3/8*16 X 2-1/4" CARRIAGE ZN
31 ..F103 ........3/8*16 X 1-1/2" GRD 2 ELEV. BOLT
32..F104 ........3/8*16 X 1-3/4" GRD 5 HEX ZN
33..F106 ........3/8*16 X 3/4" GRD 5 HEX ZN
3
4
..
F107 ........3/8" SPLIT LOCK WASHER ZN
35..F108 ........3/8" FLAT WASHER SAE
36..F109 ........3/8*16 NYLON LOCK NUT ZN
37 ..F112 ........1/4*20 X 7/8" GRD 5 HEX ZN
38..F114 ........1/4*20" NYLON LOCK NUT ZN
39..F123 ........#6 X 3/4" SMS PP BLACK
40
..
F1
29
........
3/32" X 11/32" ALUM. RIVET
41
..
F130 ........3/16" X 11/16" ALUM. RIVET
42..F142 ........#8*32 X 1Z/2" PP, TYPE B, SELF TAP.
43..F143 ........3/8*16 X 1" GRD 5 HEX ZN
44
..
F152 ........1/4*20 X 1/2" GRD 2 ROLOCK
45..F159 ........1/4" FLAT WASHER NYLON
46
..
F162 ........CABLE CLAMP NYLON
47..F223 ........#10*32 X 5/8" PHILL TRUSS ZN
FLAT CAP SCREW
48..F332 ........3/8*16 X 2" SOCKET
49
..
F333 3/8*16 X 1-1/2"
SOCKET BUTTON SCREW
50
..
22050-04 ..BLOWER CLAMP
51 ..22026 ......BLOWER REDUCING RING
(Mfg from 7/89-11/02)
Reintroduced (12/06 to present)
1....21000-S ....ELECTRICAL SYSTEM ASSM.
W/RS&VSC
2....21025-S ....BLOWER, 2 STG 115 V, 60HZ,
105 CFM, ASSM.
3....21024-S ....BLOWER, 2 STG 115 V, 60HZ,
116 CFM, ASSM.
4....21026-S ....Agitator motor assm., 1.5 HP
115/220V, 60 HZ
4A..21027-S ....Agitator motor assm., 2.0 HP
115/220V, 60 HZ
5....21026-07 ..AGITATOR MOTOR COVER ABS 1/4"
5a ..21026-17 ..AGITATOR MOTOR COVER 1/4" HC
6....21060-01 ..POWER CORD 100' 12/3 COMP,
TWIST LOCK
7....22000 ......HOPPER, STD, BLUE
8....22000-02..HOPPER BELLY BAND, STD
9
....
22000-03
..
SLIDE GATE, F/2, STD
10 ..22000-04..SLIDE GATE CABLE & PIN
11 ..22000-06..SLIDE GATE GUIDE, RIGHT
12 ..22000-07..SLIDE GATE GUIDE, LEFT
13 ..22004-01..BASE, STD, BLACK HC
14 ..22001-01 ..BASE HOUSING LOUVER 3"
1
5
..
22003-0
1..BASE PLATE, 1/4" X 28"
16 ..22015 ......GEARBOX, F/2
17 ..22015-21 ..GEARBOX STABILIZER
18 ..22015-22 ..GEARBOX SUPPORT PLATE 4" X 4"
1
9
..
22023-01..BLOWER COUPLING 8" LONG
20..22025 ......AGITATOR, STD W/SET SCREWS
2
1
..22025-01..AGITATOR SNAP RING 1"
22..22025-02..AGITATOR NEOPRENE PAD 1/4"
23..22025-03..KEY 1/4" X 2-1/2"
24..22025-05..AGITATOR MOTOR ROTATION LABEL
31
