VACUSAFE – Operating instructions V12 Description of the device
www.integra-biosciences.com 5
English
2 Description of the device
Please determine which VACUSAFE model you have purchased as it will simplify the
reading of these operating instructions. Find the part number of your model on the main
packaging label and note it here: 158 .
2.1 Scope of delivery
• Base (housing with integrated bottle stand)
• Bottle
• Lid with openings for tubing
• Tubing and filter
• Cable for level sensor (models 158300, 158310)
• Mains adapter
• VACUBOY hand operator

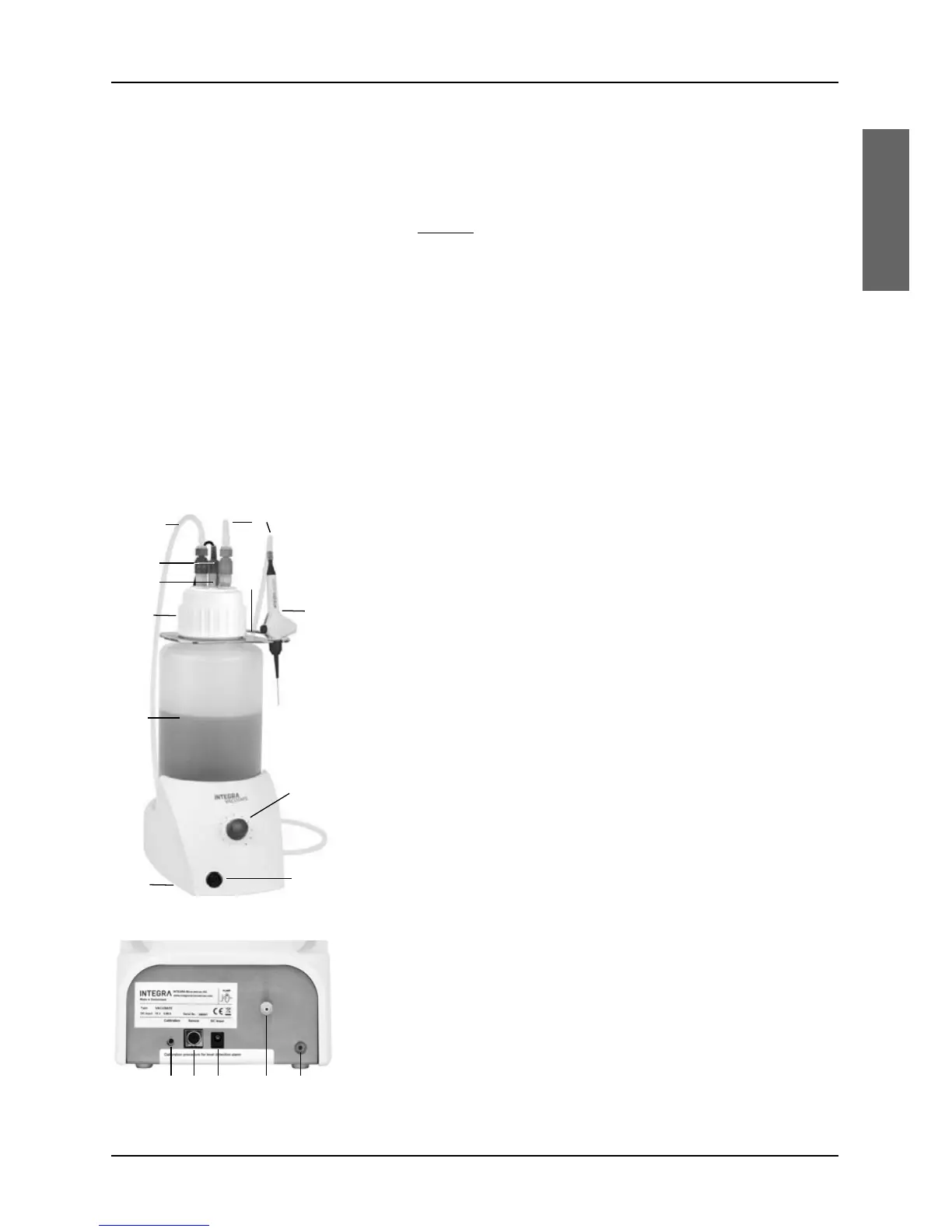

2.2 Overview of the VACUSAFE
1 Housing
2 Bottle for liquid collection
3 Lid with openings for tubing
4 Bottle handle (except model 158300)
5 VACUBOY hand operator
6 Tubing for connection of hand operator to bottle
7 Tubing for connection of base to bottle
8 On/off switch with indicator lamp
9 Knob for vacuum regulation
10 Level sensor (models 158300 and 158310)
11 Atmospheric pressure return valve
Rear view
12 Button for calibration of level sensor
13 Socket for level sensor cable
14 Mains connection socket
15 Filter port (air inlet)
16 Air outlet with screwed air outlet connector
1
2
3
4
5
6
7
10
9
8
11
12 13 14 15 16
