3 Installation
3.1 Operating environment
The VACUSAFE has been designed for use in a laboratory. It shall be installed in a level,
dry and dust-free location with a temperature of 5–40°C and a maximal (non-condensing)
relative humidity of 80%.
3.2 Power supply
Insert the mains adapter cable into the VACUSAFE mains connection socket (14) and plug
it into the power source.
W
ARNING
Use an original INTEGRA Biosciences mains adapter only (see “6.1
Specifications” on page 12 for voltage requirements)
3.3 Set-up
3.3.1 Connecting the filter
WARNING
The VACUSAFE should never be used without a filter.
3.3.2 Connecting the tubing for the air outlet

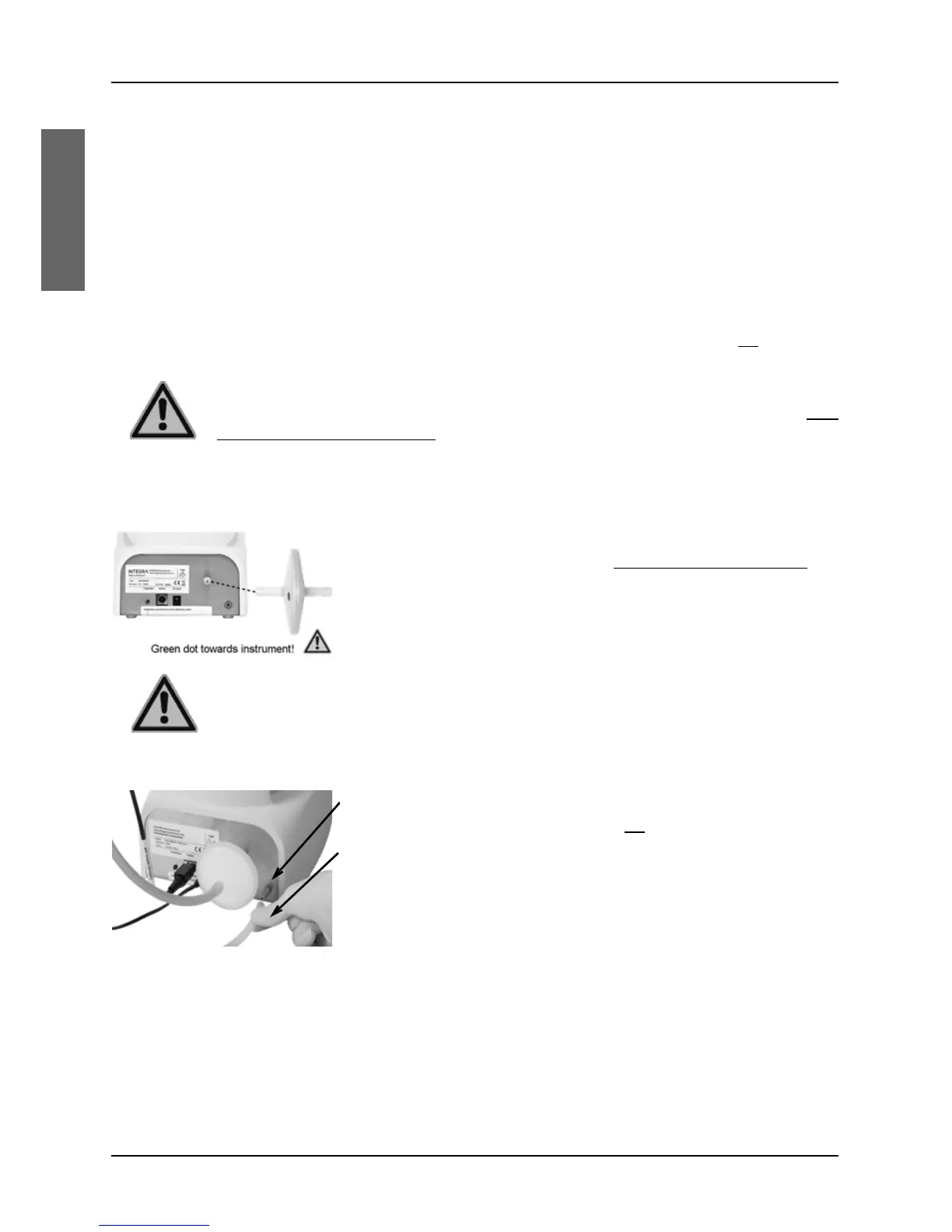

Insert the hydrophobic filter into the filter port with the green
dot facing the instrument (see "
Rear view" on page 5) in
order to guarantee that the hydrophobic side of the filter is
facing the liquid collection bottle
1) If not installed, screw the air outlet connector (#158 427)
on the air outlet of the pump (16).
2) Fix the silicon tubing, ID 4 mm (e.g. #158332), on the
screwed air outlet connector.
