THE

80286

INSTRUCTION SET

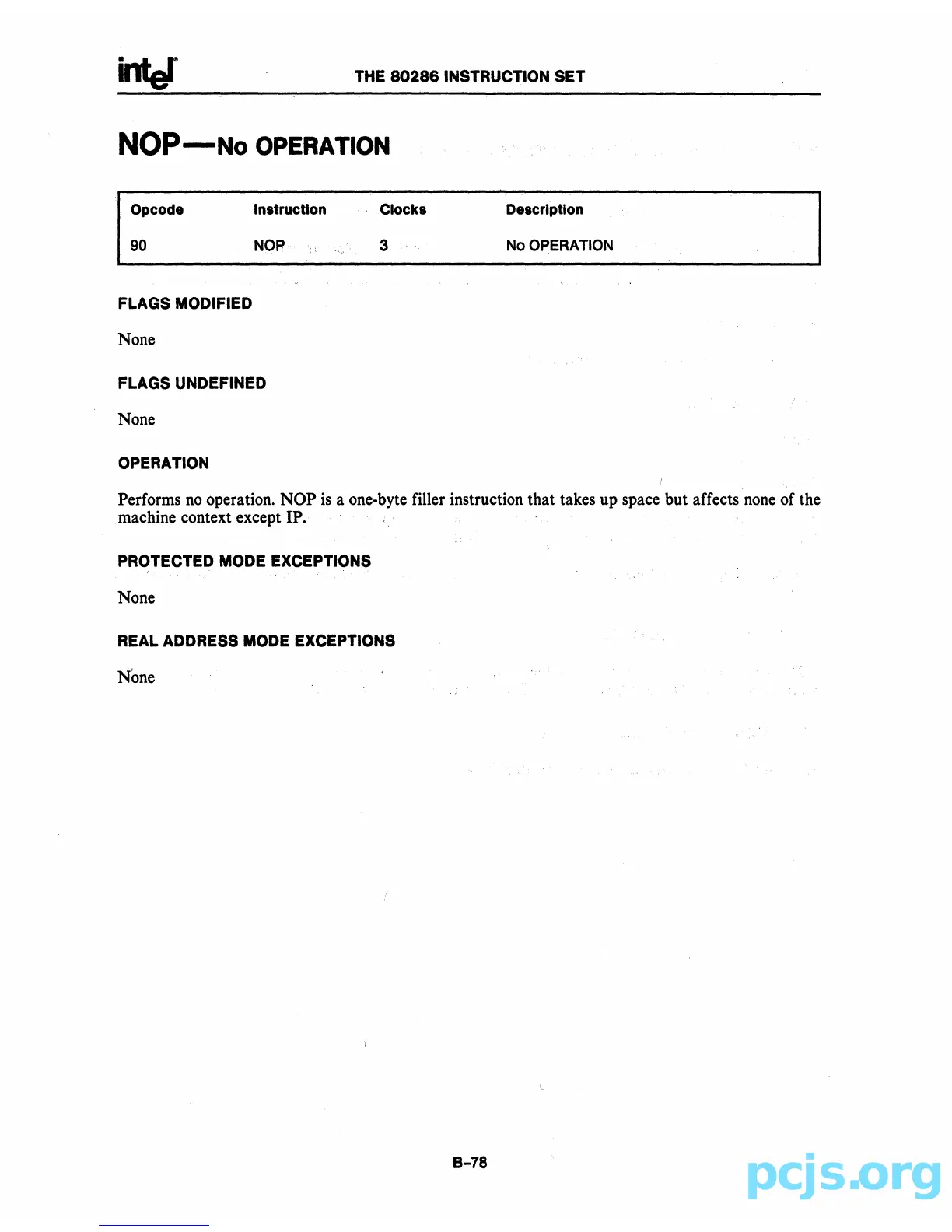

NOP-No

OPERATION

Opcode Instruction Clocks

Description

NOP

OPERATION

FLAGS MODIFIED

None

FLAGS UNDEFINED

None

OPERATION

Performs

operation.

NOP

a one-byte filler instruction that takes up space but affects none of the

machine context except IP.

PROTECTED MODE EXCEPTIONS

None

REAL ADDRESS MODE EXCEPTIONS

None

8-78
