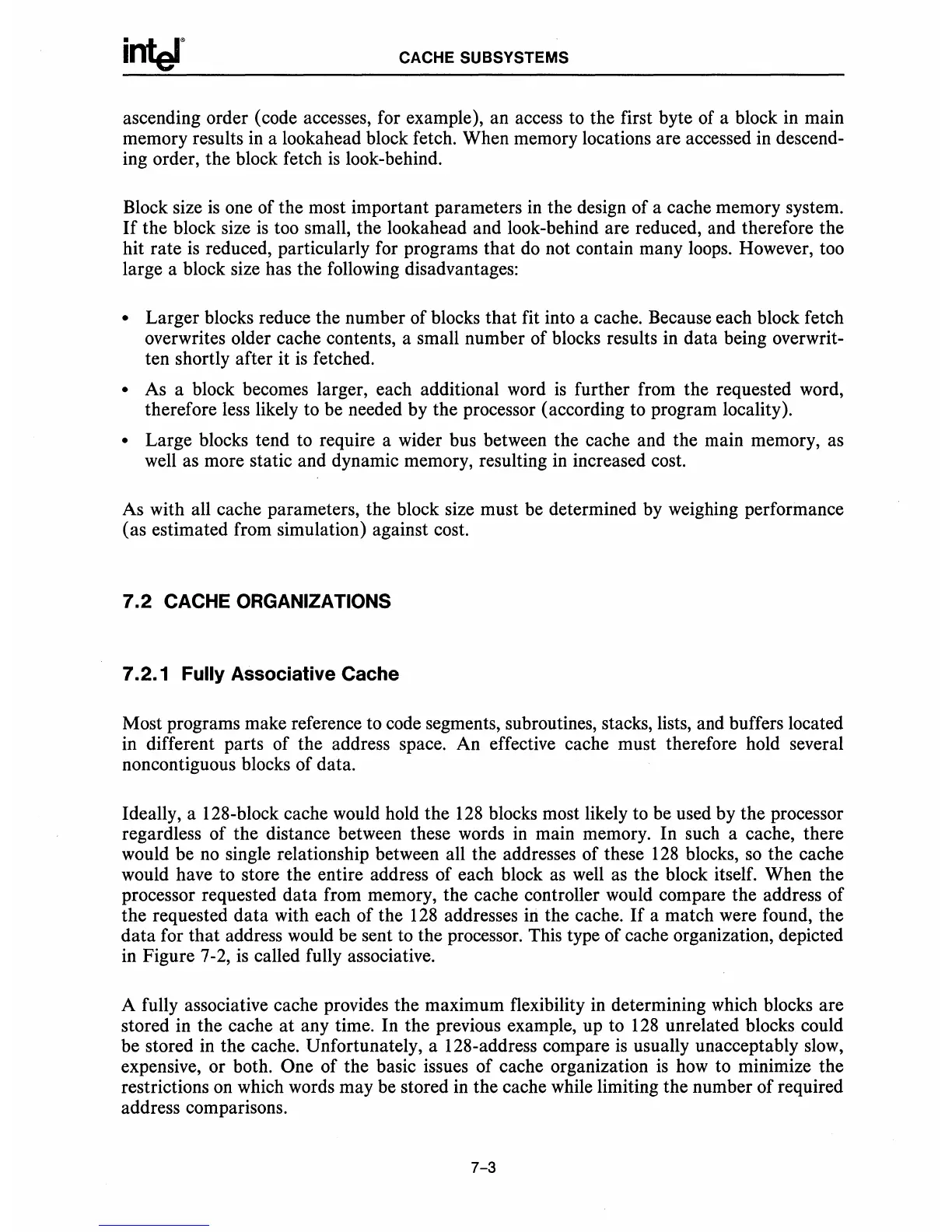

CACHE SUBSYSTEMS
ascending order (code accesses, for example), an access to the first byte of a block in main
memory results
in a lookahead block fetch. When memory locations are accessed in descend-
ing order, the block fetch
is look-behind.
Block size
is one of the most important parameters in the design of a cache memory system.
If the block size is too small, the lookahead and look-behind are reduced, and therefore the
hit rate
is reduced, particularly for programs that do not contain many loops. However, too
large a block size has the following disadvantages:
• Larger blocks reduce the number of blocks that fit into a cache. Because each block fetch
overwrites older cache contents, a small number of blocks results
in data being overwrit-
ten shortly after it
is fetched.
• As a block becomes larger, each additional word is further from the requested word,
therefore less likely to be needed by the processor (according to program locality).
• Large blocks tend to require a wider bus between the cache and the main memory, as
well as more static and dynamic memory, resulting in increased cost.
As with all cache parameters, the block size must be determined
by weighing performance
(as estimated from simulation) against cost.
7.2 CACHE ORGANIZATIONS
7.2.1 Fully Associative Cache
Most programs make reference to code segments, subroutines, stacks, lists, and buffers located
in different parts of the address space. An effective cache must therefore hold several
noncontiguous blocks of data.
Ideally, a 128-block cache would hold the
128 blocks most likely to be used by the processor
regardless of the distance between these words
in main memory. In such a cache, there
would be
no single relationship between all the addresses of these 128 blocks, so the cache
would have to store the entire address of each block
as well as the block itself. When the
processor requested data from memory, the cache controller would compare the address of
the requested data with each of the
128 addresses in the cache. If a match were found, the
data for that address would be sent
to the processor. This type of cache organization, depicted
in Figure 7-2,
is called fully associative.
A fully associative cache provides the maximum flexibility
in determining which blocks are
stored in the cache
at any time. In the previous example, up to 128 unrelated blocks could
be stored
in the cache. Unfortunately, a l28-address compare is usually unacceptably slow,
expensive, or both. One of the basic issues of cache organization is how to minimize the
restrictions
on which words may be stored in the cache while limiting the number of required
address comparisons.
7-3
