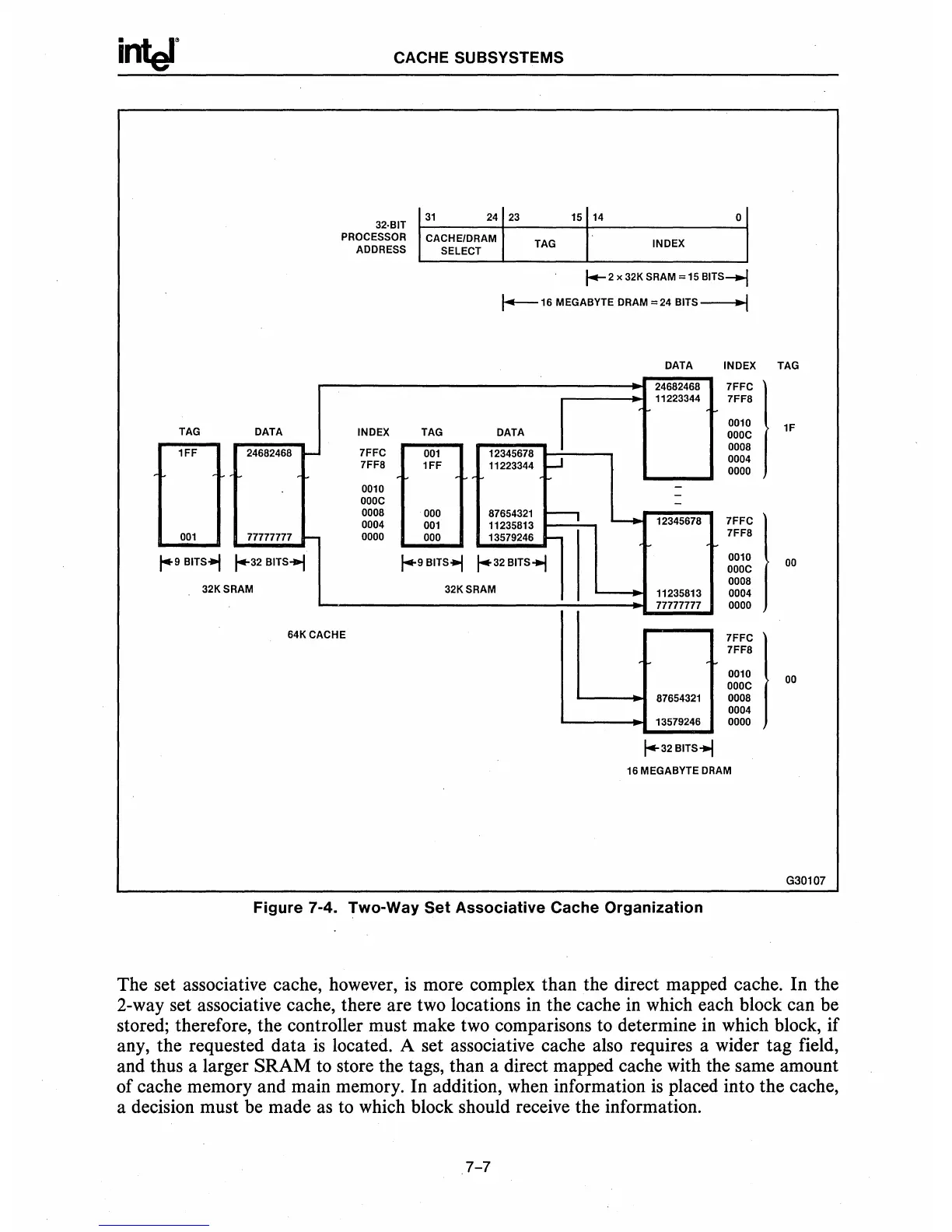

Figure 7-4. Two-Way Set Associative Cache Organization
TAG
IF
00
00
G30107
The set associative cache, however,
is
more complex than the direct mapped cache. In the
2-way set associative cache, there are two locations in the cache
in
which each block can be
stored; therefore, the controller must make two comparisons
to
determine
in
which block, if
any, the requested data
is
located. A set associative cache also requires a wider tag field,
and thus a larger SRAM
to
store the tags, than a direct mapped cache with the same amount
of cache memory and main memory. In addition, when information
is
placed into the cache,
a decision must be made
as
to which block should receive the information.
7-7
