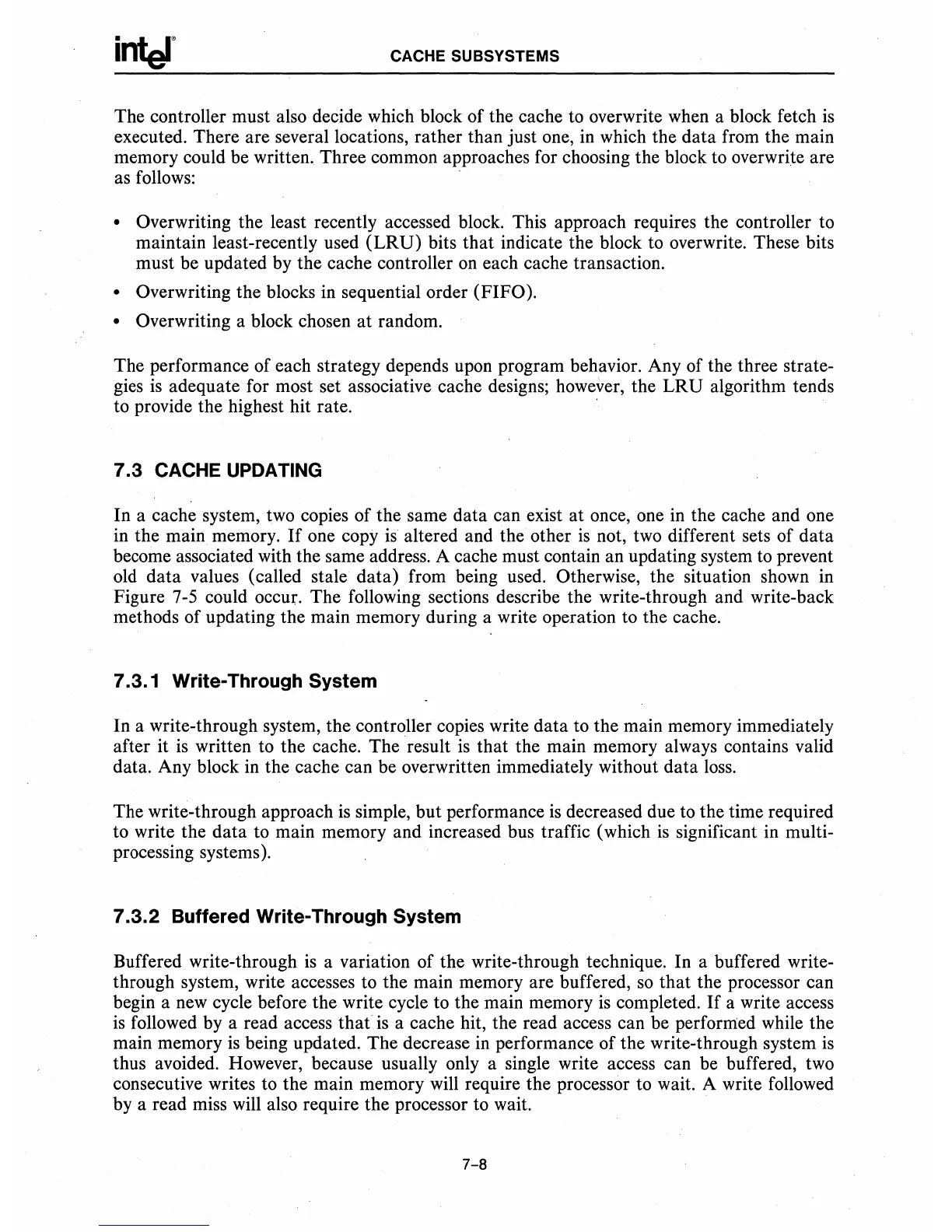

CACHE SUBSYSTEMS
The controller must also decide which block of the cache to overwrite when a block fetch
is
executed. There are several locations, rather than just one, in which the data from the main
memory could be written. Three common approaches for choosing the block to overwrite are
as follows:
• Overwriting the least recently accessed block. This approach requires the controller to
maintain least-recently used
(LRU)
bits that indicate the block to overwrite. These bits
must be updated by the cache controller on each cache transaction.
• Overwriting the blocks in sequential order (FIFO).
• Overwriting a block chosen
at
random.
The performance of each strategy depends upon program behavior. Any of the three strate-
gies
is
adequate for most set associative cache designs; however, the
LRU
algorithm tends
to provide the highest hit rate.
.
7.3 CACHE UPDATING
In a cache system, two copies of the same data can exist at once, one in the cache and one
in the
main
memory.
If
one copy
is
altered and the other
is
not, two different sets of
data
become associated with the same address. A cache must contain an updating system to prevent
old data values (called stale data) from being used. Otherwise, the situation shown in
Figure
7-5
could
occUr.
The following sections describe the write-through and write-back
methods of updating the main memory during a write operation to the cache.
7.3.
1 Write-Through System
In a write-through system, the controller copies write data to the main memory immediately
after it
is
written to the cache. The result
is
that the main memory always contains valid
data. Any block in the cache can be overwritten immediately without data
loss.
The write-through approach
is
simple, but performance
is
decreased due to the time required
to write the data to main memory and increased bus traffic (which
is
significant in multi-
processing systems).
7.3.2
Buffered Write-Through System
Buffered write-through
is
a variation of the write-through technique. In a buffered write-
through system, write accesses to the main memory are buffered,
so
that
the processor can
begin a new cycle before the write cycle to the main memory
is
completed.
If
a write access
is
followed by a read access
that
is
a cache hit, the read access can be perforrned while the
main memory
is
being updated. The decrease in performance of the write-through system
is
thus avoided. However, because usually only a single write access can be buffered, two
consecutive writes to the main memory will require the processor to wait. A write followed
by
a read miss will also require the processor to wait.
7-8
