CACHE SUBSYSTEMS
1. PROCESSOR READ DATA; DATA NOT
FOUND IN CACHE.
DATA IS COPIED
INTO CACHE FROM MEMORY.
2. PROCESSOR WRITES A NEW VALUE
FOR THE DATA JUST READ.
3. LATER, ANOTHER READ CAUSES
NEW DATA
TO BE OVERWRITTEN.
NEW DATA IS LOST.
4. PROCESSOR READS THE SAME
LOCATION AS IN STEP 1. STALE
DATA
IS COPIED INTO CACHE.
PROCESSOR
GETS WRONG DATA.
80386
o-u

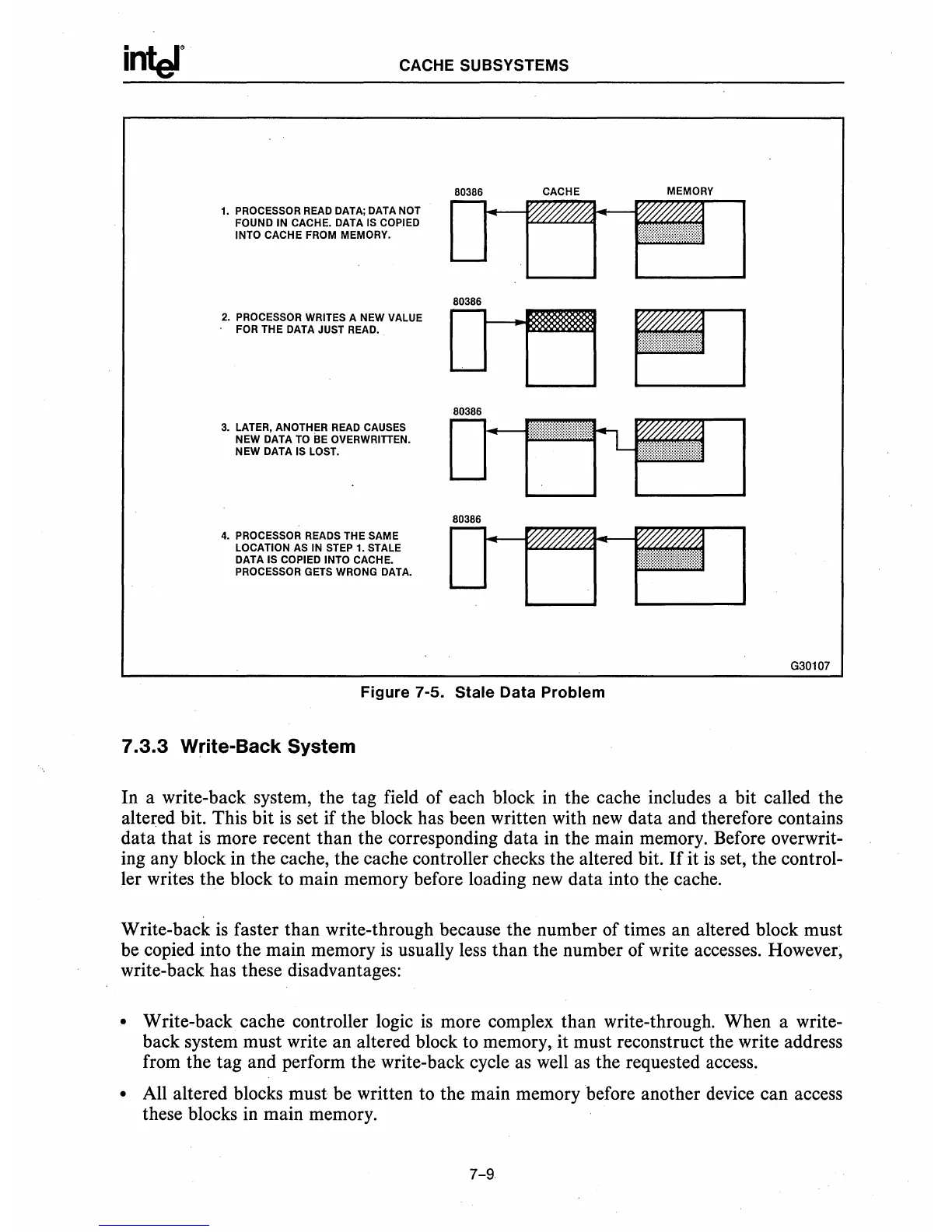

Figure 7-5. Stale Data Problem
7.3.3 Write-Back System
G30107
In a write-back system, the tag field of each block in the cache includes a bit called the
altered bit. This bit is set if the block has been written with new data and therefore contains
data that is more recent than the corresponding data in the main memory. Before overwrit-
ing any block in the cache, the cache controller checks the altered bit. If it is set, the control-
ler writes the block to main memory before loading new data into the cache.
Write-back is faster than write-through because the number of times an altered block must
be copied into the main memory is usually less than the number of write accesses. However,
write-back has these disadvantages:
• Write-back cache controller logic is more complex than write-through. When a write-
back system must write an altered block to memory, it must reconstruct the write address
from the tag and perform the write-back cycle as well as the requested access.
• All altered blocks must be written to the main memory before another device can access
these blocks in main memory.
7-9
