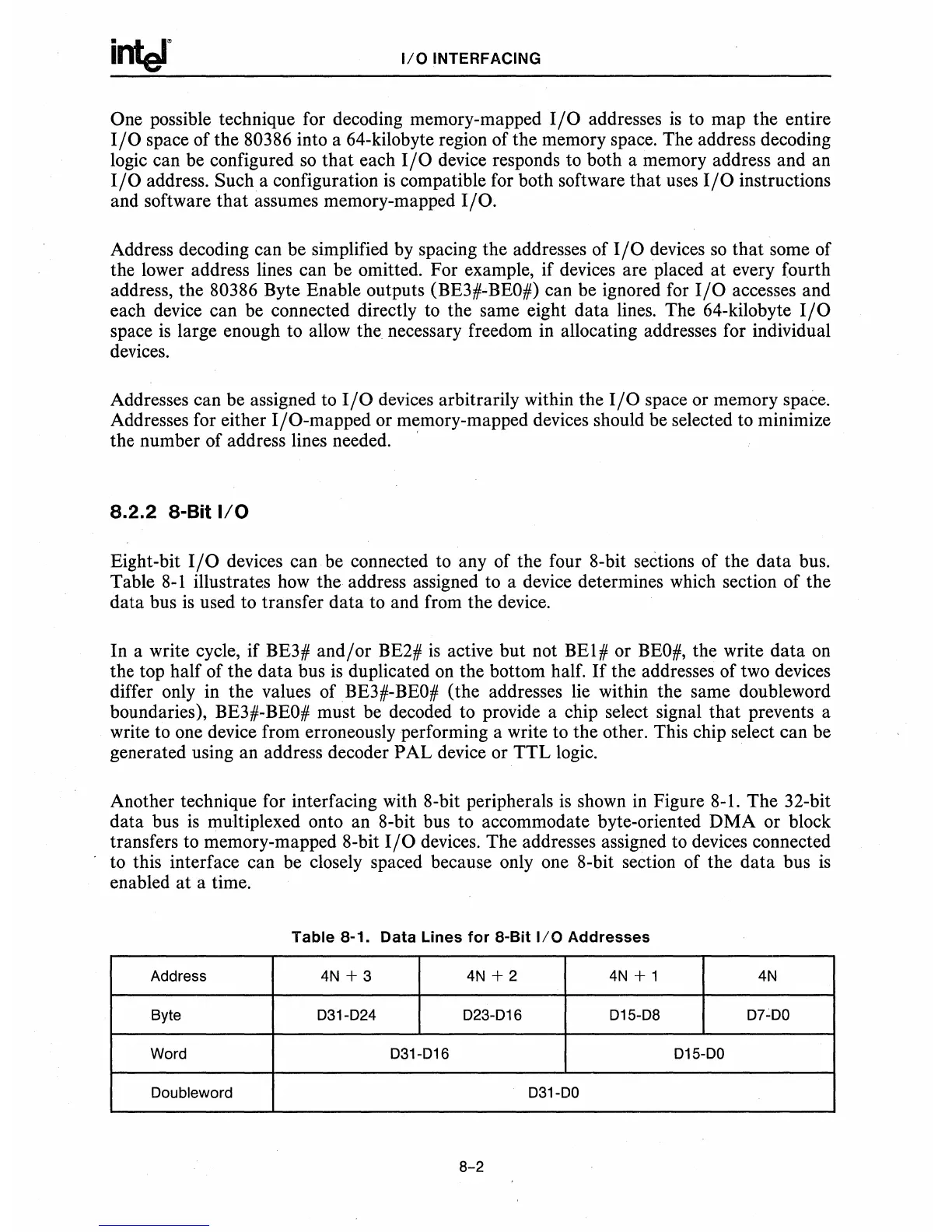

INTERFACING
One possible technique for decoding memory-mapped
I/O
addresses
is
to map the entire
I/O
space of the 80386 into a 64-kilobyte region of the memory space. The address decoding
logic can be configured
so
that
each
I/O
device responds to both a memory address and an
I/O
address. Such a configuration
is
compatible for both software that
uses
I/O
instructions
and software
that
assumes memory-mapped
I/O.
Address decoding can be simplified by spacing the addresses of
I/O
devices
so
that some of
the lower address lines can be omitted. For example, if devices are placed at every fourth
address, the 80386 Byte Enable outputs (BE3#-BEO#) can be ignored for
I/O
accesses and
each device can be connected directly to the same eight data lines. The 64-kilobyte
I/O
space
is
large enough to allow the necessary freedom
in
allocating addresses for individual
devices.
Addresses can be assigned to
I/O
devices arbitrarily within the
I/O
space or memory space.
Addresses for either I/O-mapped or memory-mapped devices should be selected to minimize
the number of address lines needed. .
8.2.2
8-Bit
I/O
Eight-bit
I/O
devices can be connected to any of the four 8-bit sections of the data bus.
Table
8-1
illustrates
how
the address assigned to a device determines which section of the
data bus
is
used to transfer data to and from the device.
In a write cycle, if BE3#
and/or
BE2#
is
active but not BE1# or
BEO#,
the write data
on
the top half of the data bus
is
duplicated
on
the bottom half.
If
the addresses of two devices
differ only
in
the values of BE3#-BEO# (the addresses lie within the same doubleword
boundaries), BE3#-BEO# must be decoded to provide a chip select signal that prevents a
write to one device from erroneously performing a write to the other. This chip select can be
generated using an address decoder PAL device or
TTL
logic.
Another technique for interfacing with 8-bit peripherals
is
shown
in
Figure 8-1. The 32-bit
data bus
is
multiplexed onto an 8-bit bus to accommodate byte-oriented DMA or block
transfers to memory-mapped 8-bit
I/O
devices. The addresses assigned to devices connected
to this interface can be closely spaced because only one 8-bit section of the data bus
is
enabled
at
a time.
Table
8-1.
Data
Lines
for
8-Bit
liD
Addresses
Address
4N
+ 3
4N
+ 2
4N
+ 1
4N
Byte 031-024 023-016 015-08
07-00
Word 031-016 015-00
Ooubleword
031-00
8-2
