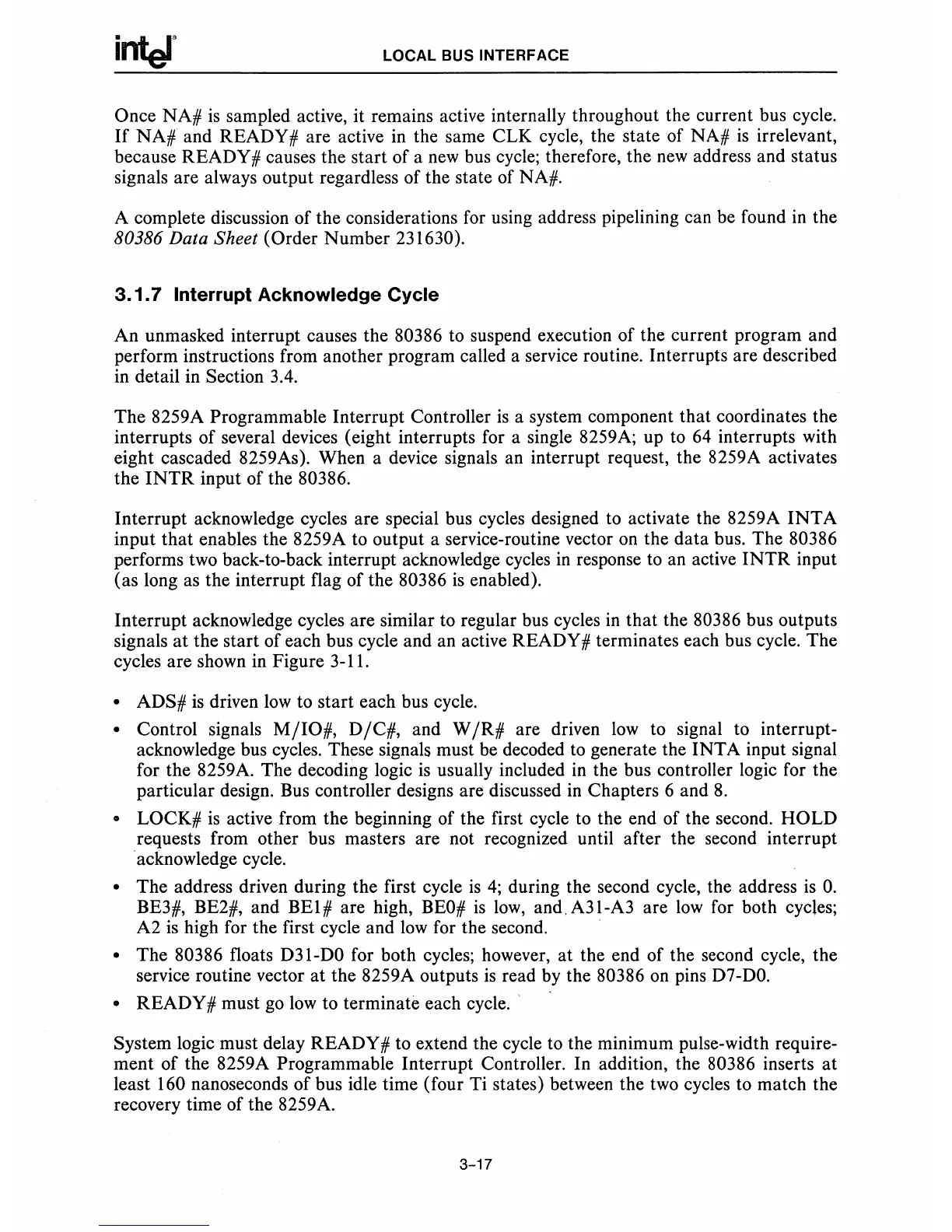

inter
LOCAL
BUS
INTERFACE
Once NA#
is
sampled active,
it
remains active internally throughout the current bus cycle.
If
NA# and READY# are active in the same CLK cycle, the state of NA#
is
irrelevant,
because READY # causes the start of a
new
bus cycle; therefore, the
new
address and status
signals are always output regardless of the state of NA#.
A complete discussion of the considerations for using address pipelining can be found
in
the
80386 Data Sheet (Order Number 231630).
3.1.7
Interrupt Acknowledge Cycle
An unmasked interrupt causes the 80386 to suspend execution of the current program and
perform instructions from another program called a service routine. Interrupts are described
in detail in Section 3.4.
The 8259A Programmable Interrupt Controller
is
a system component that coordinates the
interrupts of several devices (eight interrupts for a single 8259A; up to
64
interrupts with
eight cascaded 8259As). When a device signals an interrupt request, the 8259A activates
the
INTR
input of the 80386.
Interrupt acknowledge cycles are special bus cycles designed to activate the 8259A
INTA
input that enables the 8259A to output a service-routine vector
on
the data bus. The 80386
performs two back-to-back interrupt acknowledge
cycles
in
response
to
an
active
INTR
input
(as long
as
the interrupt flag of the 80386
is
enabled).
Interrupt acknowledge cycles are similar to regular bus cycles
in
that the 80386 bus outputs
signals
at
the start of each bus cycle and an active READY # terminates each bus cycle. The
cycles are shown in Figure 3-11.
• ADS#
is
driven
low
to start each bus cycle.
• Control signals MjIO#, DjC#, and W jR# are driven
low
to signal to interrupt-
acknowledge bus cycles. These signals must
be
decoded
to
generate the
INT
A input signal
for the 8259A. The decoding logic
is
usually included
in
the bus controller logic for the
particular design. Bus controller designs are discussed
in
Chapters 6 and
8.
o LOCK#
is
active from the beginning of the first cycle to the end of the second. HOLD
requests from other bus masters are not recognized until after the second interrupt
'acknowledge cycle.
• The address driven during the first cycle
is
4;
during the second cycle, the address
is
O.
BE3#, BE2#, and BE1# are high,
BEO#
is
low,
and,A31-A3 are
low
for both cycles;
A2
is
high for the first cycle and
low
for the second. '
• The 80386 floats
D31-DO
for both cycles; however, at the end of the second cycle, the
service routine vector
at
the 8259A outputs
is
read
by
the 80386
on
pins
D7-DO.
• READY # must
go
low
to terminate each cycle. '
System logic must delay READY # to extend the cycle to the minimum pulse-width require-
ment of the 8259A Programmable Interrupt Controller. In addition, the
80386 inserts
at
least 160 nanoseconds of bus idle time (four Ti states) between the
two
cycles to match the
recovery time of the 8259A.
3-17
