8XC196KC/8XC196KC20
DC EPROM PROGRAMMING CHARACTERISTICS
Symbol Description Min Max Units
I
PP
V
PP
Supply Current (When Programming) 100 mA
NOTE:
Do not apply V
PP
until V
CC
is stable and within specifications and the oscillator/clock has stabilized or the device may be
damaged.
EPROM PROGRAMMING WAVEFORMS

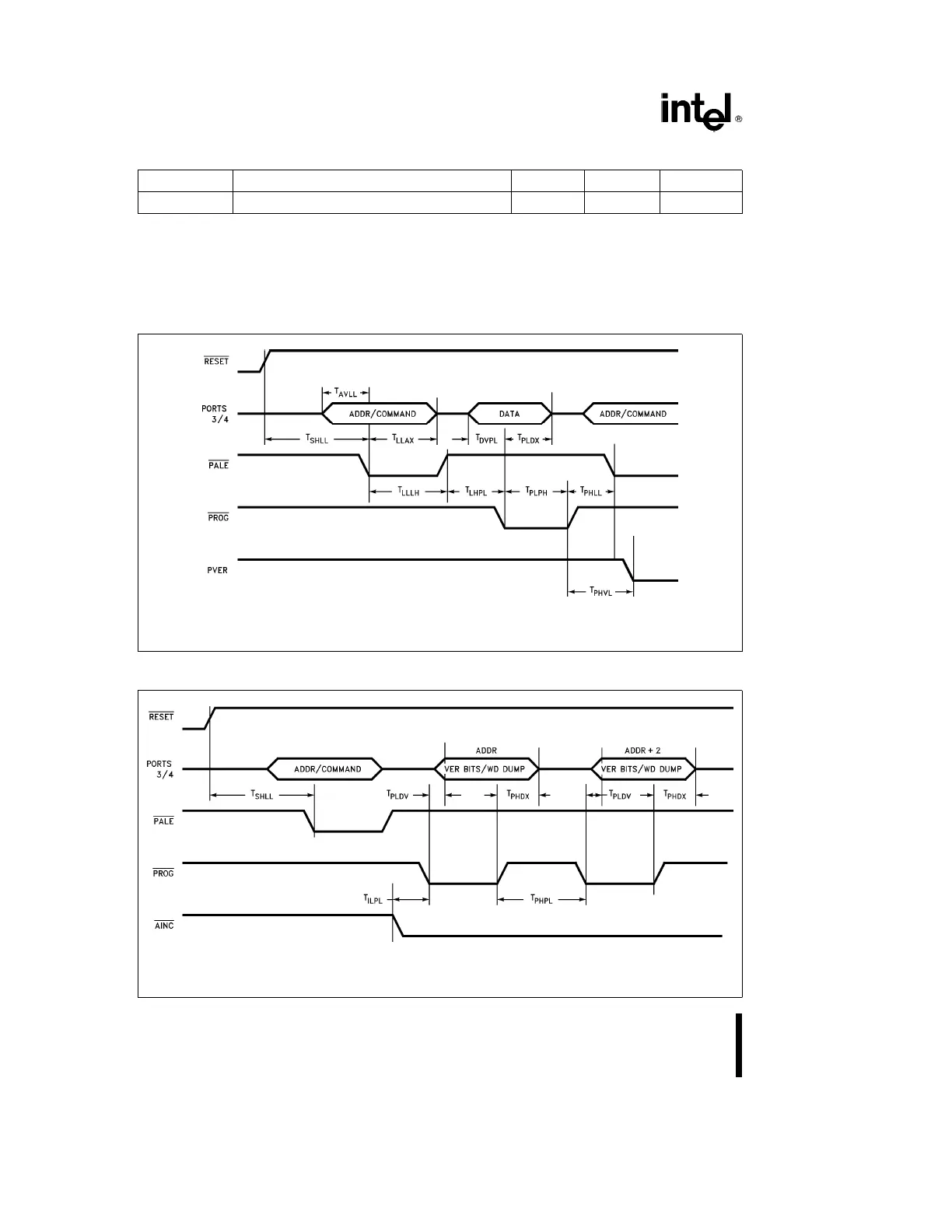

SLAVE PROGRAMMING MODE DATA PROGRAM MODE WITH SINGLE PROGRAM PULSE
270942–27
NOTE:
P3.0 must be high (‘‘1’’)
SLAVE PROGRAMMING MODE IN WORD DUMP WITH AUTO INCREMENT
270942–28
NOTE:
P3.0 must be low (‘‘0’’)
