Intel Desktop Board DH67BL Product Guide
32

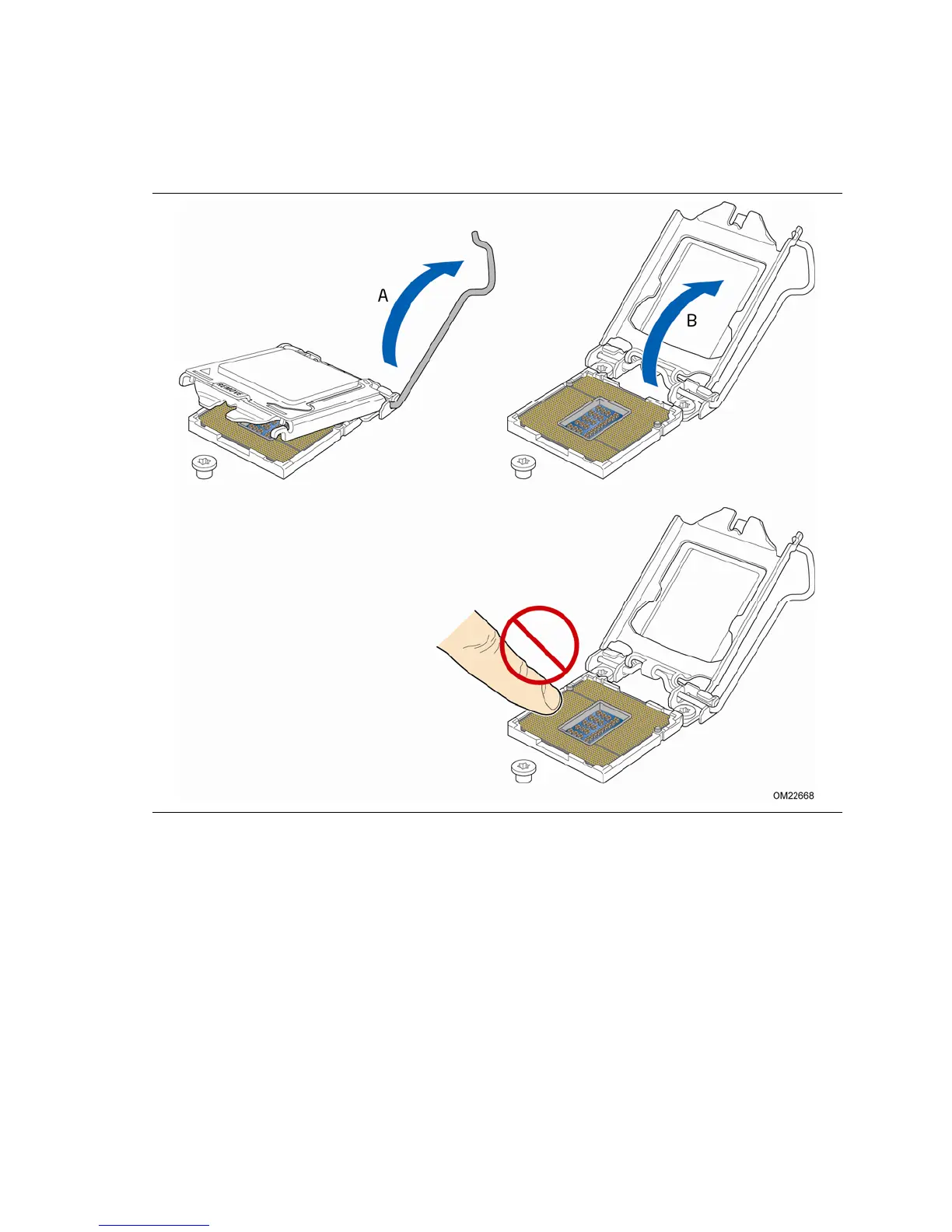

3. Rotate the socket lever to lift the load plate away from the socket (Figure 7, A).
Make sure that the load plate is in the fully open position (Figure 7, B) while being
careful not to damage adjacent components
. Do not touch the socket contacts.
Figure 7. Lift the Load Plate
