Intel Desktop Board DH67CL Product Guide
18
Table 3. Audio Jack Retasking Support
Audio
Jack
Micro-
phone
Head-
phones
Front
Speakers
Line In
Micro-
phone/
Side
Surround
Rear
Surround
Center/
Subwoofer
FP Green Default
FP Pink Default
BP Blue Default
BP Green Control
panel
Default
BP Pink Default
BP Black Default
BP Orange Default
LAN Subsystem
The LAN subsystem includes:
• Intel 82579V Gigabit (10/100/1000 Mb/s) Ethernet LAN controller
• RJ-45 LAN connector with integrated status LEDs
LAN software and drivers are available at http://downloadcenter.intel.com/
.
Two LEDs are built into the RJ-45 LAN connector located on the back panel (see
Figure 2). These LEDs indicate the status of the LAN as shown in Table 4.

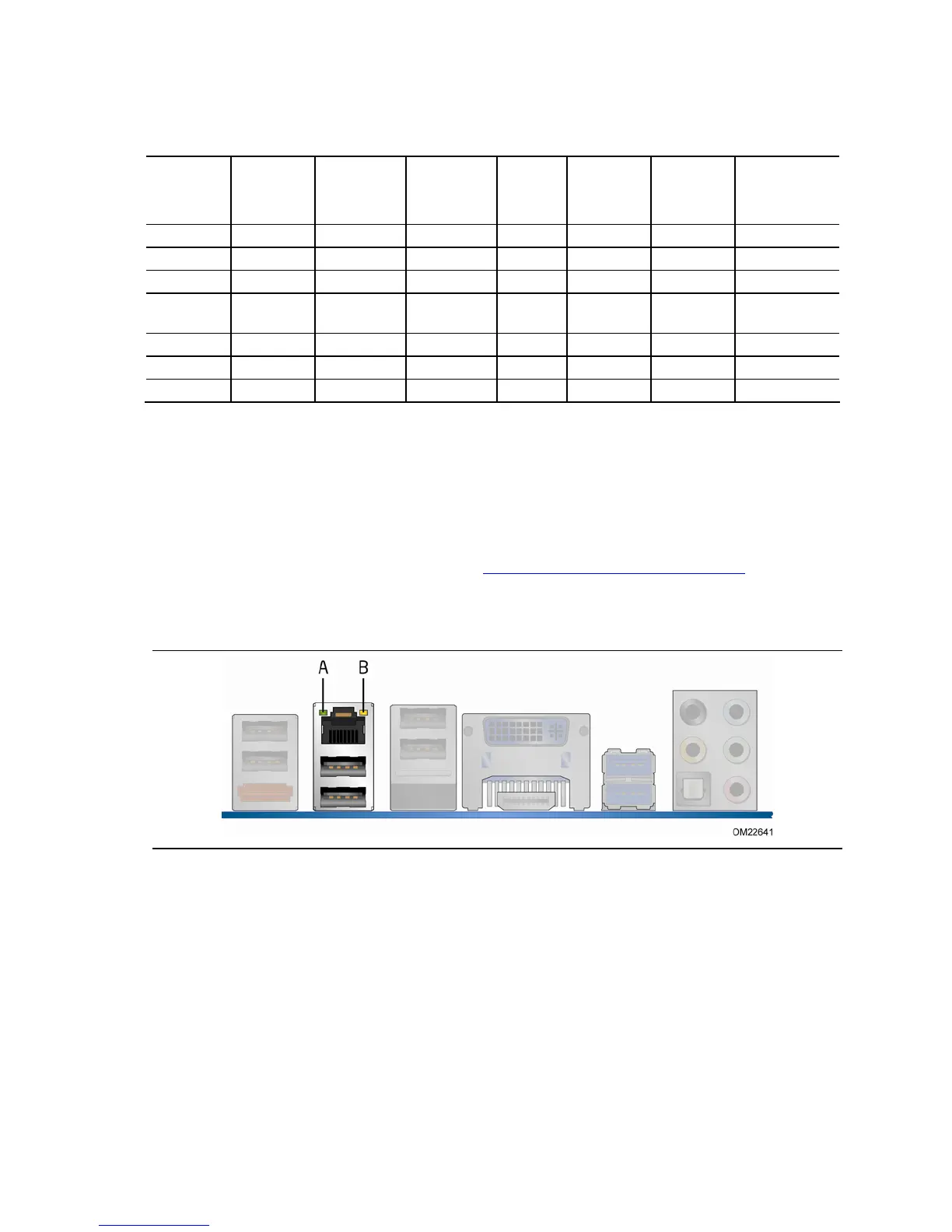

Figure 2. LAN Connector LEDs
