Intel BOXDH67CL

Intel Desktop Board DH67CL Product Guide
38
Installing DIMMs

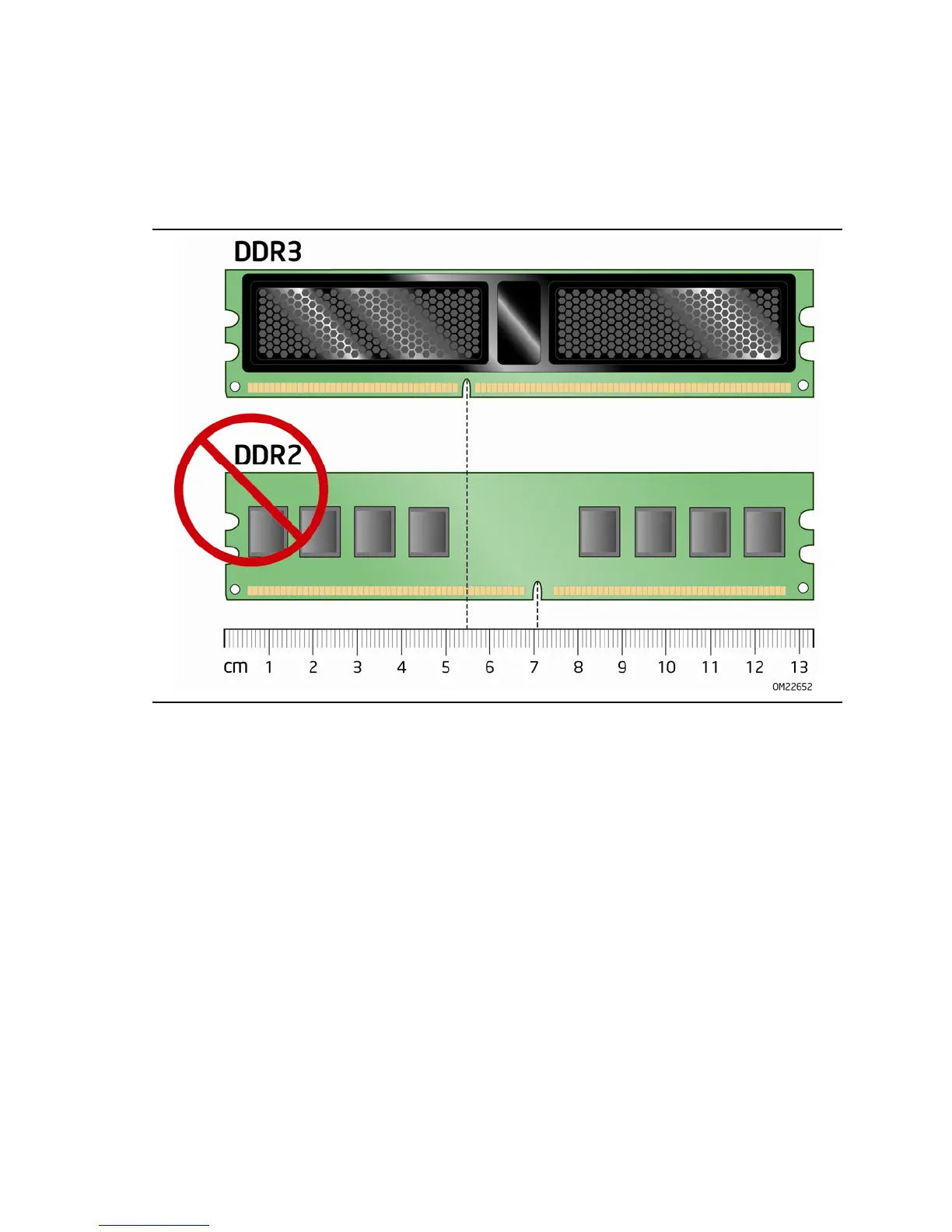

To make sure you have the correct DIMM, place it on the illustration of the DDR3
DIMM in Figure 15. All the notches should match with the DDR3 DIMM.
Figure 15. Use DDR3 DIMMs
