Intel Desktop Board DP55KG Product Guide
48
To install two linked PCI Express graphics cards:
1. Observe the precautions in "Before You Begin" on page 31.
2. In
stall the first card in the PCI Express x16 connector as described in “Installing a
PCI
Express x16 Graphics Card” on page 45.
3. Place the se
cond card in the PCI Express x8 connector (Figure 25, A) and press
dow
n on the card until it is completely seated in the connector and the card
retention notch on the card snaps into place around the retention mechanism pin
on the connector.
4. Secure the card’s metal bracket to the chassis back panel with a screw
(Figure 25, B).
5. Con
nect the two cards together with the SLI bridge (Figure 25, C) as shown.
6. Con
nect the monitor cable to the graphics card according to the manufacturer’s
instructions.

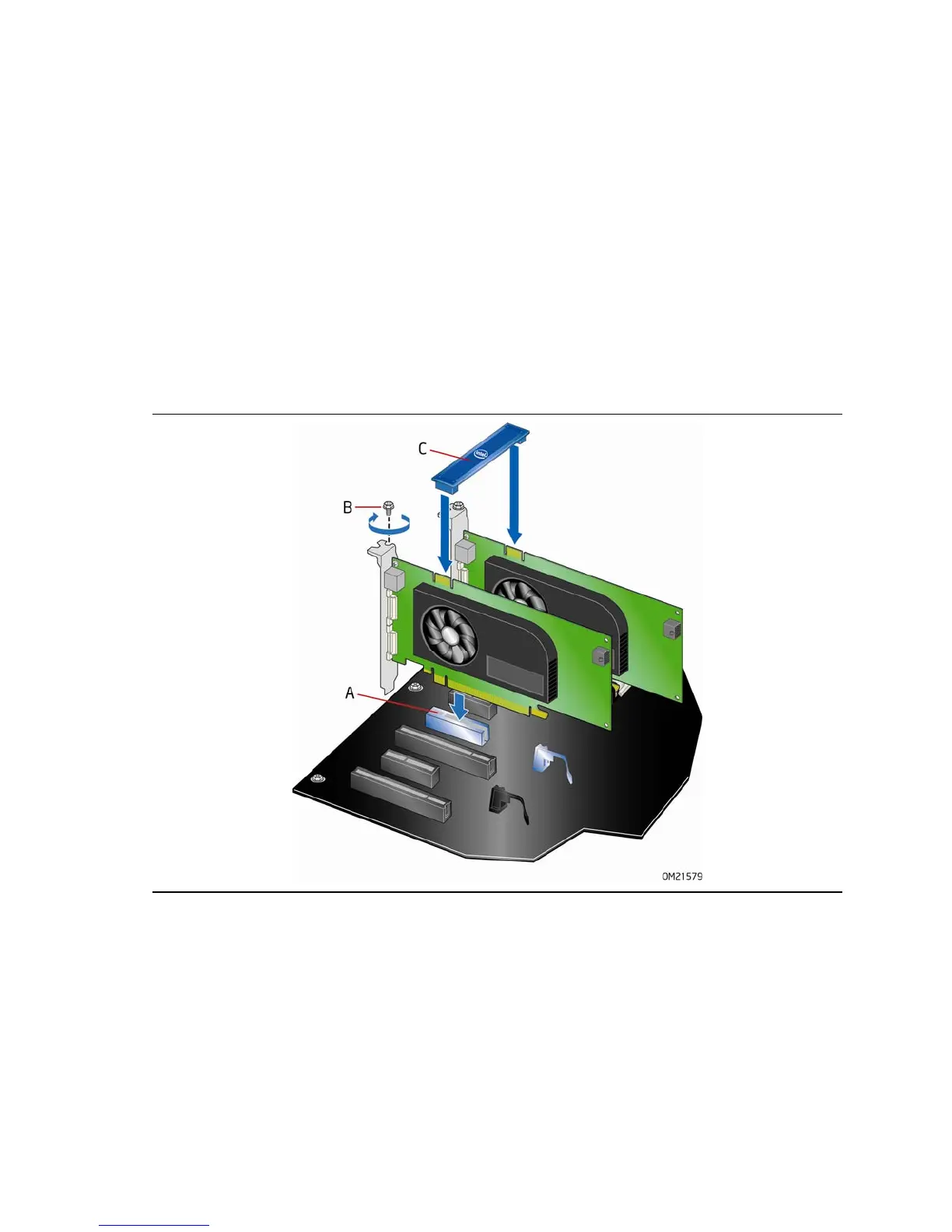

Figure 25. Installing Linked PCI Express Graphics Cards
For more complete installation and configuration information refer to the
documentation supplied by the graphics card manufacturer or visit their website.
