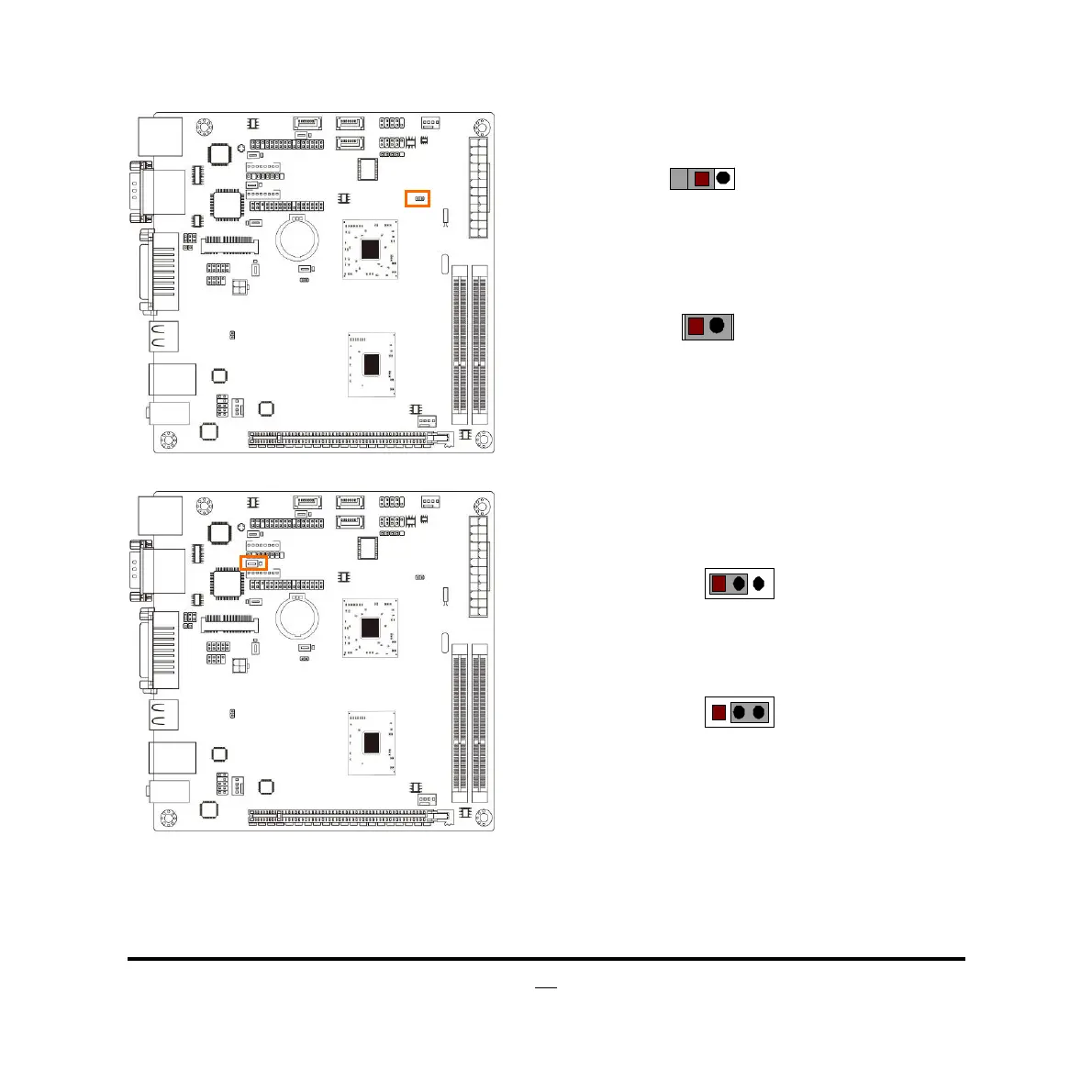

(5) JP4 (2-pin): ME_Update Function Select
1-2 Closed: When updating ME;
JP4
1-2 Open:
Normal;
JP4
1
2
1
2
(6) JP5 (3-pin):LVDS1 Backlight 12V/5V Select
JP5
1-2 closed: LVDS1 Backlight = 12 V;
JP5
1
1
3
3
2-3 closed: LVDS1 Backlight = 5 V;
