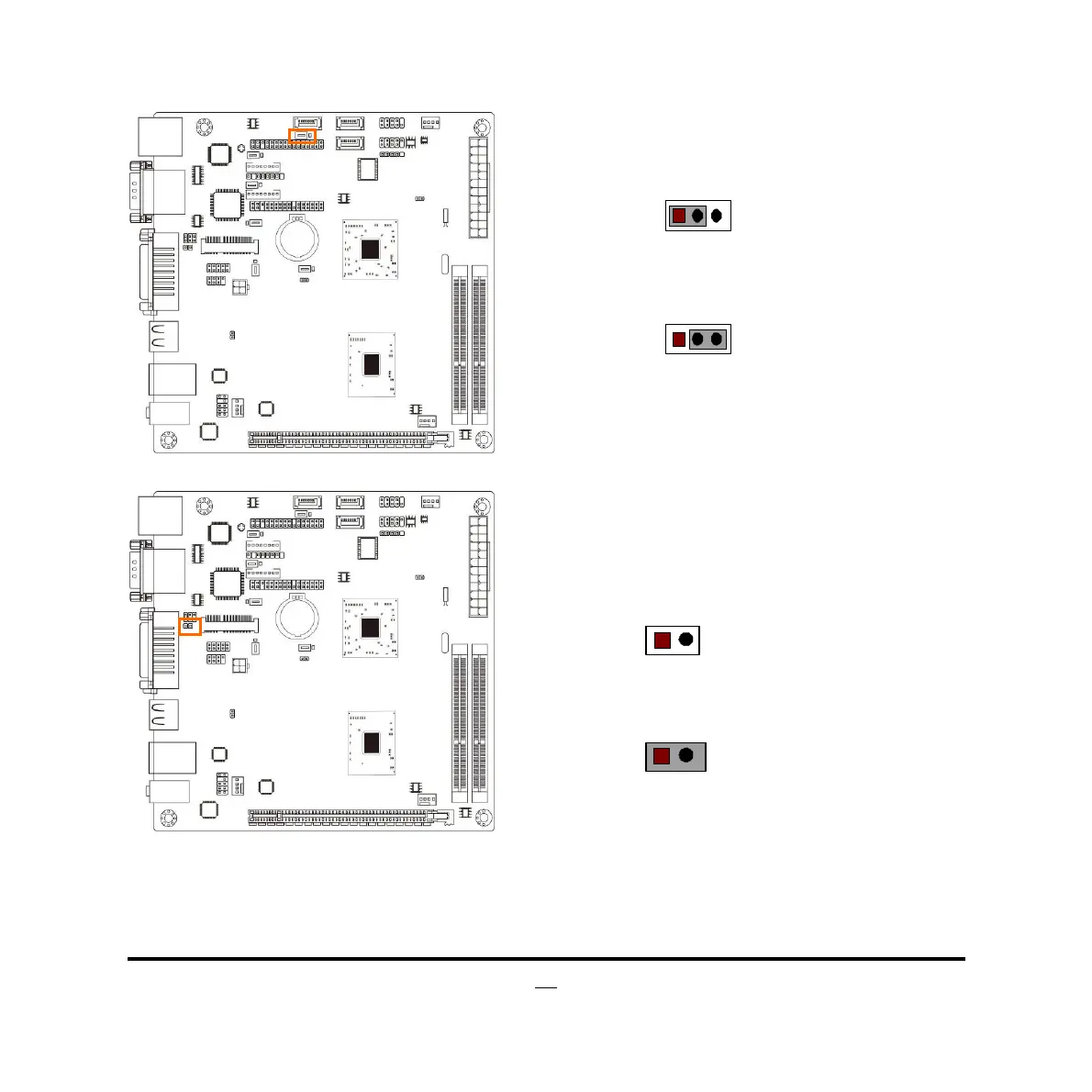

(9) JP8 (3-pin): LVDS2 PVCC 5V/3.3V Select
2-3 closed: LVDS2 PVCC=3.3V
JP8
1-2 closed: LVDS2 PVCC= 5V;
JP8
1
1
3
3
(10)COPEN (2-pin): Case Open Message Display Function Select
1-2 closed : Case Open
COPEN
COPEN
12
1-2 Open: Normal;
12
Pin 1-2 shorted: Case open display function enabled. Use needs to enter BIOS and
enable
‘
Case Open Detect
’
function. In this case if you case is removed, next time
when you restart your computer a message will be displayed onscreen to inform you
of this.
