Intel Celeron 847 User Manual

4

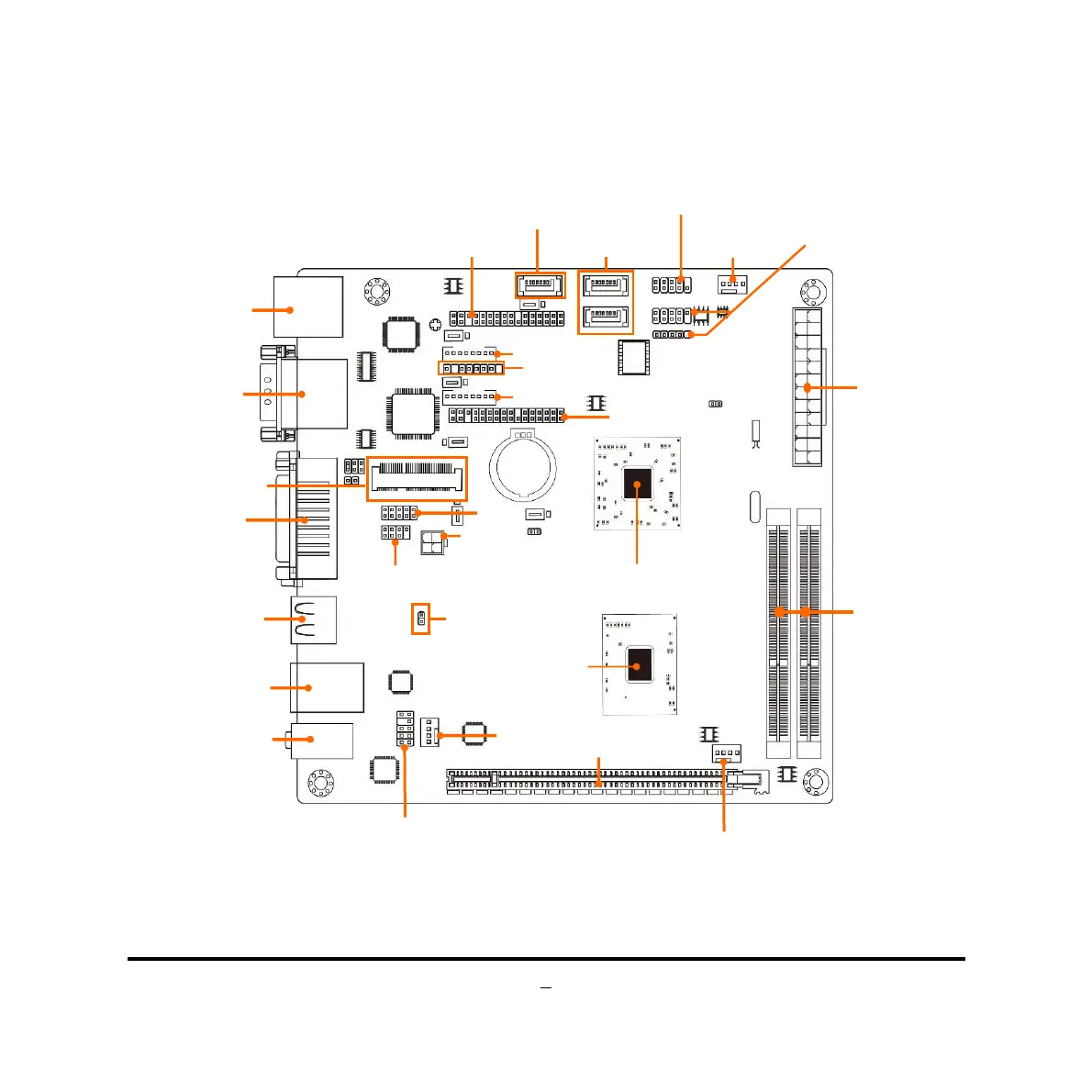

Motherboard Internal Diagram
USB 2.0 Heade
r
ATX Powe
r
connecto
r
DDRIII SODIMM Slot x 2
（DDRIII 1066
/
1333）
DVI-D Port
over VGA Port
Audio Connecto
r
Intel Celeron
847 CPU
Intel NM70 Chi
p
set
PCI Express 2.0 x16 Slot
LVDS1 Heade
r
Front Panel
Audio Heade
r
Front Panel Heade
r
CPUFAN Header
SATAII Ports
(
SATA2/3
)
RJ-45 Port over
USB 2.0 Ports
Serial Ports
M
ini-PCI
E
/mSATA
Slot
USB 3.0 Ports
over
HDMI Port
INVERTER2
SYSFA
N
1
H
eade
r
SATAIII Port
(
SATA1
)
LAN Activity
LED Header
USB 2.0 Ports
ATX12V
Powe
r
connecto
r
S
YSFAN2 Header
GPIO
Heade
r
LVDS2 Heade
r
INVERTER1
PS2_CON Header
CIR Header

Intel Celeron 847 Specifications

General

Number of Cores	2
Number of Threads	2
L3 Cache	2 MB
Manufacturing Process	32 nm
TDP	17 W
Graphics Base Frequency	350 MHz
Graphics Max Dynamic Frequency	800 MHz
Max Memory Size	16 GB
Max Memory Channels	2
PCI Express Revision	2.0
Instruction Set	64-bit
Instruction Set Extensions	SSE4.1, SSE4.2
Embedded Options Available	Yes
Lithography	32 nm
CPU Socket	FCBGA1023
Clock Speed	1.1 GHz
Integrated Graphics	Intel® HD Graphics
Memory Types	DDR3 1066/1333
