Intel D2500HN

Intel Desktop Board D2500HN Technical Product Specification
36
The amount of installed memory that can be used will vary based on add-in cards and
BIOS settings. Figure 8 shows a schematic of the system memory map. All installed
system memory can be used when there is no overlap of system addresses.

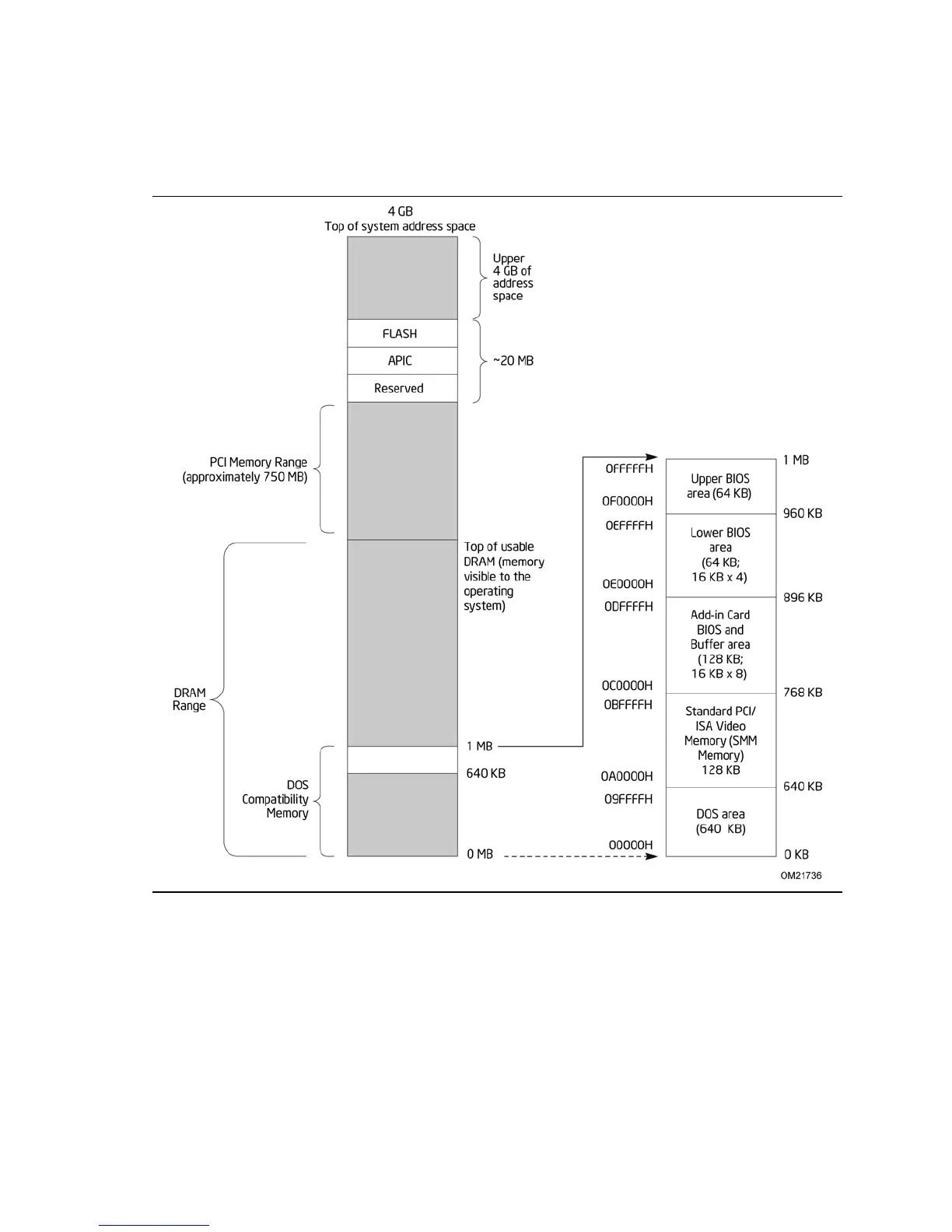

Figure 8. Detailed System Memory Address Map
