2.2.1 Back Panel
2.2.1.1 Back Panel Connectors

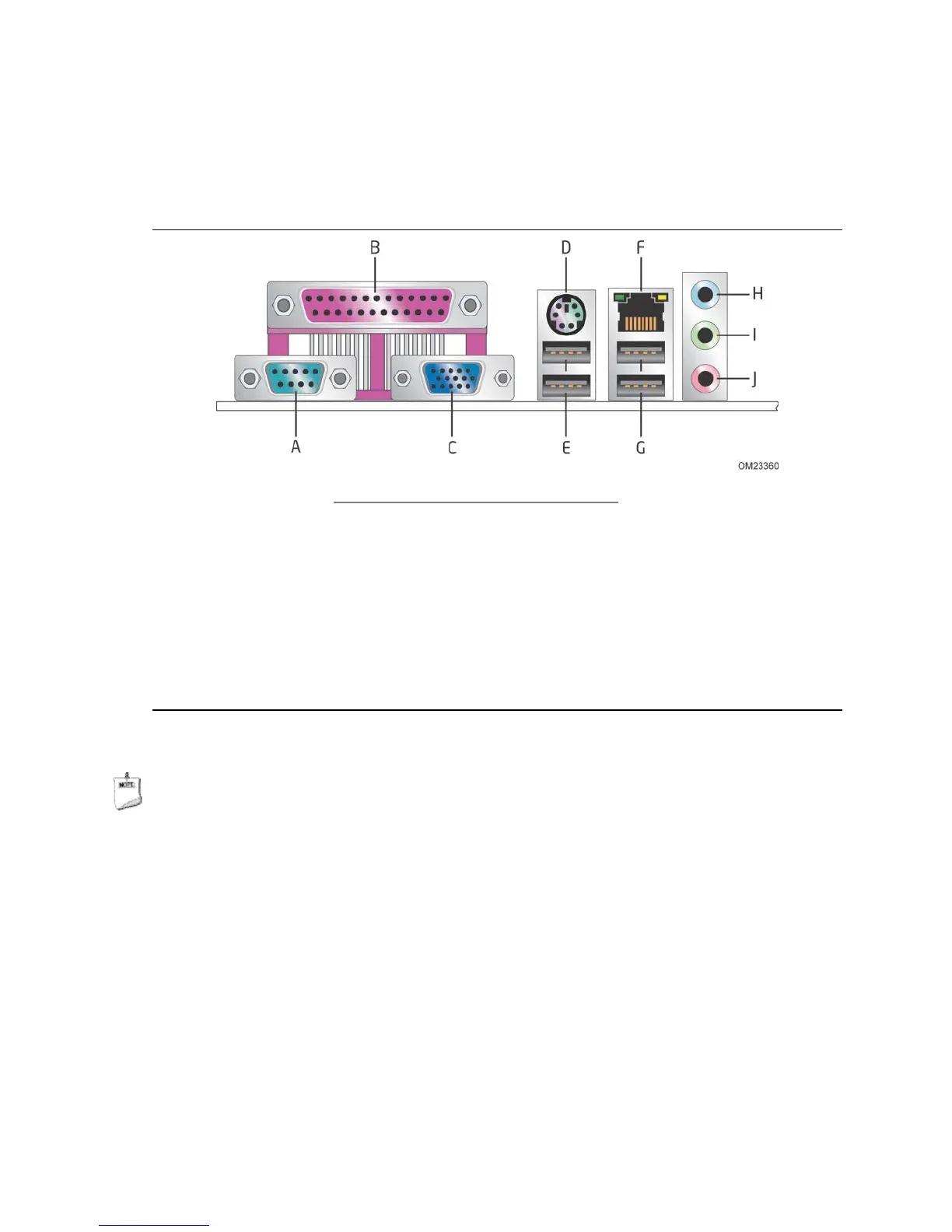

Figure 9 shows the location of the back panel connectors.
Item Description
A Serial port
B Parallel port
C VGA port
D PS/2 keyboard/mouse port
E USB ports
F LAN port
G USB ports
H Line in
I Line out
J Mic in
Figure 9. Back Panel Connectors
NOTE
The back panel audio line out connector is designed to power headphones or amplified
speakers only. Poor audio quality occurs if passive (non-amplified) speakers are
connected to this output.
