2.4 Mechanical Considerations
2.4.1 Form Factor
The board is designed to fit into a mini-ITX or microATX form-factor chassis. Figure 14
illustrates the mechanical form factor for the board. Dimensions are given in inches
[millimeters]. The outer dimensions are 6.7 inches by 6.7 inches [170 millimeters by
170 millimeters]. Location of the I/O connectors and mounting holes are in
compliance with the microATX specification.

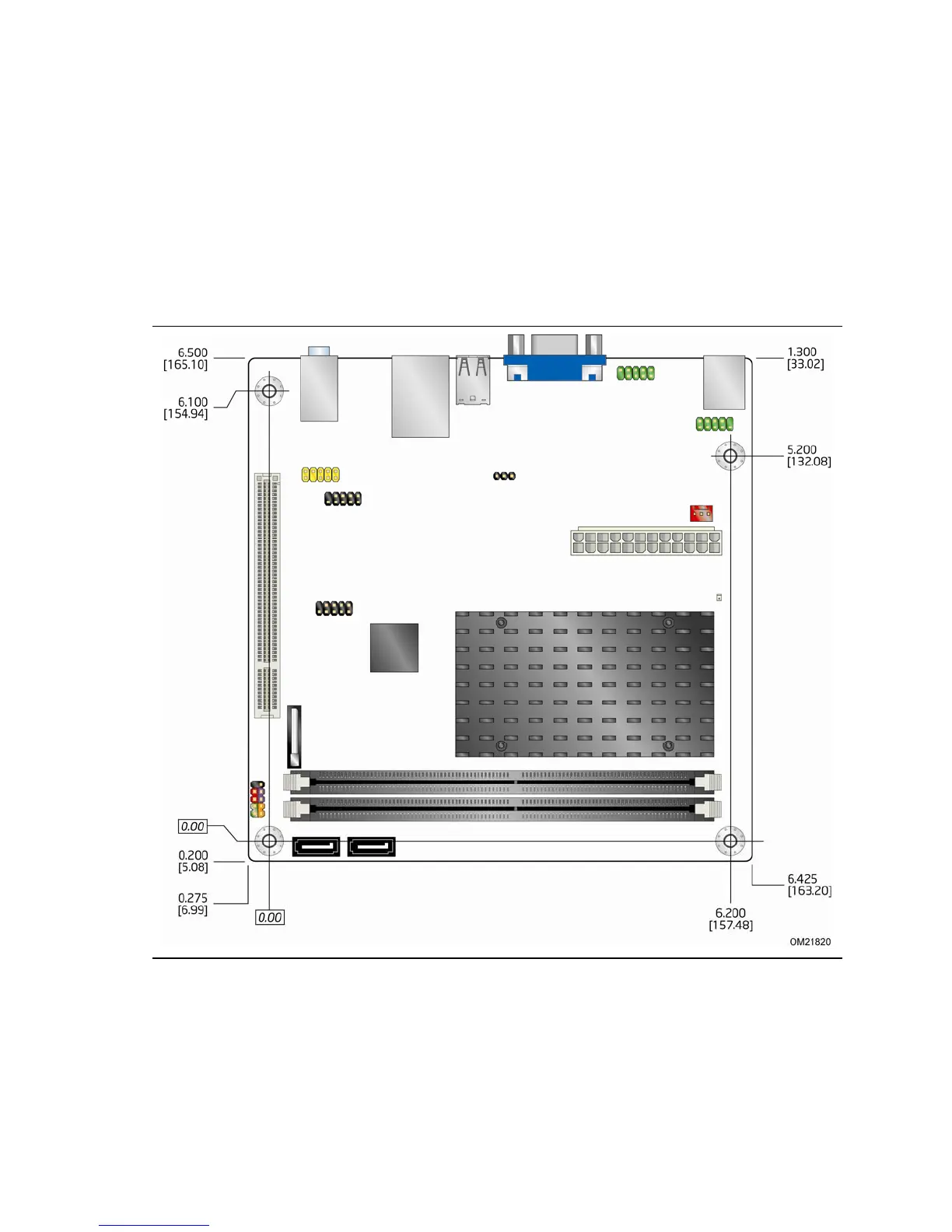

Figure 14. Board Dimensions
