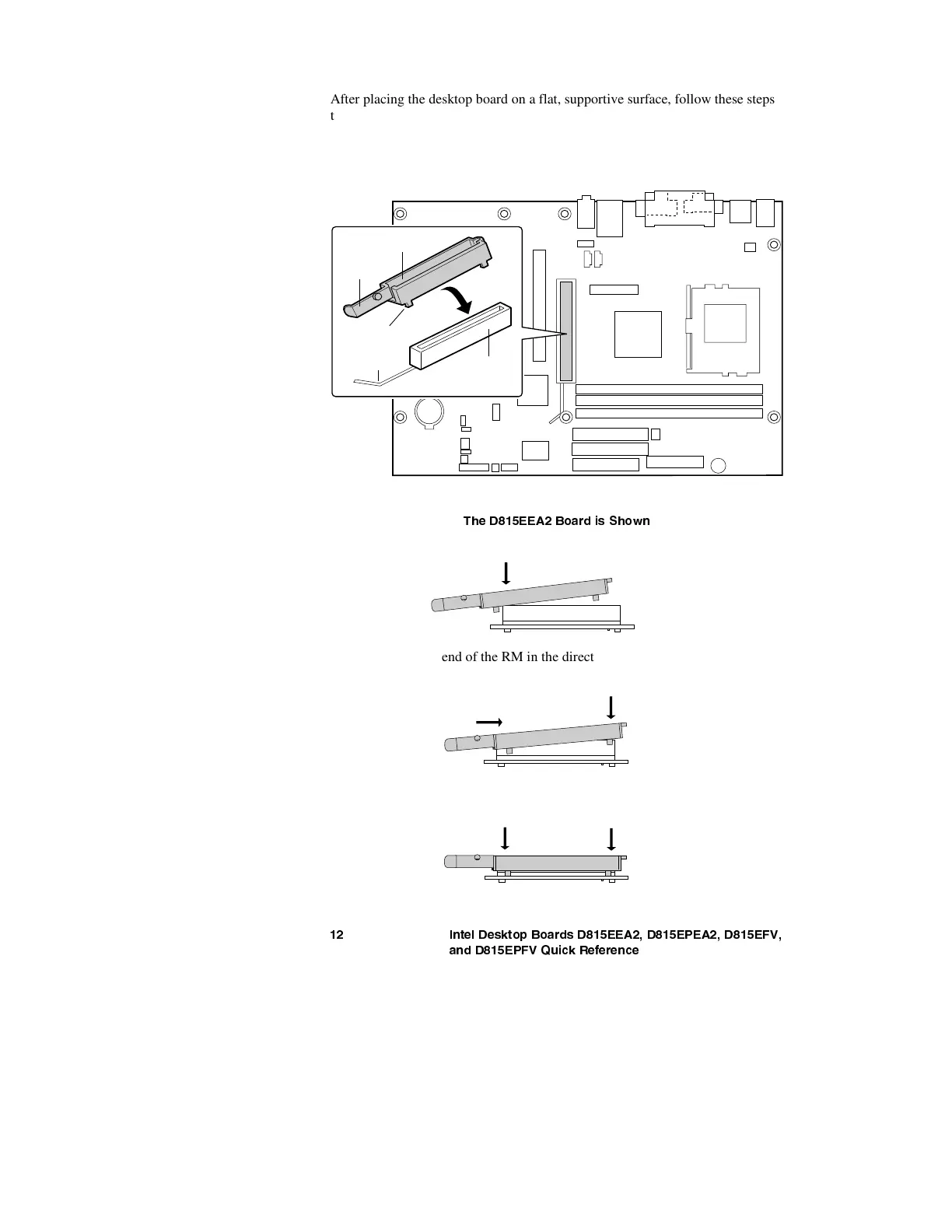

After placing the desktop board on a flat, supportive surface, follow these steps
to attach the RM (A) to the AGP connector (B):
1. Locate the AGP connector (J8C1) on the desktop board as shown below.
Note that the desktop board’s silkscreen (C) indicates the correct final
position of the lever on the RM (E).
OM11624
C
B
A
D
E
5IF%&&"#PBSEJT4IPXO
2. Position the RM over the AGP connector as shown below.
OM10111
3. Push the lever end of the RM in the direction of the arrow until the two rear
tabs (D) spread over the end of the AGP connector.
OM10180
4. Push the free end of the RM over the other end of the AGP connector and
press down until all four tabs snap underneath the AGP connector.
OM10181
