Intel D815EEA2 Quick Reference

*OUFM%FTLUPQ#PBSET%&&"%&1&"%&'7 
BOE%&1'72VJDL3FGFSFODF 

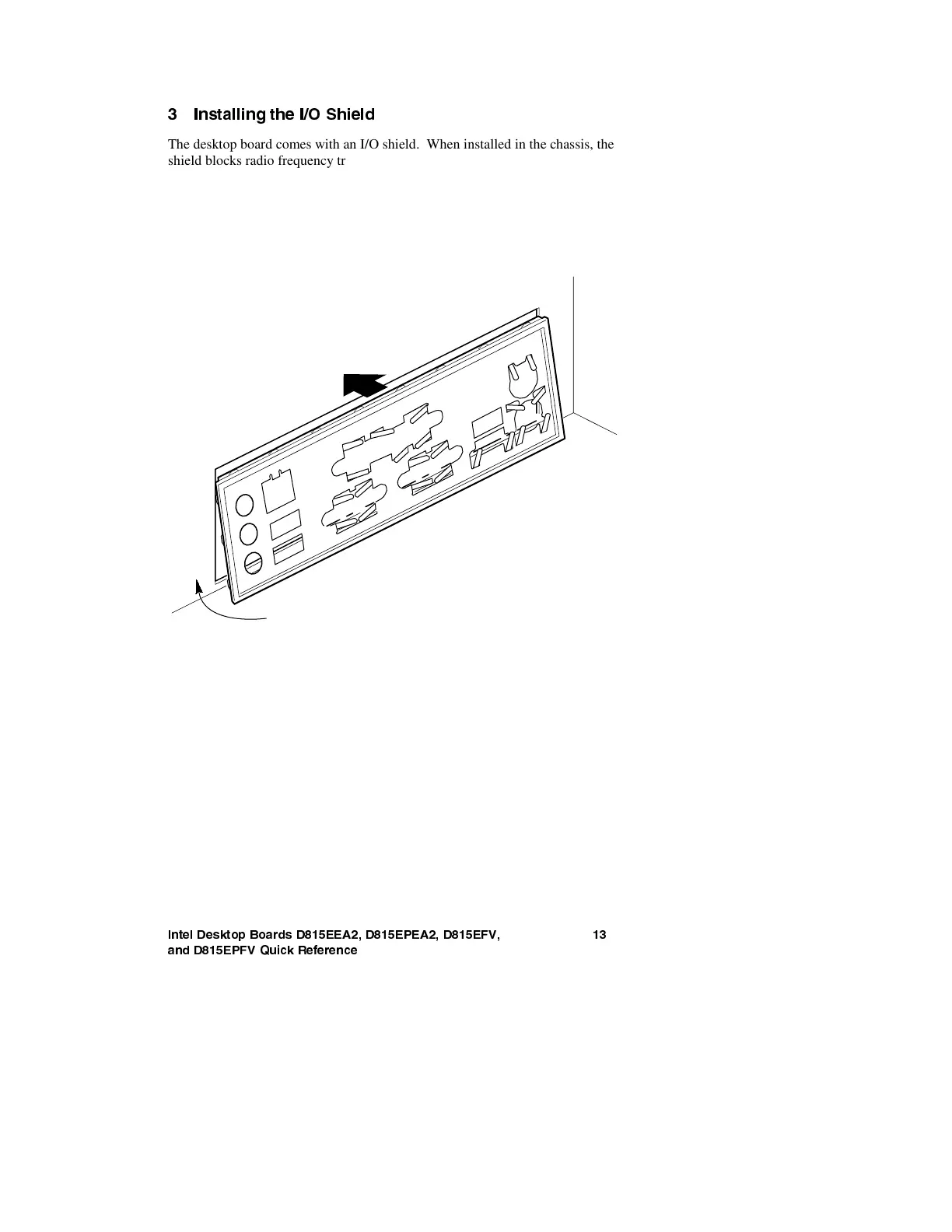

 *OTUBMMJOHUIF*04IJFME
The desktop board comes with an I/O shield. When installed in the chassis, the
shield blocks radio frequency transmissions, protects internal components from
dust and foreign objects, and promotes correct airflow within the chassis.
Install the I/O shield before installing the desktop board in the chassis. Place
the shield inside the chassis as shown in the following figure. Press the shield
into place so that it fits tightly and securely. If the shield doesn’t fit, obtain a
properly-sized shield from the chassis supplier.
OM11310

Intel D815EEA2 Specifications

General

Brand	Intel
Model	D815EEA2
Category	Motherboard
Language	English
