10 Intel Desktop Board D845PEBT2 Quick Reference

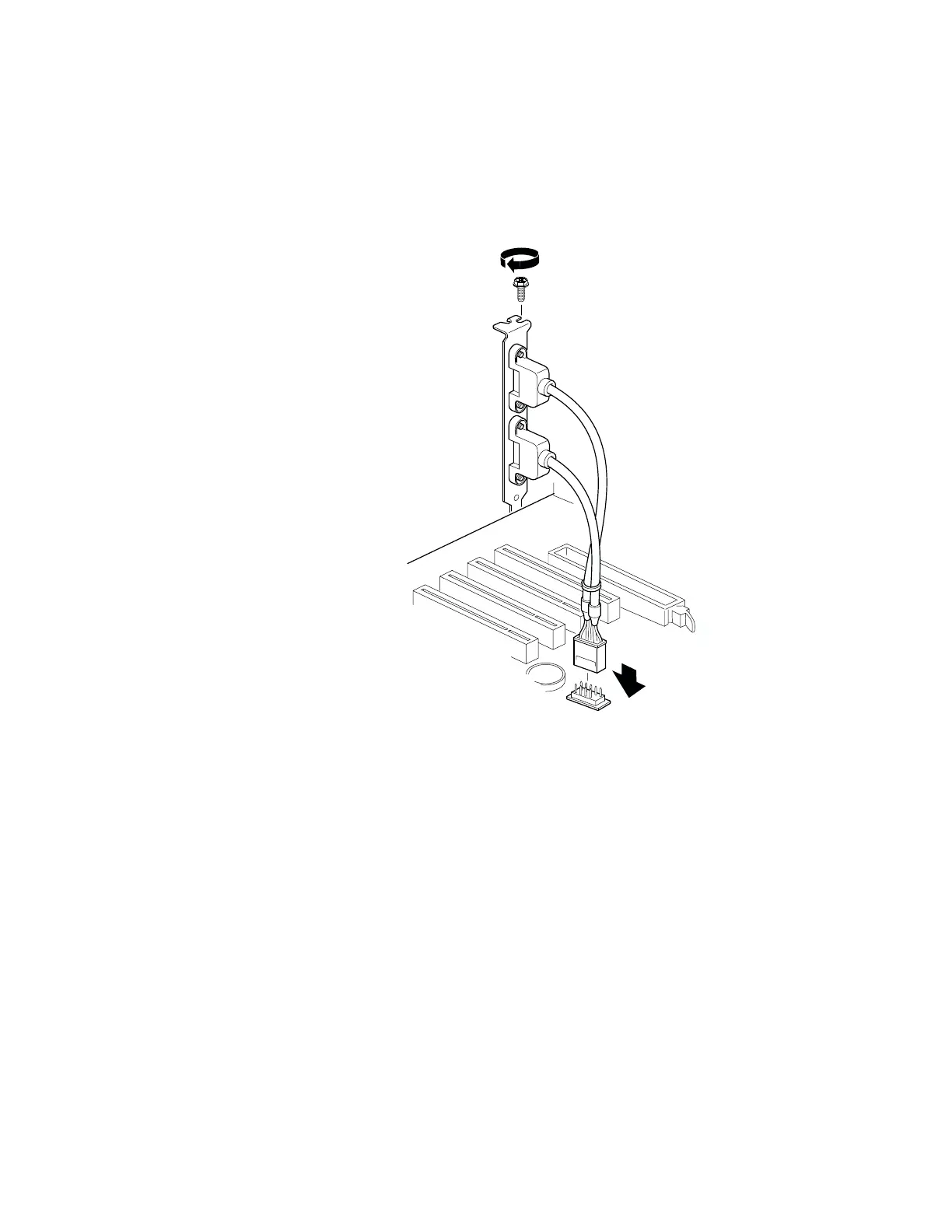

6 Installing the Rear Panel USB 2.0 Adapter
The Intel
®
boxed desktop board package includes a USB 2.0 adapter. Follow
these instructions to install the rear panel USB 2.0 adapter:
1. Observe the precautions in “Before You Begin” on page 3.
2. Attach the cable end with the connector to the front panel USB 2.0 header
on the desktop board.
3. Secure the cable’s metal bracket to the chassis back panel with a screw.
OM14822
