Intel Desktop Boards D865GBF/D865GLC Product Guide
32
Installing and Removing a Processor
Instructions on how to install the processor to the desktop board are given below.
Installing a Processor
CAUTION
Before installing or removing the processor, make sure that AC power has been removed by
unplugging the power cord from the computer; the standby power LED should not be lit (see
Figure 2 on page 24). Failure to do so could damage the processor and the board.
To install a processor, follow these instructions:
1. Observe the precautions in “Before You Begin” on page 27.
2. Locate the processor socket and raise the socket lever completely.
3. Install the processor so that the corner with the triangle marking (A) is aligned with the corner
where the lever is attached to the socket (see Figure 5).
4. Lower the lever to its original position.
OM15028
mPGA478B
mPGA478B
A
mPGA478B

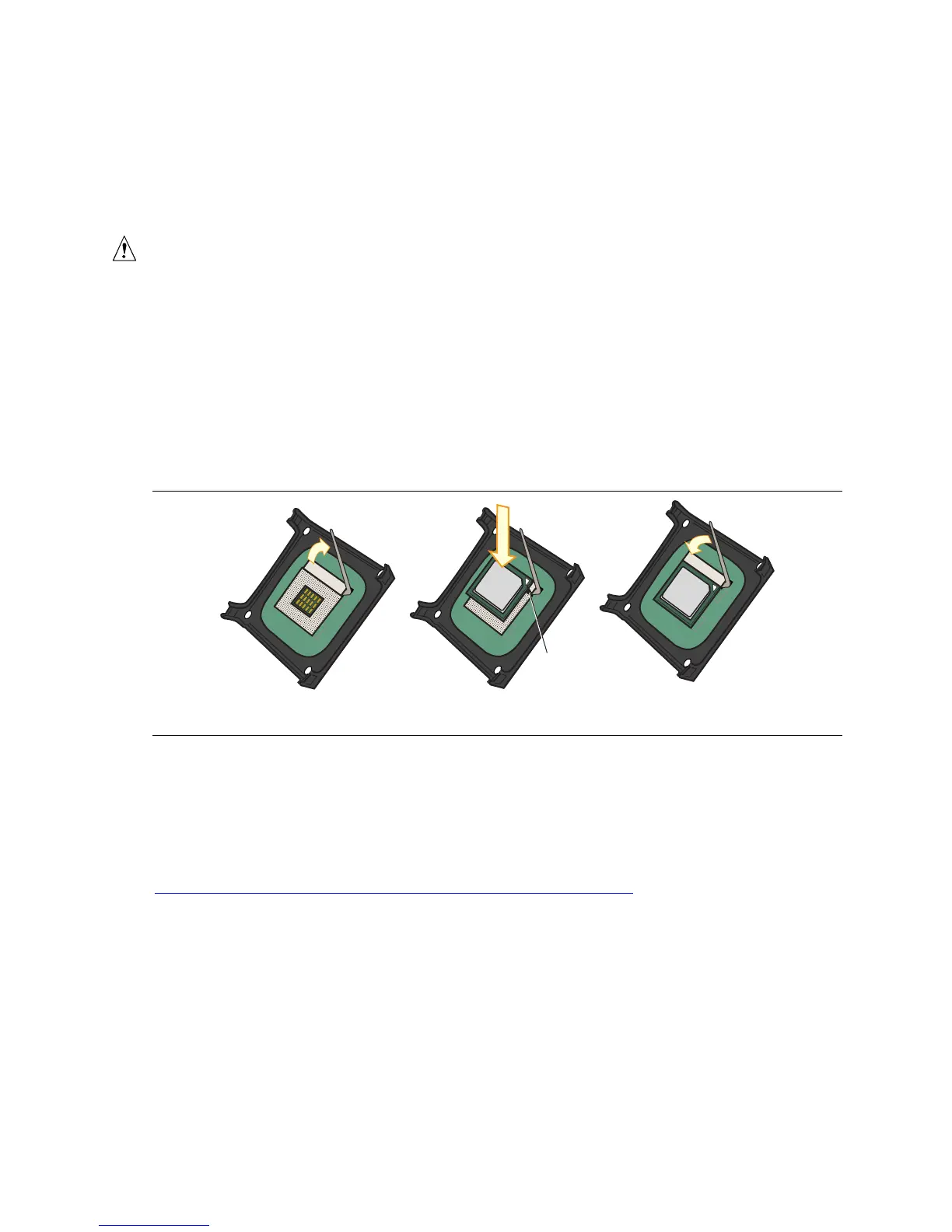

Figure 5. Installing a Processor
Installing the Processor Fan Heat Sink
Desktop Board D865GBF/D865GLC has an integrated processor fan heat sink retention mechanism
(RM). For instructions on how to install the processor fan heat sink to the integrated processor fan
heat sink RM, refer to the boxed processor manual or the Intel World Wide Web site at:
http://support.intel.com/support/processors/pentium4/intnotes478.htm
