Intel Desktop Boards D865GBF/D865GLC Product Guide
34
Installing and Removing Memory
CAUTION
To be fully compliant with all applicable Intel SDRAM memory specifications, the boards require
DIMMs that support the Serial Presence Detect (SPD) data structure. You can access the PC
Serial Presence Detect Specification at:
http://www.intel.com/technology/memory/pcsdram/spec/
Desktop Board D865GBF/D865GLC has four dual channel 184-pin DIMM sockets arranged as
DIMM 0 and DIMM 1 in both Channel A and Channel B, as shown in Figure 7 (color was added to
the DIMM sockets to show how to match DIMMs for dual channel configuration).
Refer to the “Main Memory” section on page 17 for memory requirements.
OM15230
DIMM 1
DIMM 0
Channel A
DIMM 1
DIMM 0
Channel B

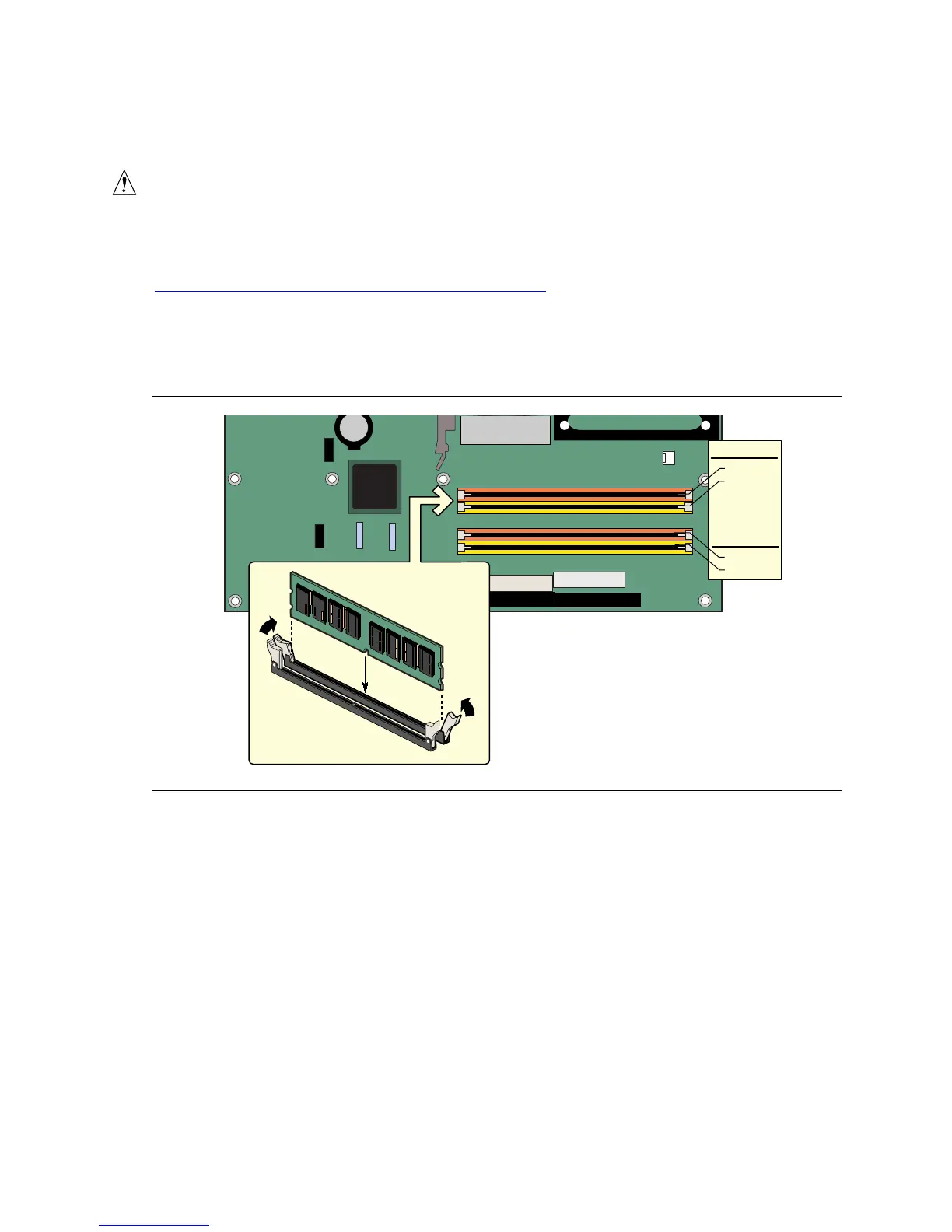

Figure 7. Installing a Memory Module
